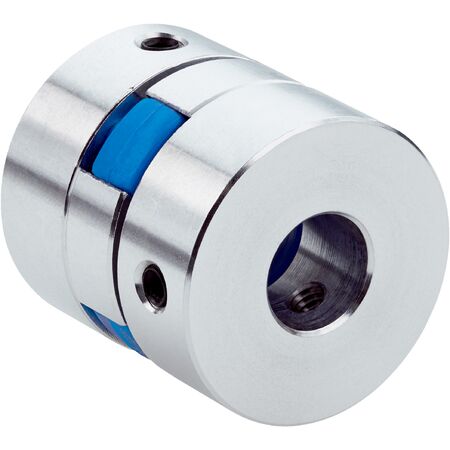

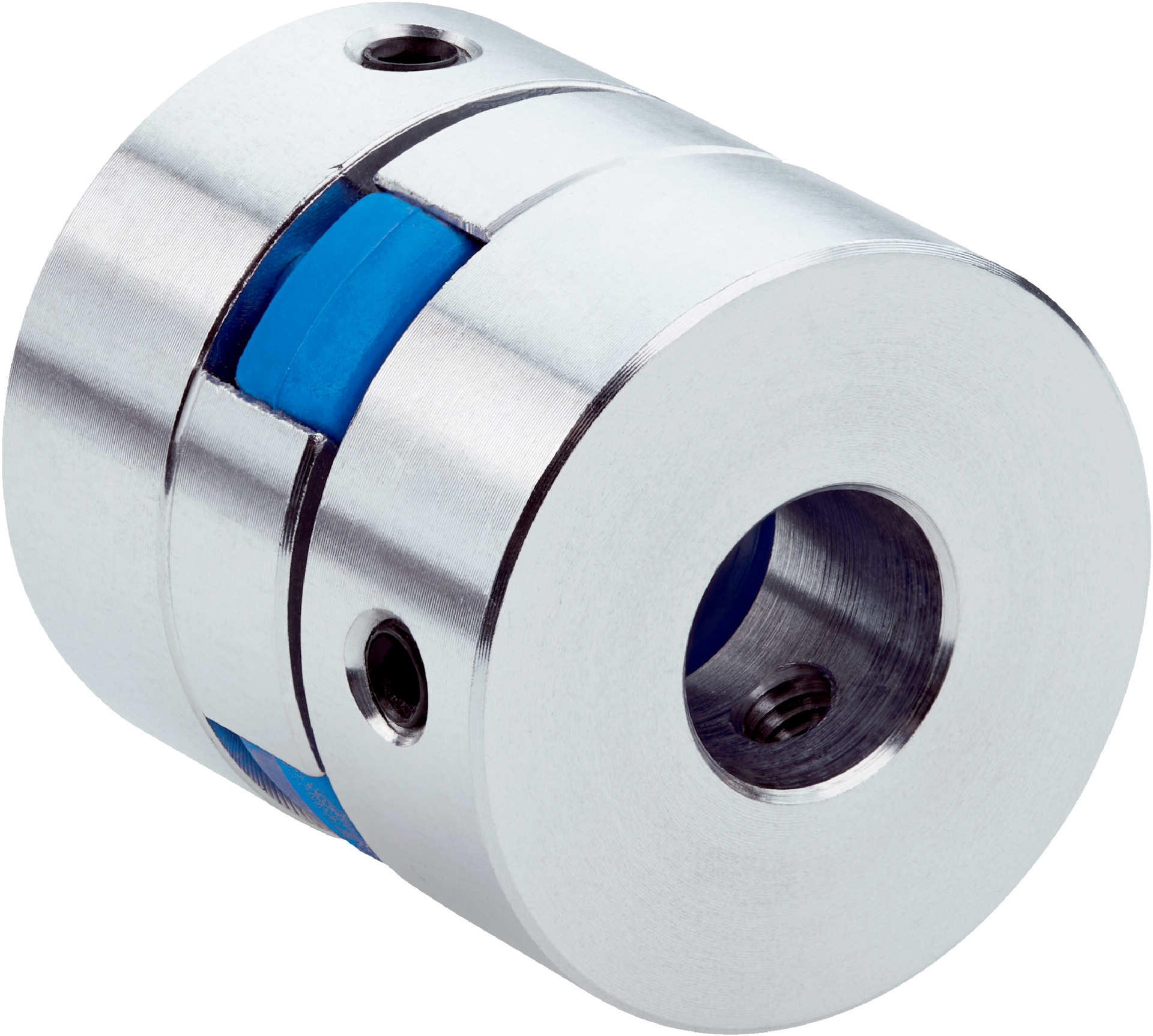

Shaft Coupling 6mm Claw Design | 19,000 RPM Max Speed | 800 Ncm Torque | by SICK

BRAND: SICK
SKU: 2127057
$171.50 List price: $215.60
+ −
30 Days Return Delivery Options
The KUP-0606-J shaft coupling features a reliable claw design with a 6mm diameter, capable of handling maximum speeds up to 19,000 RPM and torque of 800 Ncm. Ideal for mechanical power transmission and automation systems, this coupling is built with durable aluminum and an 80 shore blue polyurethane damping element, ensuring optimal performance in industrial machinery applications.
Technical Specifications
  • Shaft diameter: 6 mm / 6 mm
  • Damping element hardness: 80 shore blue polyurethane
  • Maximum shaft offset: radial ±0.22 mm, axial ±1 mm, angular ±1.3°
  • Maximum speed: 19,000 rpm
  • Maximum torque: 800 Ncm
  • Operating temperature range: -30 °C to +80 °C
  • Material: Aluminum flange with polyurethane damping element
  • Tightening torque of screws: ISO 4029 150 Ncm
  • Dimensions (H x L x W): 40mm x 40mm x 40mm
  • Weight: 0.1 kg
Key Features
  • Claw coupling design for reliable shaft connection
  • Shaft diameter 6 mm / 6 mm
  • Damping element made of 80 shore blue polyurethane
  • Maximum shaft offset: radial ±0.22 mm, axial ±1 mm, angular ±1.3°
  • Maximum speed up to 19,000 rpm
  • Maximum torque 800 Ncm
  • Operating temperature range from -30 °C to +80 °C
  • Aluminum flange material for durability
  • Tightening torque of screws according to ISO 4029: 150 Ncm
Professional Installation Requirements
  • Installation by qualified mechanical technicians is recommended to ensure proper shaft alignment and torque settings.
Applications
  • Mechanical power transmission
  • Shaft adaptation in industrial machinery
  • Automation and robotics systems
Standards & Compliance
  • AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
  • Durable materials reduce replacement frequency and waste
  • Compliant with China-RoHS for reduced hazardous substances
Warranty Information

Standard manufacturer warranty applies. Please refer to SICK's warranty policy for details.

Available Now

The SICK KUP-0606-J claw shaft coupling is available for immediate purchase, ideal for industrial and automation shaft adaptation applications.
