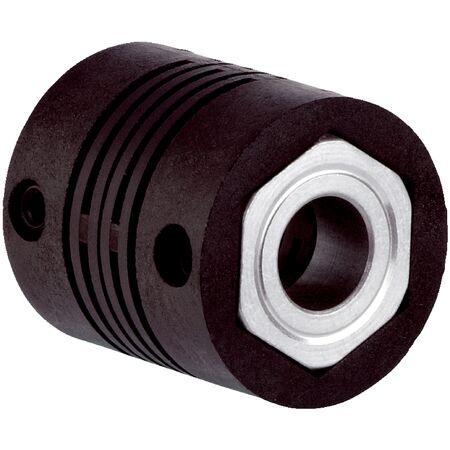

Shaft Coupling 8mm | Maximum Speed 10,000 RPM | Torsion Spring Rigidity 38 Nm | by SICK

BRAND: SICK
SKU: 5314177
$48.90 List price: $61.50
+ −
30 Days Return Delivery Options
The KUP-0808-S shaft coupling is designed for precise shaft alignment in industrial machinery, featuring an 8mm diameter and a maximum speed of 10,000 RPM. Built with fiber-glass reinforced polyamide and an aluminum hub, it ensures reliable torque transmission and operates efficiently within a temperature range of -10° to +80 °C. Ideal for automation and drive systems, this coupling is perfect for applications requiring high performance and durability.
Technical Specifications
  • Shaft diameter: 8 mm / 8 mm
  • Maximum shaft offset: radial ±0.3 mm, axial ±0.2 mm, angular ±3°
  • Maximum speed: 10,000 rpm
  • Torsion spring rigidity: 38 Nm/wheel
  • Material: fiber-glass reinforced polyamide, aluminum hub
  • Operating temperature: -10° to +80 °C
  • Maximum torque: 80 Ncm
  • Dimensions (H x L x W): 20mm x 40mm x 40mm
  • Weight: 0.1 kg
Key Features
  • Bar coupling for shaft diameter 8 mm / 8 mm
  • Maximum shaft offset: radial ±0.3 mm, axial ±0.2 mm, angular ±3°
  • Maximum speed up to 10,000 rpm
  • Torsion spring rigidity of 38 Nm/wheel
  • Material: fiber-glass reinforced polyamide with aluminum hub
  • Operating temperature range from -10° to +80 °C
  • Maximum torque 80 Ncm
Professional Installation Requirements
  • Installation by a qualified technician or engineer is recommended to ensure proper shaft alignment and secure coupling.
Applications
  • Mechanical shaft coupling for industrial machinery
  • Shaft adaptation in automation and drive systems
  • Use in equipment requiring precise shaft alignment and torque transmission
Standards & Compliance
  • Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
  • Durable materials reduce replacement frequency and waste
  • Lightweight design contributes to energy-efficient machinery operation
Warranty Information

Standard manufacturer warranty applies. Please refer to SICK's warranty policy for details.

Available Now

The SICK KUP-0808-S shaft coupling is available for immediate purchase, ideal for industrial and automation shaft adaptation applications.
