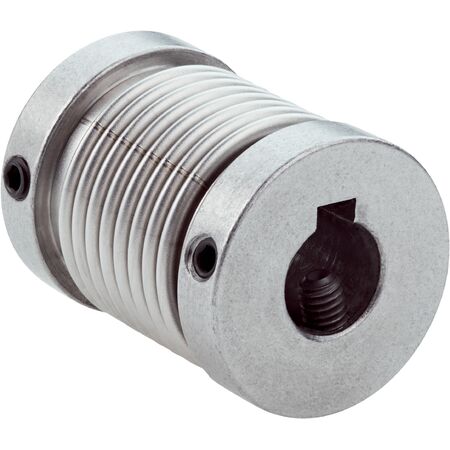

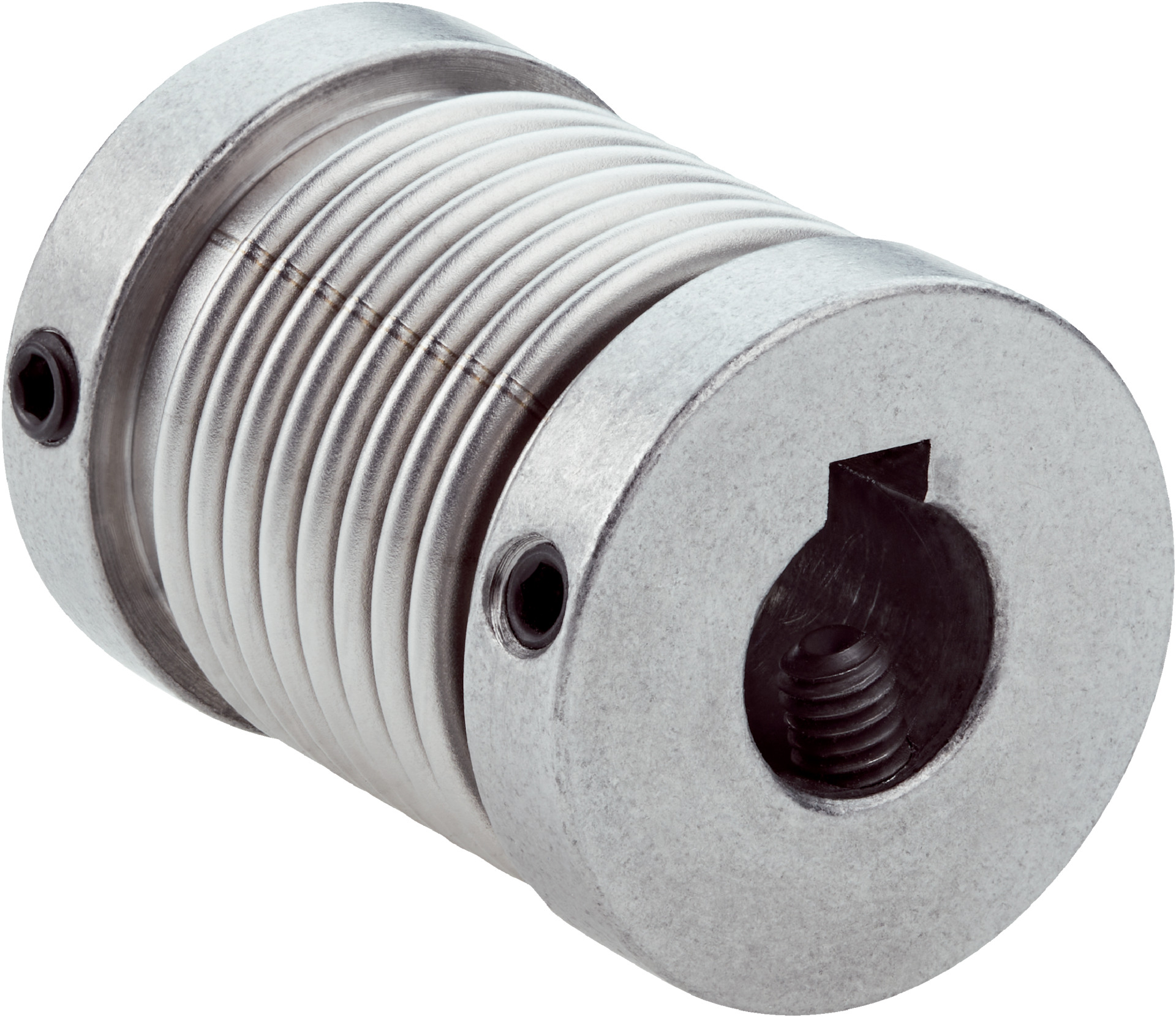

Shaft Coupling KUP-0606-BJ | Bellows & Claw Design | Max Speed 10,000 RPM | Emergency Running Feature | by SICK
The KUP-0606-BJ shaft coupling is designed for industrial machinery, featuring a unique combination of bellows and claw coupling for reliable performance. With a maximum speed of 10,000 RPM and an operating temperature range of -30° to +120 °C, it ensures optimal power transmission and emergency backup capabilities. Ideal for mechanical power transmission systems, this coupling minimizes downtime and enhances equipment longevity.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Shaft diameter: 6 mm / 6 mm
- Max shaft offset: radial ±0.3 mm, axial ±0.45 mm, angular ±3°
- Max speed: 10,000 rpm
- Operating temperature: -30° to +120 °C
- Max torque: 200 Ncm
- Material: stainless steel bellows and flange
- Torsion spring stiffness: 183 Nm/rad
- Radial spring stiffness: 17.8 N/mm
- Moment of inertia: 9.1 gcm²
- Shaft insertion depth: min 6 mm, max 11 mm
- Hubs with feather keyways DIN6885 3/4 mm
- Dimensions (H x L x W): 60mm x 60mm x 60mm
- Weight: 0.1 kg
Key Features
- Combination coupling: bellows and claw coupling
- Emergency running property in case of bellows fracture
- Maximum shaft offset: radial ±0.3 mm, axial ±0.45 mm, angular ±3°
- Max speed: 10,000 rpm
- Temperature range: -30° to +120 °C
- Max torque: 200 Ncm
- Material: stainless steel bellows and flange
- Torsion spring stiffness: 183 Nm/rad
- Radial spring stiffness: 17.8 N/mm
- Moment of inertia: 9.1 gcm²
- Shaft insertion depth: min 6 mm, max 11 mm
- Hubs with feather keyways DIN6885 3/4 mm
Professional Installation Requirements
- Installation by qualified mechanical technician recommended to ensure proper shaft alignment and coupling fitment.
Applications
- Industrial machinery shaft adaptation
- Mechanical power transmission systems
- Emergency backup coupling in rotating equipment
Standards & Compliance
- AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Durable stainless steel construction extends product life and reduces waste
- Emergency running feature prevents downtime and reduces equipment damage
Warranty Information
Standard manufacturer warranty applies; replace coupling immediately after bellows fracture.
Available Now
The SICK KUP-0606-BJ shaft coupling is available for immediate purchase, ideal for industrial shaft adaptation and emergency running applications.
