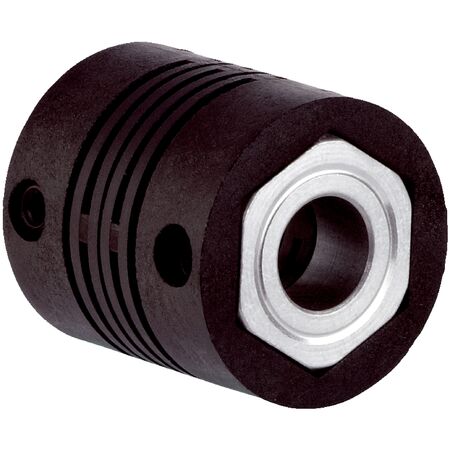

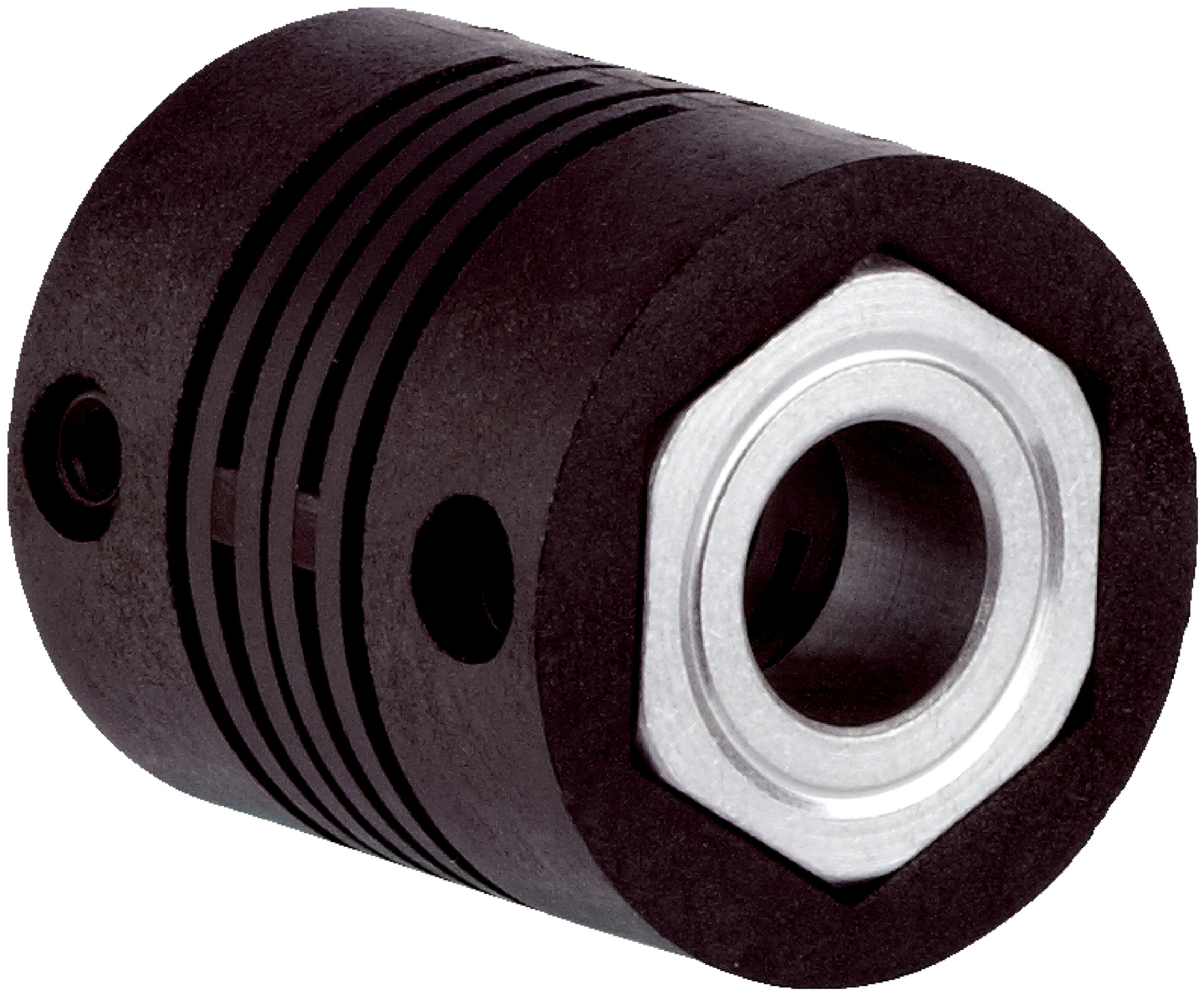

Shaft Coupling KUP-0608-S | 6mm & 8mm Compatibility | 10,000 RPM Max Speed | by SICK

BRAND: SICK
SKU: 5314179
$48.90 List price: $61.50
+ −
30 Days Return Delivery Options
The KUP-0608-S shaft coupling is designed for mechanical shaft adaptation, compatible with 6 mm and 8 mm diameters. With a maximum speed of 10,000 rpm and a torsion spring rigidity of 38 Nm per wheel, it ensures precise alignment in industrial automation applications. Built from fiber-glass reinforced polyamide and aluminum, it operates efficiently within -10° to +80 °C, making it ideal for various machinery requiring compensation for shaft misalignment.
Technical Specifications
  • Shaft diameter compatibility: 6 mm and 8 mm
  • Maximum shaft offset: radial ±0.3 mm, axial ±0.2 mm, angular ±3°
  • Maximum rotational speed: 10,000 rpm
  • Torsion spring rigidity: 38 Nm per wheel
  • Maximum torque: 80 Ncm
  • Material composition: fiber-glass reinforced polyamide and aluminum hub
  • Operating temperature range: -10° to +80 °C
  • Dimensions (H x L x W): 20mm x 40mm x 40mm
  • Weight: 0.1 kg
Key Features
  • Bar coupling for shaft diameters 6 mm and 8 mm
  • Maximum shaft offset: radial ±0.3 mm, axial ±0.2 mm, angular ±3°
  • Maximum speed up to 10,000 rpm
  • Torsion spring rigidity of 38 Nm/wheel
  • Material: fiber-glass reinforced polyamide with aluminum hub
  • Operating temperature range from -10° to +80 °C
  • Maximum torque 80 Ncm
Professional Installation Requirements
  • Installation should be performed by qualified maintenance personnel or mechanical engineers to ensure proper alignment and secure fitting.
Applications
  • Mechanical shaft adaptation in industrial automation
  • Coupling shafts in machinery requiring precise alignment
  • Applications requiring compensation for shaft misalignment
Standards & Compliance
  • Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
  • Durable materials reduce replacement frequency and waste
  • Lightweight design contributes to energy-efficient machinery operation
Warranty Information

Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.

Available Now

The SICK KUP-0608-S shaft coupling is available for immediate purchase, ideal for industrial and mechanical shaft adaptation applications.
