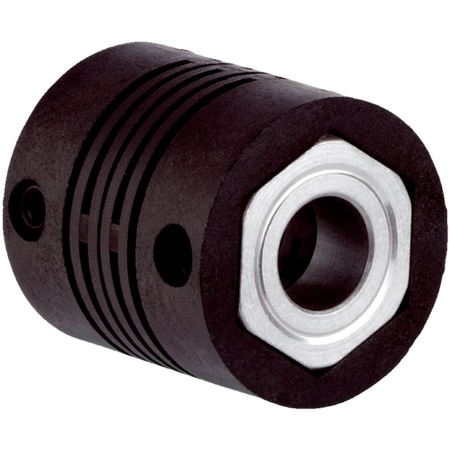

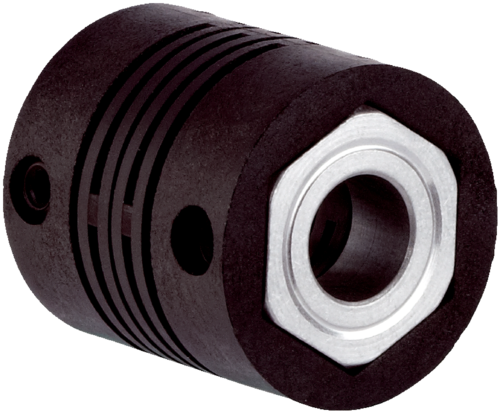

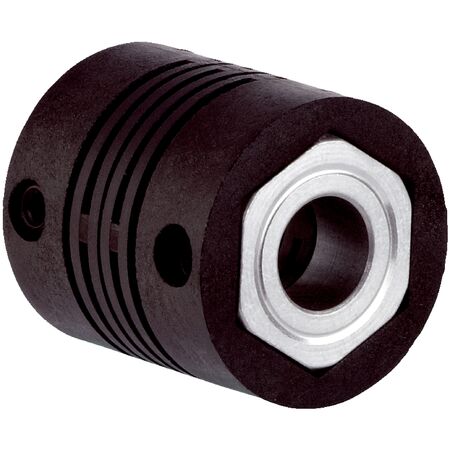

Shaft Coupling KUP-0608-S 6mm & 8mm Compatibility 10,000 RPM Max Speed SICK
The KUP-0608-S shaft coupling is designed for mechanical shaft adaptation, compatible with 6 mm and 8 mm diameters.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Shaft diameter compatibility: 6 mm and 8 mm
- Maximum shaft offset: radial ±0.3 mm, axial ±0.2 mm, angular ±3°
- Maximum rotational speed: 10,000 rpm
- Torsion spring rigidity: 38 Nm per wheel
- Maximum torque: 80 Ncm
- Material composition: fiber-glass reinforced polyamide and aluminum hub
- Operating temperature range: -10° to +80 °C
- Dimensions (H x L x W): 20mm x 40mm x 40mm
- Weight: 0.1 kg
Key Features
- Bar coupling for shaft diameters 6 mm and 8 mm
- Maximum shaft offset: radial ±0.3 mm, axial ±0.2 mm, angular ±3°
- Maximum speed up to 10,000 rpm
- Torsion spring rigidity of 38 Nm/wheel
- Material: fiber-glass reinforced polyamide with aluminum hub
- Operating temperature range from -10° to +80 °C
- Maximum torque 80 Ncm
Professional Installation Requirements
- Installation should be performed by qualified maintenance personnel or mechanical engineers to ensure proper alignment and secure fitting.
Applications
- Mechanical shaft adaptation in industrial automation
- Coupling shafts in machinery requiring precise alignment
- Applications requiring compensation for shaft misalignment
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable materials reduce replacement frequency and waste
- Lightweight design contributes to energy-efficient machinery operation
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK KUP-0608-S shaft coupling is available for immediate purchase, ideal for industrial and mechanical shaft adaptation applications.
