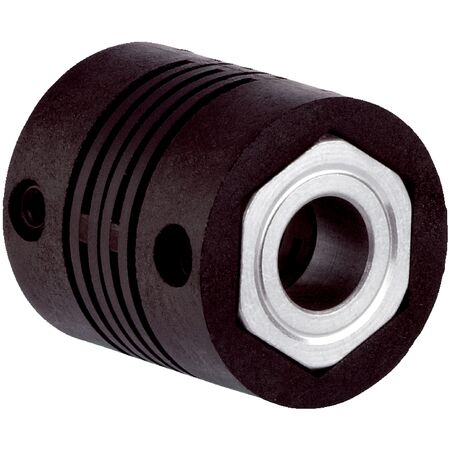

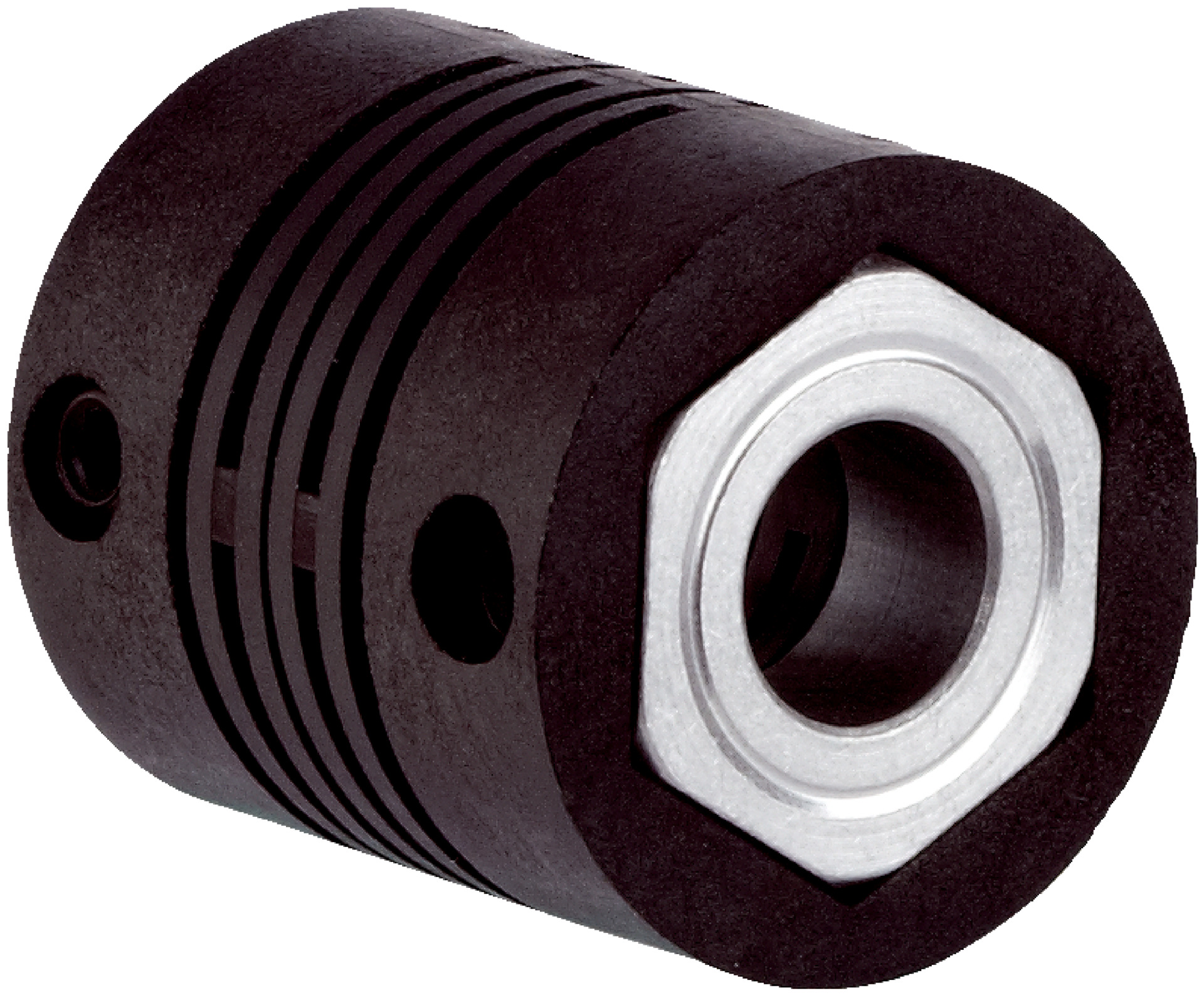

Shaft Coupling KUP-0610-S | 6mm & 10mm Diameter | 10,000 RPM Max Speed | 80 Ncm Torque | by SICK
The KUP-0610-S shaft coupling is designed for mechanical shaft adaptation in industrial automation, accommodating shaft diameters of 6 mm and 10 mm. With a maximum speed of 10,000 rpm and a torque capacity of 80 Ncm, it ensures precise torque transmission and compensates for shaft misalignment, making it ideal for various machinery applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Shaft diameter: 6 mm / 10 mm
- Max. shaft offset: radial ±0.3 mm, axial ±0.3 mm, angular ±3°
- Max. speed: 10,000 rpm
- Operating temperature: -10° to +80 °C
- Max. torque: 80 Ncm
- Material: fiber-glass reinforced polyamide, aluminum hub
- Torsional spring stiffness: 38 Nm/rad
- Radial spring stiffness: 115 N/mm
- Moment of inertia: 7 gcm²
- Max. clamping torque: 150 Ncm
- Dimensions (H x L x W): 20mm x 50mm x 30mm
- Weight: 0.1 kg
Key Features
- Bar coupling for shaft diameters 6 mm and 10 mm
- Maximum shaft offset: radial ±0.3 mm, axial ±0.3 mm, angular ±3°
- Maximum speed up to 10,000 rpm
- Operating temperature range from -10° to +80 °C
- Maximum torque capacity of 80 Ncm
- Material: fiber-glass reinforced polyamide with aluminum hub
- Torsional spring stiffness of 38 Nm/rad
- Radial spring stiffness of 115 N/mm
- Moment of inertia: 7 gcm²
- Maximum clamping torque: 150 Ncm
Professional Installation Requirements
- Installation by qualified mechanical technician recommended to ensure proper shaft alignment and torque settings.
Applications
- Mechanical shaft adaptation in industrial automation
- Coupling shafts in machinery requiring precise torque transmission
- Applications requiring compensation for shaft misalignment
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable materials reduce replacement frequency and waste
- Lightweight design contributes to energy-efficient machinery operation
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK KUP-0610-S shaft coupling is available for immediate purchase, ideal for industrial and automation machinery requiring reliable shaft adaptation.
