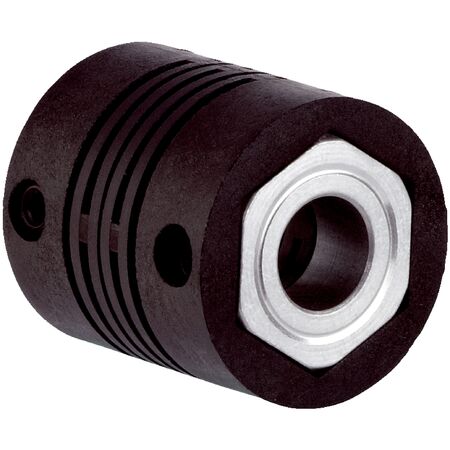

Shaft Coupling KUP-0610-S 6mm & 10mm Diameter 10,000 RPM Max Speed SICK

BRAND: SICK
SKU: 2056407
$51.40 List price: $64.60
+ −
30 Days Return Electricians Unlock Trade Access
The KUP-0610-S shaft coupling is designed for mechanical shaft adaptation in industrial automation, accommodating shaft diameters of 6 mm and 10 mm.
Technical Specifications
  • Shaft diameter: 6 mm / 10 mm
  • Max. shaft offset: radial ±0.3 mm, axial ±0.3 mm, angular ±3°
  • Max. speed: 10,000 rpm
  • Operating temperature: -10° to +80 °C
  • Max. torque: 80 Ncm
  • Material: fiber-glass reinforced polyamide, aluminum hub
  • Torsional spring stiffness: 38 Nm/rad
  • Radial spring stiffness: 115 N/mm
  • Moment of inertia: 7 gcm²
  • Max. clamping torque: 150 Ncm
  • Dimensions (H x L x W): 20mm x 50mm x 30mm
  • Weight: 0.1 kg
Key Features
  • Bar coupling for shaft diameters 6 mm and 10 mm
  • Maximum shaft offset: radial ±0.3 mm, axial ±0.3 mm, angular ±3°
  • Maximum speed up to 10,000 rpm
  • Operating temperature range from -10° to +80 °C
  • Maximum torque capacity of 80 Ncm
  • Material: fiber-glass reinforced polyamide with aluminum hub
  • Torsional spring stiffness of 38 Nm/rad
  • Radial spring stiffness of 115 N/mm
  • Moment of inertia: 7 gcm²
  • Maximum clamping torque: 150 Ncm
Professional Installation Requirements
  • Installation by qualified mechanical technician recommended to ensure proper shaft alignment and torque settings.
Applications
  • Mechanical shaft adaptation in industrial automation
  • Coupling shafts in machinery requiring precise torque transmission
  • Applications requiring compensation for shaft misalignment
Standards & Compliance
  • Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
  • Durable materials reduce replacement frequency and waste
  • Lightweight design contributes to energy-efficient machinery operation
Warranty Information

Standard manufacturer warranty applies; please refer to SICK's official warranty policy.

Available Now

The SICK KUP-0610-S shaft coupling is available for immediate purchase, ideal for industrial and automation machinery requiring reliable shaft adaptation.
