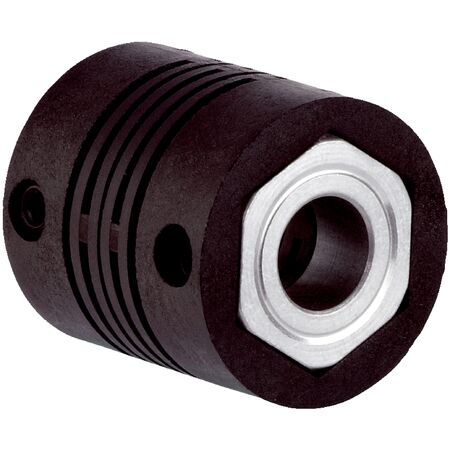

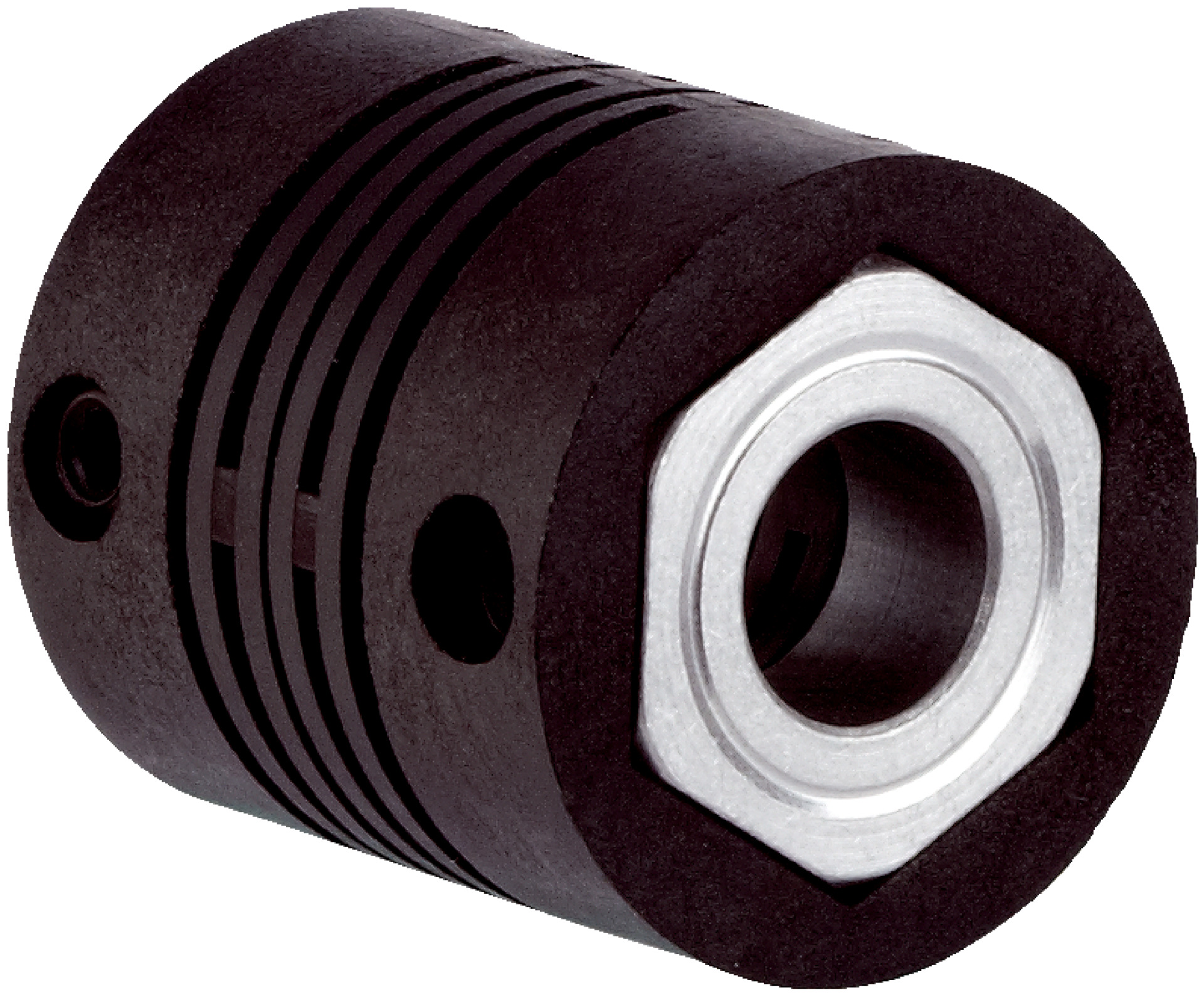

Shaft Coupling KUP-0810-S | 8mm to 10mm Diameter | Max Speed 10,000 RPM | Fiber-Glass Reinforced | by SICK

BRAND: SICK
SKU: 5314178
$48.90 List price: $61.50
+ −
30 Days Return Delivery Options
The KUP-0810-S shaft coupling is designed for mechanical shaft adaptation, accommodating diameters of 8mm to 10mm. With a maximum speed of 10,000 RPM and a torque capacity of 80 Ncm, this coupling is perfect for high-speed rotating equipment. Constructed from fiber-glass reinforced polyamide, it ensures durability and reliability in industrial applications, making it ideal for coupling shafts with slight misalignment.
Technical Specifications
  • Shaft diameter: 8 mm / 10 mm
  • Max shaft offset: radial ±0.3 mm, axial ±0.3 mm, angular ±3°
  • Max speed: 10,000 rpm
  • Operating temperature: -10° to +80 °C
  • Max torque: 80 Ncm
  • Material: fiber-glass reinforced polyamide, aluminum hub
  • Dimensions (H x L x W): 20mm x 50mm x 50mm
  • Weight: 0.1 kg
Key Features
  • Bar coupling for shaft diameters 8 mm and 10 mm
  • Maximum shaft offset: radial ±0.3 mm, axial ±0.3 mm, angular ±3°
  • Maximum speed up to 10,000 rpm
  • Operating temperature range from -10° to +80 °C
  • Maximum torque capacity of 80 Ncm
  • Constructed from fiber-glass reinforced polyamide with aluminum hub
Professional Installation Requirements
  • Installation by a qualified technician or engineer is recommended to ensure proper shaft alignment and secure coupling.
Applications
  • Mechanical shaft adaptation in industrial machinery
  • Coupling shafts with slight misalignment
  • High-speed rotating equipment up to 10,000 rpm
Standards & Compliance
  • Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
  • Durable materials reduce replacement frequency and waste
  • Lightweight design contributes to energy-efficient machinery operation
Warranty Information

Standard manufacturer warranty applies. Please refer to SICK's warranty policy for details.

Available Now

The SICK KUP-0810-S shaft coupling is available for immediate purchase, ideal for industrial shaft adaptation and mechanical coupling applications.
