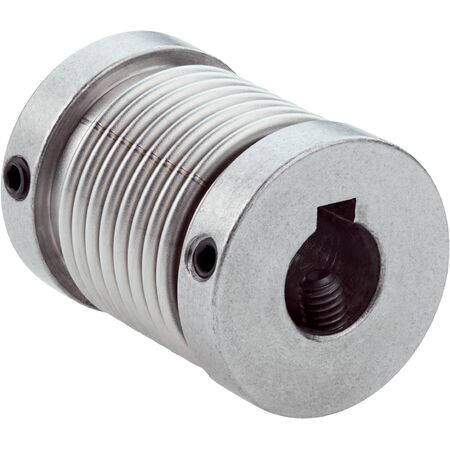

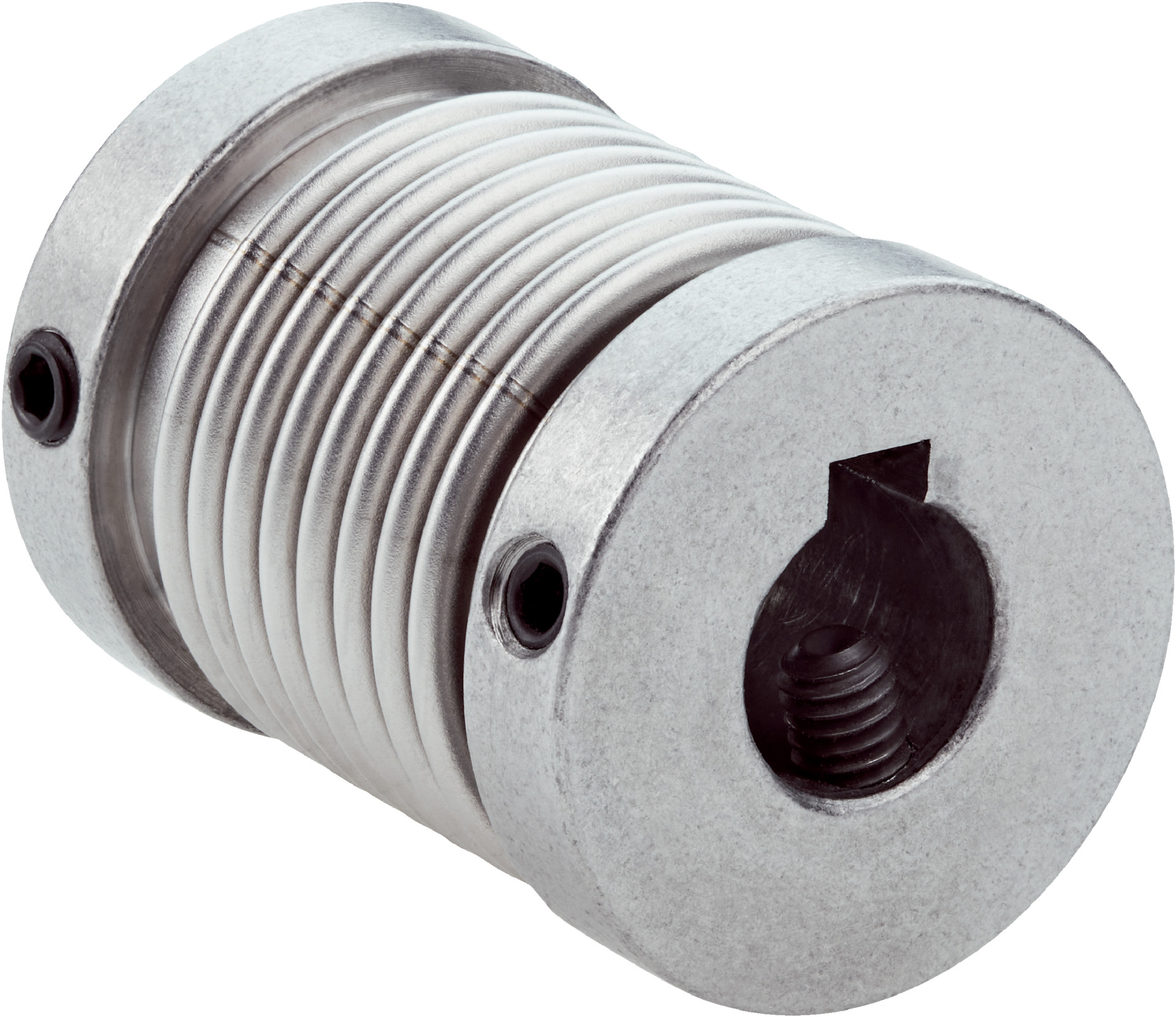

Shaft Coupling KUP-1010-BJ | Bellows & Claw Design | 10,000 RPM Max Speed | Emergency Running Property | by SICK

BRAND: SICK
SKU: 2124992
$262.50 List price: $329.90
+ −
30 Days Return Delivery Options
The KUP-1010-BJ shaft coupling is engineered for industrial machinery, featuring a unique combination of bellows and claw design for optimal performance. With a maximum speed of 10,000 RPM and a temperature range of -30° to +120°C, it ensures reliable power transmission and emergency operation in case of bellows fracture. Ideal for mechanical power transmission systems, this coupling is built to withstand demanding applications.

Product Name/Title: Shaft Coupling KUP-1010-BJ | Bellows & Claw Design | 10,000 RPM Max Speed | Emergency Running Property | by SICK

Brand: SICK

SKU: 2124992

Alternatively Known As: Shaft coupling, bellows coupling, claw coupling, emergency shaft coupling

Technical Specifications
  • Shaft diameter: 10 mm / 10 mm
  • Maximum shaft offset: radial ±0.3 mm, axial ±0.45 mm, angular ±3°
  • Maximum speed: 10,000 rpm
  • Temperature range: -30° to +120 °C
  • Maximum torque: 200 Ncm
  • Material: stainless steel bellows and flange
  • Torsion spring stiffness: 183 Nm/rad
  • Radial spring stiffness: 17.8 N/mm
  • Moment of inertia: 9.1 gcm²
  • Shaft insertion depth: min 6 mm, max 11 mm
  • Hubs with feather keyways DIN6885 3/4 mm
  • Dimensions (H x L x W): 50mm x 50mm x 50mm
  • Weight: 0.1 kg
Key Features
  • Combination coupling: bellows and claw coupling
  • Emergency running property in case of bellows fracture
  • Maximum shaft offset: radial ±0.3 mm, axial ±0.45 mm, angular ±3°
  • Max speed 10,000 rpm
  • Temperature range: -30° to +120 °C
  • Max torque 200 Ncm
  • Material: stainless steel bellows and flange
  • Torsion spring stiffness of 183 Nm/rad
  • Radial spring stiffness of 17.8 N/mm
  • Moment of inertia 9.1 gcm²
  • Shaft insertion depth: min 6 mm, max 11 mm
  • Hubs with feather keyways DIN6885 3/4 mm
Professional Installation Requirements
  • Installation by qualified mechanical technician recommended to ensure proper shaft alignment and coupling fitment.
Applications
  • Industrial machinery shaft adaptation
  • Mechanical power transmission systems
  • Emergency rotation applications in shaft couplings
Standards & Compliance
  • AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
  • Durable stainless steel construction reduces waste and replacement frequency
  • Emergency running property prevents machinery downtime and potential damage
Warranty Information

Standard manufacturer warranty applies; replace coupling immediately after bellows fracture.

Available Now

The SICK KUP-1010-BJ shaft coupling is available for immediate purchase, ideal for industrial shaft adaptation and emergency rotation applications.
