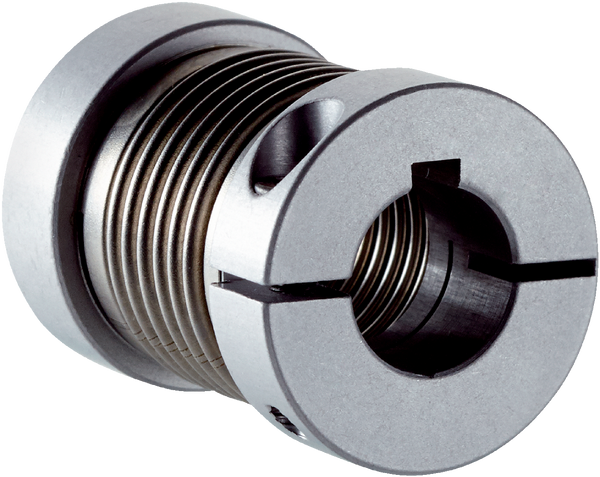

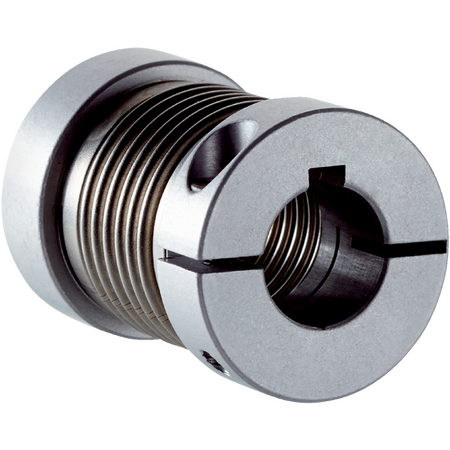

Shaft Coupling KUP-1015-B 10 mm 15 mm Adaptation 10,000 RPM SICK

BRAND: SICK
SKU: 5319859
$169.10 List price: $212.60
+ −
30 Days Return Electricians Unlock Trade Access
The KUP-1015-B shaft coupling is designed for seamless adaptation between 10 mm and 15 mm shafts, making it ideal for industrial machinery and automation systems.
Technical Specifications
  • Shaft sizes: 10 mm / 15 mm
  • Maximum shaft offset: radial +/- 0.25 mm, axial +/- 0.4 mm, angular +/- 4°
  • Maximum revolutions: 10,000 rpm
  • Operating temperature: -30° to +120 °C
  • Maximum torque: 120 Ncm
  • Material: stainless steel bellows, aluminum clamping hubs
  • Dimensions (H x L x W): 20mm x 70mm x 50mm
  • Weight: 0.1 kg
Key Features
  • Shaft adaptation for 10 mm / 15 mm shafts
  • Maximum shaft offset: radial +/- 0.25 mm, axial +/- 0.4 mm, angular +/- 4°
  • Maximum revolutions up to 10,000 rpm
  • Operating temperature range from -30° to +120 °C
  • Maximum torque capacity of 120 Ncm
  • Constructed with stainless steel bellows and aluminum clamping hubs
Professional Installation Requirements
  • Installation by a qualified technician or engineer is recommended to ensure proper alignment and secure fitting.
Applications
  • Industrial machinery shaft adaptation
  • Mechanical power transmission
  • Automation and control systems
Standards & Compliance
  • Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
  • Durable materials reduce the need for frequent replacements, minimizing waste
  • Efficient torque transmission reduces energy loss in mechanical systems
Warranty Information

Standard manufacturer warranty applies. Please refer to SICK's warranty policy for details.

Available Now

The SICK KUP-1015-B shaft coupling is available for immediate purchase, ideal for industrial and automation shaft adaptation applications.
