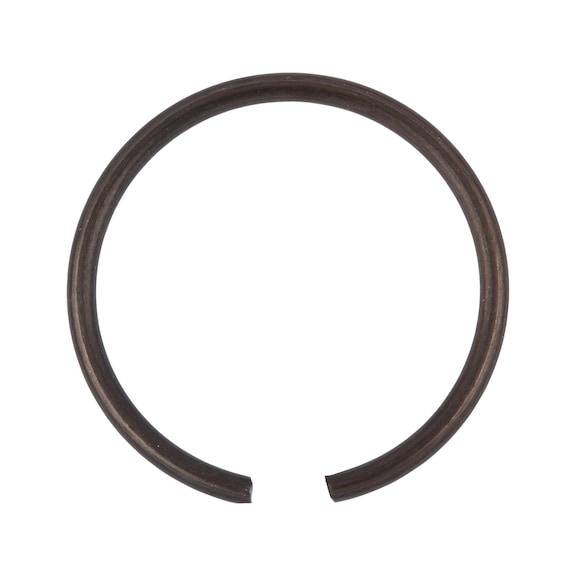

Shaft Securing Ring AF 5 | 5 mm Diameter | Steel Material | RoHS Compliant | by Wurth
The Shaft Securing Ring AF 5 is designed for secure fastening in mechanical assemblies, suitable for shafts with a 5 mm diameter and a groove diameter of 4.8 mm. Made from durable steel and RoHS-compliant, this circlip ensures reliable performance in industrial machinery and automotive applications, making it an essential component for technicians and engineers.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Shaft Securing Ring AF 5 | 5 mm Diameter | Steel Material | RoHS Compliant | by Wurth
Brand: Wurth
SKU: 49099005
Alternatively Known As: shaft securing ring, retaining ring, circlip, snap ring
Technical Specifications
- Type: AF 5
- Suitable for shafts: 5 mm
- Suitable for groove diameter: 4.8 mm
- Internal diameter (d1): 4.7 mm
- Width (b1): 1 mm
- Thickness (s1): 0.5 mm
- Standards: WN 490
- Form: SW
- Material: Steel
- Surface: Plain
- RoHS-compliant: Yes
- Dimensions (H x L x W): 0.5mm x 5mm x 1mm
- Weight: 0.1 kg
Key Features
- Suitable for shafts of 5 mm diameter
- Fits groove diameter of 4.8 mm
- Internal diameter of 4.7 mm
- Width of 1 mm and thickness of 0.5 mm
- Made of steel with plain surface
- RoHS-compliant for environmental safety
Professional Installation Requirements
- Installation by a qualified technician is recommended to ensure proper fit and secure fastening.
Applications
- Mechanical assemblies requiring secure shaft fixing
- Industrial machinery components
- Automotive and equipment manufacturing
Standards & Compliance
- AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- RoHS-compliant material reduces hazardous substances impact
Warranty Information
Standard manufacturer warranty applies.
Available Now
The Wurth AF 5 securing element is available for immediate purchase, ideal for industrial and mechanical fastening applications.
