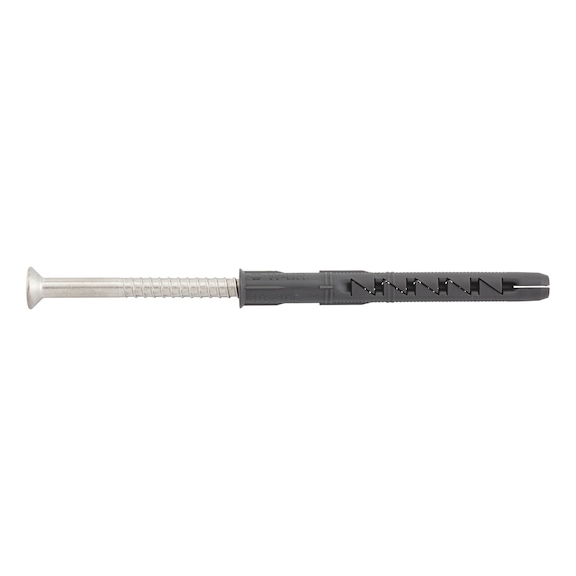

SHARK UR Plastic Frame Fixing | A4 Stainless Steel | 10mm Diameter | Countersunk Head | @Pack of 50 | by Wurth
The SHARK UR Plastic Frame Fixing is designed for universal frame anchoring, featuring a robust A4 stainless steel countersunk head screw with a 10mm diameter. Ideal for construction and building applications, this fixing offers immediate load-bearing capacity and is tested for over 100 building materials, ensuring reliable performance in concrete and masonry.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: SHARK UR Plastic Frame Fixing | A4 Stainless Steel | 10mm Diameter | Countersunk Head | @Pack of 50 | by Wurth
Brand: Wurth
SKU: 5912810504
Alternatively Known As: Plastic Frame Anchor, Universal Frame Fixing, SHARK UR Anchor, Countersunk Head Screw Anchor
Technical Specifications
- Anchor diameter: 10 mm
- Anchor length: 135 mm
- Max. attachment height: 65 mm
- Nominal drill-bit diameter: 10 mm
- Through-hole diameter: 10.5 mm
- Fire resistance rating: F30
- Screw material: Stainless steel A4
- Internal drive: AW40
- Screw surface: Plain
- Head type: Countersunk head
- Drill hole depth: 80 mm
- Approval: ETA-08/0190
- Type description: W-UR 10 A4, countersunk head screw
- Dimensions (H x L x W): 135mm x 135mm x 10mm
- Weight: 0.5 kg
Key Features
- Special anchor geometry with immediate load-bearing capacity
- Tested and approved for more than 100 proven building materials
- Expansion in four directions with friction locking for high working loads
- High-quality polyamide anchor sleeve with strong anti-rotation lock
- Pre-assembled anchor sleeve and special screw for quick installation
- Hammer-in stop prevents premature expansion during installation
- Two embedment depths for defined building materials
- Fire resistance rating F30
Professional Installation Requirements
- Professional installation by qualified personnel is recommended to ensure proper anchoring and compliance with building standards.
Applications
- Universal frame fixing for over 100 building materials
- Suitable for concrete and masonry with fire behavior assessment
- Ideal for construction and building anchoring needs
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Durable materials reduce the need for frequent replacements
- High-quality polyamide and stainless steel components ensure long service life
- Efficient installation reduces waste and energy consumption on site
Warranty Information
Warranty details available upon request from Wurth; typically includes coverage against manufacturing defects.
Available Now
The Wurth SHARK UR Plastic Frame Fixing with A4 Stainless Steel Countersunk Head Screw 50 PCS is available for immediate purchase, ideal for construction and building anchoring applications.
