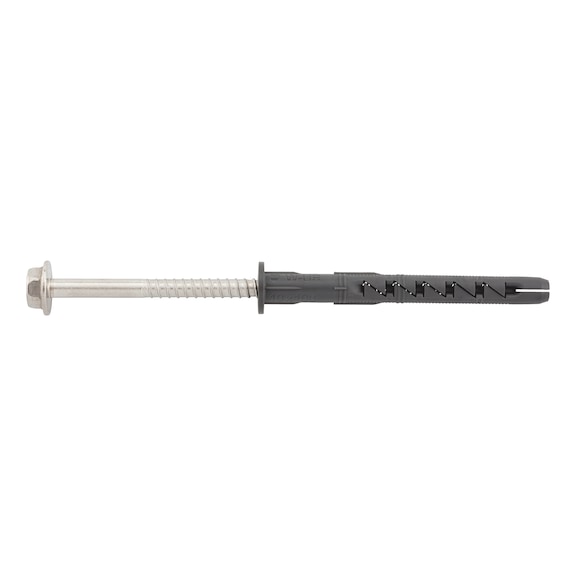

SHARK UR Plastic Frame Fixing | A4 Stainless Steel Hexagon Head Bolt | Universal Anchor | Fire Resistance F30 | @Pack of 40 | by Wurth
SHARK UR Plastic Frame Fixing is designed for reliable frame anchoring in concrete and masonry, featuring an A4 stainless steel hexagon head bolt and a fire resistance rating of F30. Ideal for construction professionals, this universal anchor ensures immediate load-bearing capacity and is tested for compatibility with over 100 building materials, making it a versatile choice for various applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: SHARK UR Plastic Frame Fixing | A4 Stainless Steel Hexagon Head Bolt | Universal Anchor | Fire Resistance F30 | @Pack of 40 | by Wurth
Brand: Wurth
SKU: 5912810701
Alternatively Known As: Plastic Frame Anchor, SHARK UR Anchor, Stainless Steel Hex Bolt Fixing, Frame Fixing Anchor
Technical Specifications
- Anchor diameter: 10 mm
- Anchor length: 80 mm
- Max. attachment height: 10 mm
- Nominal drill-bit diameter: 10 mm
- Through-hole diameter: 10.5 mm
- Fire resistance rating: F30
- Material of screw: Stainless steel A4
- Surface of screw: Plain
- Head type: Countersunk head
- Drill hole depth: 80 mm
- Approval: ETA-08/0190
- Type description: W-UR F 10 A4, hexagonal bolt
- Dimensions (H x L x W): 80mm x 10.5mm x 10mm
- Weight: 0.5 kg
Key Features
- Universal frame fixing with special anchor geometry
- Immediate load-bearing capacity with ETA assessment
- Tested for over 100 building materials
- High working loads due to expansion in four directions
- Anchor sleeve made of high-quality polyamide
- Strong anti-rotation lock and hammer-in stop to prevent premature expansion
- Pre-assembled anchor sleeve and special screw for minimal installation work
- Improved load transmission with continuous load transfer across expansion area
- Fire resistance rating F30
Professional Installation Requirements
- Installation should be performed by a qualified professional to ensure correct embedment depth and secure fixing according to building codes.
Applications
- Suitable for fixing frames in concrete and masonry
- Ideal for use with over 100 proven building materials
- Applicable in construction requiring reliable and versatile anchor solutions
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Durable materials reduce the need for frequent replacements
- High-quality polyamide sleeve supports long-term use
- Stainless steel bolt resists corrosion, extending product life
Warranty Information
Warranty against manufacturing defects as per Wurth standard terms and conditions.
Available Now
Wurth SHARK UR Plastic Frame Fixing with A4 Stainless Steel Hexagon Head Bolt 40 PCS is available for immediate purchase, ideal for construction and building applications requiring reliable frame fixing.
