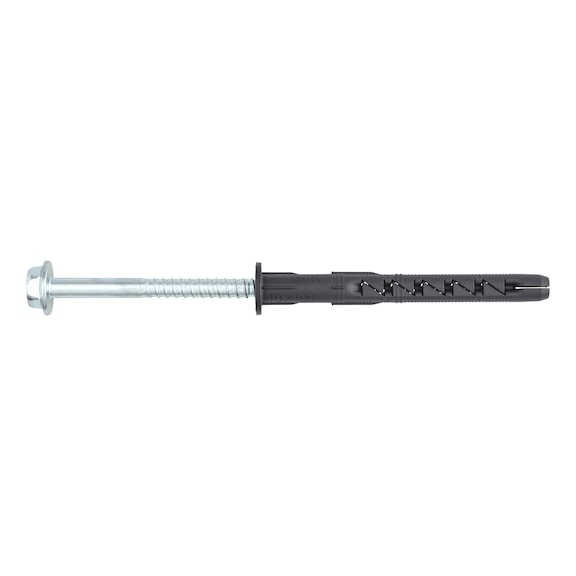

SHARK UR Plastic Frame Fixing | Zinc Plated Steel Hexagon Head Bolt | Universal Frame Fixing | 40 PCS | by Wurth
SHARK UR Plastic Frame Fixing is designed for secure anchorage in various building materials, featuring a zinc plated steel hexagon head bolt for durability. Ideal for construction and renovation projects, this fixing offers immediate load-bearing capacity and is suitable for both residential and commercial applications. With its unique anchor geometry and fire resistance rating of F30, it ensures reliable performance in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: SHARK UR Plastic Frame Fixing | Zinc Plated Steel Hexagon Head Bolt | Universal Frame Fixing | 40 PCS | by Wurth
Brand: Wurth
SKU: 5912810601
Alternatively Known As: Plastic frame anchor, SHARK UR fixing, hex bolt frame fixing, polyamide anchor bolt, zinc plated frame fixing
Technical Specifications
- Anchor diameter: 10 mm
- Anchor length: 80 mm
- Max. attachment height: 10 mm
- Nominal drill-bit diameter: 10 mm
- Through-hole diameter: 10.5 mm
- Fire resistance rating: F30
- Material of screw: Steel
- Internal drive: AW40
- Surface of screw: Zinc plated
- Head type: Hexagon head
- Drill hole depth: 80 mm
- Approval: ETA-08/0190
- Type description: W-UR F 10, hexagonal bolt
- Dimensions (H x L x W): 80mm x 10mm x 10mm
- Weight: 0.5 kg
Key Features
- Universal frame fixing with special anchor geometry
- Immediate load-bearing capacity with ETA assessment for over 100 building materials
- Anchor teeth expand in four directions for optimal anchorage
- Friction locking between anchor sleeve and base material
- High working loads due to four-direction expansion
- Low installation torque and minimal spinning of anchor sleeve
- Anchor sleeve made of high-quality polyamide with strong anti-rotation lock
- Pre-assembled anchor sleeve and special screw for time-saving installation
- Hammer-in stop prevents premature expansion during installation
- Two embedment depths for defined building materials
- Fire resistance rating F30
Professional Installation Requirements
- Installation should be performed by a qualified professional to ensure correct embedment and load-bearing capacity according to ETA guidelines.
Applications
- Suitable for fixing frames in various building materials including concrete and masonry
- Ideal for construction and renovation projects requiring secure anchorage
- Used in residential, commercial, and industrial building applications
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Durable materials reduce the need for frequent replacements
- Efficient installation reduces waste and energy consumption on site
Warranty Information
Wurth provides warranty coverage against manufacturing defects as per company policy.
Available Now
Wurth SHARK UR Plastic Frame Fixing is available for immediate purchase, ideal for secure frame fixing in construction and building applications.
