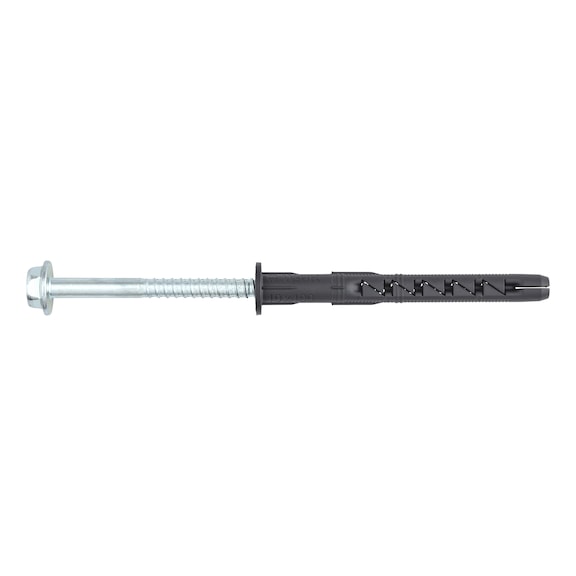

SHARK UR Plastic Frame Fixing | Zinc Plated Steel Hexagon Head Bolt | Universal Frame Fixing | 40 PCS | by Wurth
SHARK UR Plastic Frame Fixing is designed for secure anchorage in various building materials, featuring a zinc plated steel hexagon head bolt for enhanced durability. Ideal for construction and masonry applications, this fixing offers immediate load-bearing capacity and is tested for over 100 different base materials, ensuring reliable performance in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: SHARK UR Plastic Frame Fixing | Zinc Plated Steel Hexagon Head Bolt | Universal Frame Fixing | 40 PCS | by Wurth
Brand: Wurth
SKU: 5912810602
Alternatively Known As: Plastic frame anchor, SHARK UR fixing bolt, Zinc plated hex bolt anchor, Frame fixing anchor, Polyamide anchor bolt
Technical Specifications
- Anchor diameter: 10 mm
- Anchor length: 100 mm
- Max. attachment height: 30 mm
- Nominal drill-bit diameter: 10 mm
- Through-hole diameter: 10.5 mm
- Fire resistance rating: F30
- Material of screw: Steel
- Internal drive: AW40
- Surface of screw: Zinc plated
- Head type: Hexagon head
- Drill hole depth: 80 mm
- Approval: ETA-08/0190
- Type description: W-UR F 10, hexagonal bolt
- Dimensions (H x L x W): 100mm x 10.5mm x 10mm
- Weight: 0.5 kg
Key Features
- Universal frame fixing with special anchor geometry
- Immediate load-bearing capacity with ETA assessment for over 100 building materials
- Tested and approved for 105 different base materials
- Improved safety with expert fire behaviour assessment in concrete and masonry
- Anchor teeth expand in four directions and claw into base material
- Friction locking between anchor sleeve and base material
- High working loads due to four-direction expansion
- Even, continuous load transfer across entire expansion area
- Low installation torque and expansion prevent anchor sleeve spinning
- Anchor sleeve made of high-quality polyamide with strong anti-rotation lock
- Pre-assembled anchor sleeve and special screw for minimal installation work
- Hammer-in stop prevents premature expansion during installation
- Two embedment depths for defined building materials
Professional Installation Requirements
- Professional installation by qualified personnel is recommended to ensure proper embedment and load-bearing performance.
Applications
- Suitable for fixing frames in various building materials
- Ideal for use in concrete and masonry
- Applicable in construction and building projects requiring secure anchorage
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Durable materials reduce the need for frequent replacements
- High load capacity minimizes material waste in construction
- Pre-assembled components reduce installation time and energy use
Warranty Information
Warranty details available upon request from Wurth; typically includes coverage against manufacturing defects.
Available Now
The Wurth SHARK UR Plastic Frame Fixing with zinc plated steel hexagon head bolt 40 PCS is available for immediate purchase, ideal for construction and building applications requiring reliable frame fixing.
