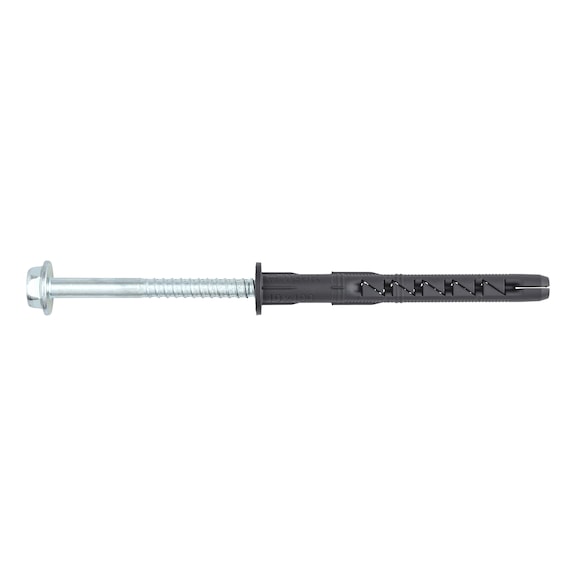

SHARK UR Plastic Frame Fixing | Zinc Plated Steel Hexagon Head Bolt | Universal Anchor | 40 PCS | by Wurth
SHARK UR Plastic Frame Fixing is designed for reliable anchoring in concrete and masonry, featuring a zinc plated steel hexagon head bolt for enhanced durability. Ideal for construction professionals, this fixing solution offers immediate load-bearing capacity and is tested for over 100 building materials, ensuring safety and compliance with building codes.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: SHARK UR Plastic Frame Fixing | Zinc Plated Steel Hexagon Head Bolt | Universal Anchor | 40 PCS | by Wurth
Brand: Wurth
SKU: 5912810604
Alternatively Known As: Plastic frame fixing bolt, SHARK UR anchor, hexagon head fixing bolt, frame fixing anchor, zinc plated fixing bolt
Technical Specifications
- Anchor diameter: 10 mm
- Anchor length: 135 mm
- Max. attachment height: 65 mm
- Nominal drill-bit diameter: 10 mm
- Through-hole diameter: 10.5 mm
- Fire resistance rating: F30
- Screw material: Steel
- Internal drive: AW40
- Screw surface: Zinc plated
- Head type: Hexagon head
- Drill hole depth: 80 mm
- Approval: ETA-08/0190
- Type description: W-UR F 10, hexagonal bolt
- Dimensions (H x L x W): 135mm x 10.5mm x 10mm
- Weight: 1.3 kg
Key Features
- Universal frame fixing with special anchor geometry
- Immediate load-bearing capacity with ETA assessment
- Tested for more than 100 proven and modern building materials
- Diameters 8 and 10 tested and approved for 105 different base materials
- Improved safety with expert fire behaviour assessment in concrete and masonry
- Anchor teeth expand in four directions and claw into base material
- Friction locking between anchor sleeve and base material
- High working loads due to four-direction expansion
- Even, continuous load transfer across entire expansion area
- Low installation torque prevents spinning of anchor sleeve
- Anchor sleeve made of high-quality polyamide with strong anti-rotation lock
- Pre-assembled anchor sleeve and special screw for minimal installation work
- Hammer-in stop prevents premature expansion during installation
- Two embedment depths for defined building materials
Professional Installation Requirements
- Installation should be performed by qualified professionals familiar with anchor fixing systems to ensure safety and compliance with building codes.
Applications
- Fixing frames in concrete and masonry
- Suitable for over 100 building materials
- Construction and building anchorage requiring immediate load-bearing capacity
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Durable materials reduce need for frequent replacements
- High load capacity minimizes material waste in construction
- Polyamide anchor sleeve is recyclable
Warranty Information
Warranty terms as per Wurth standard product warranty policies.
Available Now
The Wurth SHARK UR Plastic Frame Fixing 40 PCS is available for immediate purchase, ideal for construction and building applications requiring reliable frame fixing solutions.
