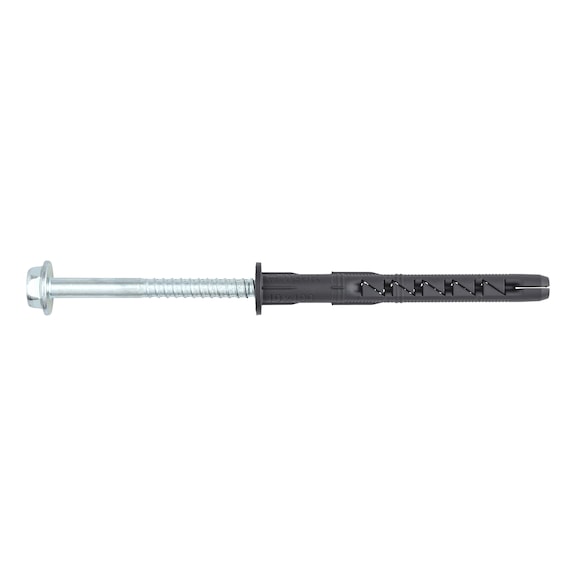

SHARK UR Plastic Frame Fixing | Zinc Plated Steel Hexagon Head Bolt | Universal Frame Fixing | Fire Resistance F30 | @Pack of 40 | by Wurth
SHARK UR Plastic Frame Fixing is designed for reliable anchorage in construction, featuring a zinc plated steel hexagon head bolt and a fire resistance rating of F30. Ideal for professionals, this fixing system ensures immediate load-bearing capacity and compatibility with over 100 building materials, making it perfect for both concrete and masonry applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: SHARK UR Plastic Frame Fixing | Zinc Plated Steel Hexagon Head Bolt | Universal Frame Fixing | Fire Resistance F30 | @Pack of 40 | by Wurth
Brand: Wurth
SKU: 5912810605
Alternatively Known As: Plastic frame anchor, SHARK UR fixing bolt, Zinc plated hex bolt anchor, Frame fixing anchor
Technical Specifications
- Anchor diameter: 10 mm
- Anchor length: 160 mm
- Max attachment height: 90 mm
- Nominal drill-bit diameter: 10 mm
- Through-hole diameter: 10.5 mm
- Fire resistance rating: F30
- Material of screw: Steel
- Internal drive: AW40
- Surface of screw: Zinc plated
- Head type: Hexagon head
- Drill hole depth: 80 mm
- Approval: ETA-08/0190
- Type description: W-UR F 10, hexagonal bolt
- Dimensions (H x L x W): 160mm x 10.5mm x 10mm
- Weight: 1.3 kg
Key Features
- Universal frame fixing with special anchor geometry
- Immediate load-bearing capacity with ETA assessment
- Tested for over 100 proven and modern building materials
- Diameters 8 and 10 tested and approved for 105 different base materials
- Improved safety with expert fire behaviour assessment
- Anchor teeth expand in four directions and claw into base material
- Friction locking between anchor sleeve and base material
- High working loads due to four-direction expansion
- Even, continuous load transfer across entire expansion area
- Low installation torque prevents spinning of anchor sleeve
- Anchor sleeve made of high-quality polyamide with strong anti-rotation lock
- Pre-assembled anchor sleeve and special screw for minimal installation work
- Hammer-in stop prevents premature expansion during installation
- Two embedment depths for defined building materials
- Fire resistance rating F30
Professional Installation Requirements
- Installation should be performed by qualified professionals familiar with anchor fixing systems to ensure safety and compliance with building codes.
Applications
- Construction: Fixing frames in concrete and masonry
- Building: Suitable for over 100 building materials
- Industrial: Load-bearing anchorage applications
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Durable materials reduce need for frequent replacements
- High load capacity minimizes material waste
- Pre-assembled components reduce installation time and energy use
Warranty Information
Warranty as per Wurth standard terms and conditions.
Available Now
Wurth SHARK UR Plastic Frame Fixing with Zinc Plated Steel Hexagon Head Bolt 40 PCS is available for immediate purchase, ideal for construction and building applications requiring reliable frame fixing.
