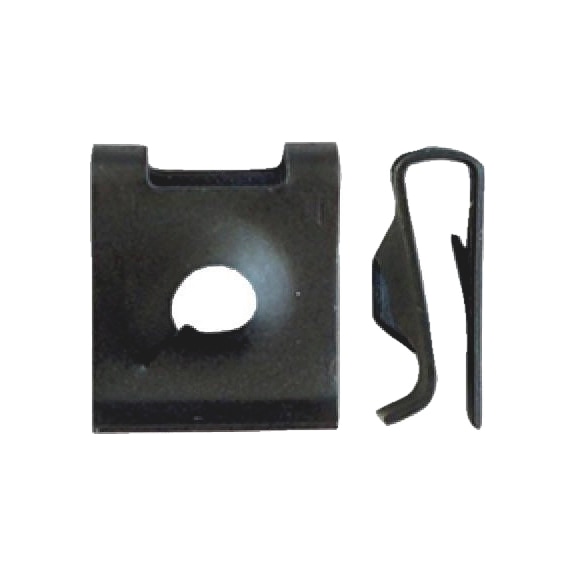

Sheet Metal Nut with Closed Screw-In Area | 4.2mm Screw Diameter | Phosphated Spring Steel | @Pack of 10 | by Wurth
The Sheet Metal Nut with Closed Screw-In Area is designed for secure fastening in automotive and industrial applications. With a 4.2mm screw diameter and durable phosphated spring steel construction, it ensures a reliable connection while allowing for simple installation and removal. Ideal for vehicle assembly and repair, this nut is perfect for securing components on vehicle edges.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Sheet Metal Nut with Closed Screw-In Area | 4.2mm Screw Diameter | Phosphated Spring Steel | @Pack of 10 | by Wurth
Brand: Wurth
SKU: 50013629
Alternatively Known As: Sheet metal fastener nut, Edge nut, Sliding nut, Spring steel nut
Technical Specifications
- Suitable for screw diameter: 4.2 mm
- Min./max. attachment thickness: 2.00-2.50 mm
- Length (A): 12.50 mm
- Width (B): 11.00 mm
- Distance between centre of hole and edge (C): 5.50 mm
- Min./max. grip range: 2.00-2.50 mm
- Material thickness (S): 0.50 mm
- Surface: Phosphated
- Material: Spring steel CK 67
- Suitable for vehicle manufacturers: Audi, Volkswagen
- Corresponds to original spare part number: N90057901
- Installation location: Universal
- Dimensions (H x L x W): 12.5mm x 12.5mm x 11mm
- Weight: 0.02 kg
Key Features
- Secure and fast connection of two or more components
- Simple installation and removal
- Tolerance compensation and blind assembly possible
- Designed for sliding onto component edges
Professional Installation Requirements
- Installation should be performed by a qualified technician to ensure secure fastening and compliance with safety standards.
Applications
- Automotive assembly and repair
- Securing components on vehicle edges
- General industrial fastening applications
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable spring steel construction reduces need for frequent replacements
- Phosphated surface provides corrosion resistance extending product life
Warranty Information
Standard manufacturer warranty applies.
Available Now
Wurth Sheet Metal Nut with closed screw-in area 10 PCS is available for immediate purchase, ideal for automotive and industrial fastening applications.
