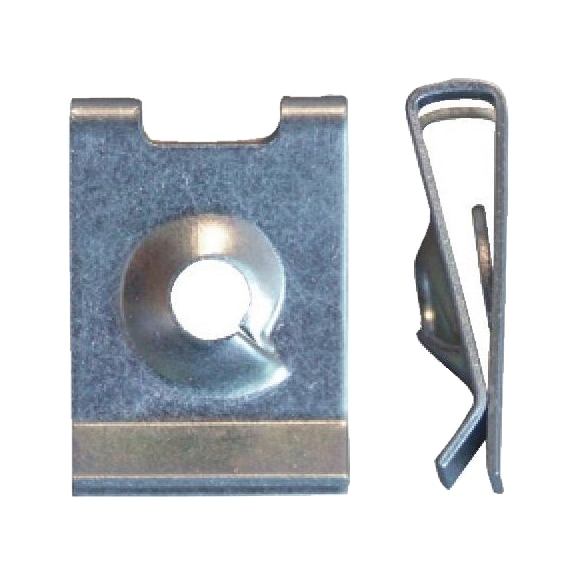

Sheet Metal Nut with Closed Screw-in Area | Zinc Plated | 3.9mm Screw Diameter | 1.00-3.00mm Grip Range | @Pack of 25 | by Wurth
Sheet Metal Nut with Closed Screw-in Area is designed for secure and fast connections in automotive, industrial, and construction applications. With a 3.9mm screw diameter and a grip range of 1.00-3.00mm, this zinc plated nut ensures durability and corrosion resistance. Ideal for sliding onto component edges, it simplifies installation and removal, making it perfect for professionals and DIY enthusiasts alike.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Sheet Metal Nut with Closed Screw-in Area | Zinc Plated | 3.9mm Screw Diameter | 1.00-3.00mm Grip Range | @Pack of 25 | by Wurth
Brand: Wurth
SKU: 50011347
Alternatively Known As: Sheet metal clip nut, Sliding nut, Spring steel nut, Edge nut
Technical Specifications
- Suitable for screw diameter: 3.9 mm
- Min./max. attachment thickness: 1.00-3.00 mm
- Length (A): 16.00 mm
- Width (B): 11.00 mm
- Distance between centre of hole and edge (C): 7.00 mm
- Min./max. grip range: 1.00-3.00 mm
- Material thickness (S): 0.50 mm
- Surface: Zinc plated transparent
- Material: Spring steel CK 67
- Suitable for vehicle manufacturer: Universal
- Installation location: Universal
- Dimensions (H x L x W): 16mm x 16mm x 11mm
- Weight: 0.05 kg
Key Features
- Secure and fast connection of two or more components
- Simple installation and removal
- Tolerance compensation and blind assembly possible
- Designed for sliding onto component edges
Professional Installation Requirements
- Installation can be performed by trained personnel; no specialized tools required but proper handling recommended for safety and secure fitting.
Applications
- Used for secure and fast connection of two or more components in automotive, industrial, and construction applications
- Suitable for sliding onto component edges
- Ideal for tolerance compensation and blind assembly
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable spring steel construction reduces need for frequent replacements
- Zinc plated surface provides corrosion resistance extending product life
Warranty Information
Standard manufacturer warranty applies.
Available Now
Wurth Sheet Metal Nut with closed screw-in area 25 PCS is available for immediate purchase, ideal for automotive, industrial, and construction fastening applications.
