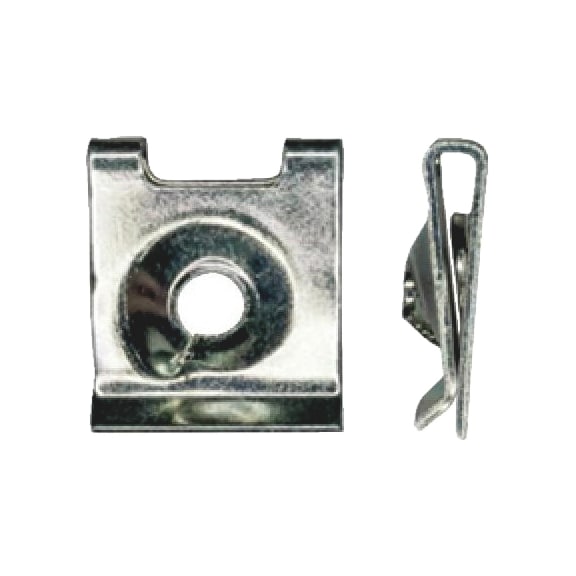

Sheet Metal Nut with Closed Screw-in Area | Zinc Plated | Secure Connection | 10 PCS | by Wurth
Sheet Metal Nut with Closed Screw-in Area is designed for secure fastening in automotive assembly and metal fabrication. With a zinc-plated finish for corrosion resistance and a simple installation process, this nut is perfect for professionals seeking reliable performance in various industrial applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Sheet Metal Nut with Closed Screw-in Area | Zinc Plated | Secure Connection | 10 PCS | by Wurth
Brand: Wurth
SKU: 50013624
Alternatively Known As: Sheet metal fastener nut, Edge nut, Clip nut, Spring steel nut
Technical Specifications
- Suitable for screw diameter: 3.5 mm
- Min./max. attachment thickness: 0.50-1.50 mm

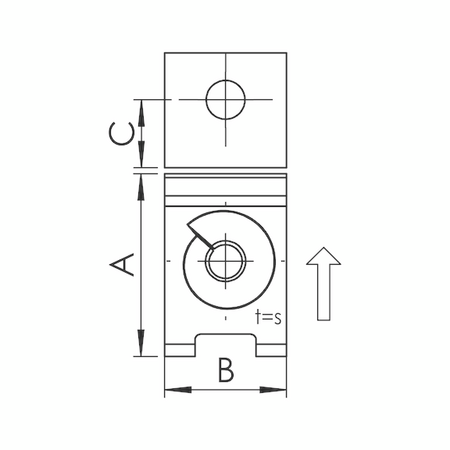

- Length (A): 13.00 mm
- Width (B): 11.00 mm
- Distance between centre of hole and edge (C): 6.00 mm
- Min./max. grip range: 0.50-1.50 mm
- Material thickness (S): 0.50 mm
- Surface: Zinc plated transparent
- Material: Spring steel CK 67
- Suitable for vehicle manufacturer: Universal
- Corresponds to original spare part number: Universal
- Installation location: Universal
- Dimensions (H x L x W): 13mm x 13mm x 11mm
- Weight: 0.05 kg
Key Features
- Secure and fast connection of two or more components
- Simple installation and removal
- Tolerance compensation and blind assembly possible
- Designed for sliding onto component edges
Professional Installation Requirements
- Installation should be performed by a qualified technician to ensure secure fastening and proper fit.
Applications
- Automotive assembly and repair
- Metal fabrication and construction
- General industrial fastening applications
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable spring steel construction reduces need for frequent replacements
- Zinc plating provides corrosion resistance extending product life
Warranty Information
Standard manufacturer warranty applies.
Available Now
Wurth Sheet Metal Nut with closed screw-in area 10 PCS is available for immediate purchase, ideal for automotive and metal fabrication applications.
