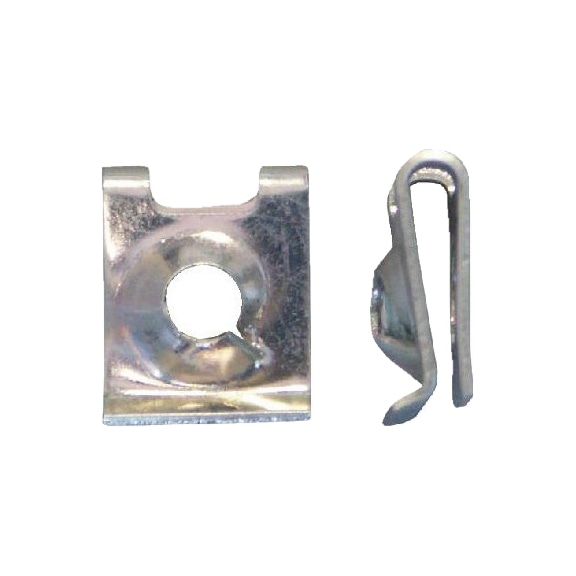

Sheet Metal Nut with Closed Screw-in Area | Zinc Plated | Spring Steel | @Pack of 10 | by Wurth
Sheet Metal Nut with closed screw-in area is designed for secure fastening in automotive and industrial applications. Made from durable spring steel and zinc plated for corrosion resistance, this nut ensures a reliable connection for various components. Ideal for professionals, it simplifies installation and removal while providing tolerance compensation for a perfect fit.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Sheet Metal Nut with Closed Screw-in Area | Zinc Plated | Spring Steel | @Pack of 10 | by Wurth
Brand: Wurth
SKU: 50013658
Alternatively Known As: Sheet metal fastener nut, Edge nut, Clip nut, Sliding nut
Technical Specifications
- Suitable for screw diameter: 3.5 mm
- Min./max. attachment thickness: 1.20-1.70 mm
- Length (A): 9.30 mm
- Width (B): 8.00 mm
- Distance between centre of hole and edge (C): 4.50 mm
- Min./max. grip range: 1.20-1.70 mm
- Material thickness (S): 0.50 mm
- Surface: Zinc plated transparent
- Material: Spring steel CK 67
- Suitable for vehicle manufacturers: Audi, Volkswagen
- Installation location: Universal
- Dimensions (H x L x W): 9.3mm x 9.3mm x 8mm
- Weight: 0.02 kg
Key Features
- Secure and fast connection of two or more components
- Simple installation and removal
- Tolerance compensation and blind assembly possible
- Designed for sliding onto component edges
Professional Installation Requirements
- Installation by a qualified technician or professional recommended to ensure secure fastening and safety.
Applications
- Automotive assembly and repair
- Industrial machinery fastening
- General metal component fastening
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable spring steel construction reduces need for frequent replacements
- Zinc plating provides corrosion resistance extending product life
Warranty Information
Standard manufacturer warranty applies.
Available Now
Wurth Sheet Metal Nut with closed screw-in area 10 PCS is available for immediate purchase, ideal for automotive and industrial fastening applications.
