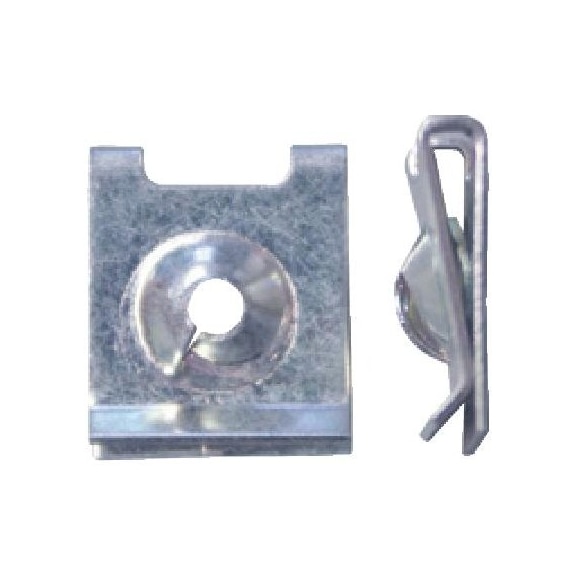

Sheet Metal Nut with Closed Screw-in Area | Zinc Plated | Spring Steel | @Pack of 25 | by Wurth
Sheet Metal Nut with closed screw-in area is designed for secure fastening in automotive bodywork assembly. Made from durable spring steel and zinc plated for corrosion resistance, it ensures a reliable connection on vehicle edges. Ideal for professionals, this nut simplifies installation and removal while providing tolerance compensation for various applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Sheet Metal Nut with Closed Screw-in Area | Zinc Plated | Spring Steel | @Pack of 25 | by Wurth
Brand: Wurth
SKU: 50011956
Alternatively Known As: Sheet metal fastener nut, edge nut, clip nut, sliding nut
Technical Specifications
- Suitable for screw diameter: 2.9 mm
- Min./max. attachment thickness: 0.50-1.50 mm
- Length (A): 13.00 mm
- Width (B): 11.00 mm
- Distance between centre of hole and edge (C): 6.00 mm
- Min./max. grip range: 0.50-1.50 mm
- Material thickness (S): 0.50 mm
- Surface: Zinc plated transparent
- Material: Spring steel CK 67
- Suitable for vehicle manufacturer: Mercedes-Benz
- Corresponds to original spare part number: A0009944245
- Installation location: Bodywork
- Dimensions (H x L x W): 13mm x 13mm x 11mm
- Weight: 0.05 kg
Key Features
- Secure and fast connection of two or more components
- Simple installation and removal
- Tolerance compensation and blind assembly possible
- Designed for sliding onto component edges
Professional Installation Requirements
- Installation by a qualified technician or professional recommended to ensure secure fastening and correct application.
Applications
- Automotive bodywork assembly
- Securing components on vehicle edges
- General sheet metal fastening
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable spring steel material reduces need for frequent replacements
- Zinc plating provides corrosion resistance extending product life
Warranty Information
Standard manufacturer warranty applies.
Available Now
Wurth Sheet Metal Nut with closed screw-in area 25 PCS is available for immediate purchase, ideal for automotive and industrial fastening applications.
