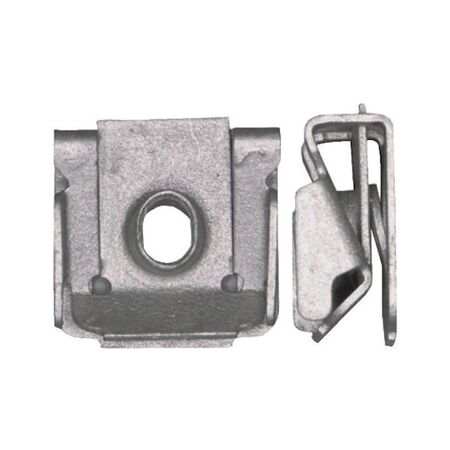

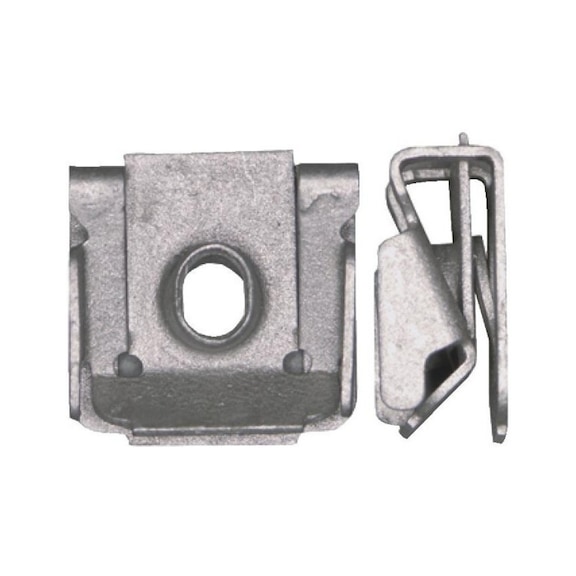

Sheet Metal Nut M5 with Raised Wings | Self-Locking Design | Flake Zinc Coating | by Wurth
The Sheet Metal Nut M5 with Raised Wings is designed for secure and fast connections in automotive applications, particularly for Audi and Volkswagen vehicles. Featuring a self-locking design and flake zinc coating for corrosion resistance, this nut ensures durability and reliability in interior and engine compartment fastening. Ideal for both professional and DIY installations, it simplifies the assembly process while providing high tightening torque.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Sheet Metal Nut M5 with Raised Wings | Self-Locking Design | Flake Zinc Coating | by Wurth
Brand: Wurth
SKU: 501101645
Alternatively Known As: Sheet metal wing nut, Raised wing nut M5, Audi VW sheet metal nut, Self-locking sheet metal nut
Technical Specifications
- Suitable for screw: M5
- Min./max. attachment thickness: 0.80-4.00 mm
- Length (A): 16.60 mm
- Width (B): 17.00 mm
- Distance between centre of hole and edge (C): 7.00 mm
- Min./max. grip range: 0.80-4.00 mm
- Material thickness (S): 0.60 mm
- Surface: Flake zinc silver
- Material: Unalloyed steel, C45
- Suitable for vehicle manufacturer: Audi, Volkswagen
- Corresponds to original spare part number: N90356203
- Installation location: Interior, Engine compartment
- Suitable for screw thread: M5
- Design: Self-locking
- Dimensions (H x L x W): 16.6mm x 17mm x 17mm
- Weight: 0.02 kg
Key Features
- Secure and fast connection of two or more components
- Simple installation and removal
- Tolerance compensation and blind assembly possible
- High tightening torque
- Self-locking design
Professional Installation Requirements
- Installation should be performed by a qualified technician familiar with automotive fasteners to ensure proper fit and torque.
Applications
- Automotive: Suitable for Audi and Volkswagen vehicles
- Interior and engine compartment fastening
- General use for secure and fast connection of components
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable material reduces need for frequent replacements
- Zinc flake coating provides corrosion resistance extending product life
Warranty Information
Standard manufacturer warranty applies.
Available Now
Wurth Sheet Metal Nut with Raised Wings MP VW AUDI M5 MKB 22 SI GZ 10 PCS is available now for immediate purchase. Ideal for automotive repair and assembly applications.
