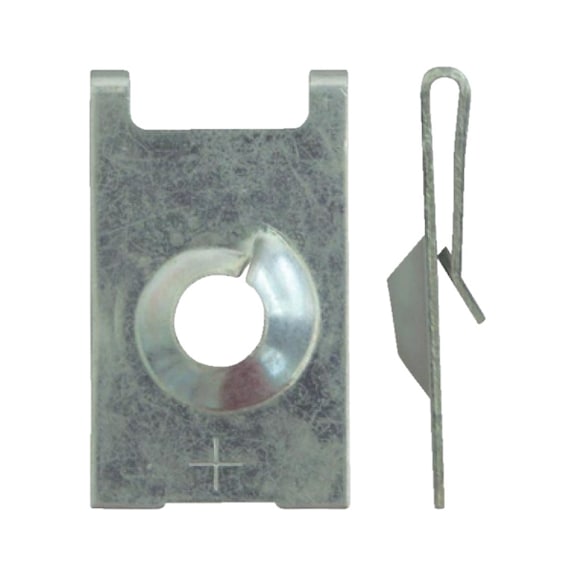

Sheet Metal Nut Shortened Rear Claw | Zinc Plated | 6.3mm Screw Diameter | Quick Assembly | @Pack of 25 | by Wurth
The Sheet Metal Nut Shortened Rear Claw is designed for quick and secure connections, featuring a 6.3mm screw diameter and durable zinc plating for corrosion resistance. Ideal for automotive and industrial applications, this nut allows for easy assembly and disassembly, making it perfect for projects requiring reliable fastening solutions.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Sheet Metal Nut Shortened Rear Claw | Zinc Plated | 6.3mm Screw Diameter | Quick Assembly | @Pack of 25 | by Wurth
Brand: Wurth
SKU: 50013204
Alternatively Known As: Sheet metal clip nut, Rear claw nut, Spring steel nut, Zinc plated nut
Technical Specifications
- Suitable for screw diameter: 6.3 mm

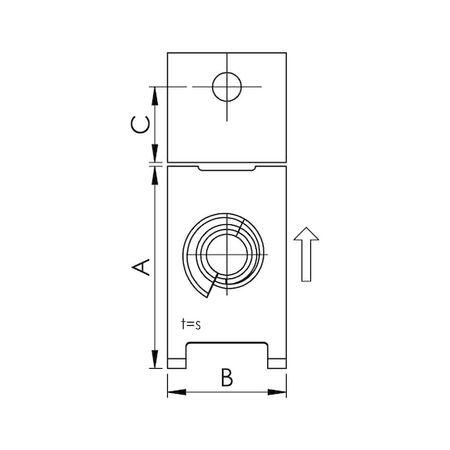

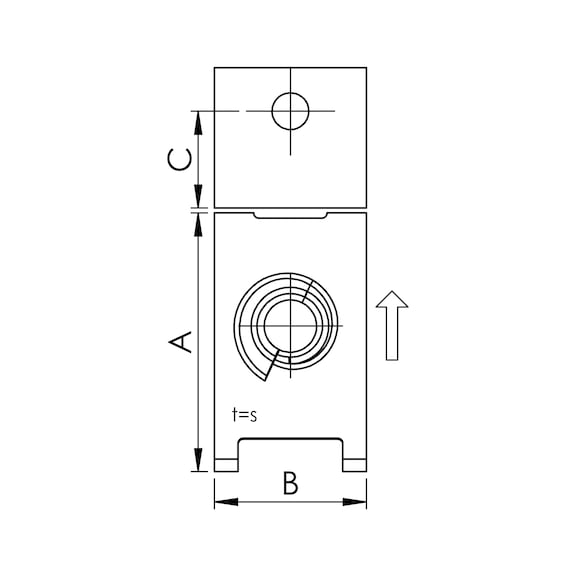

- Length (A): 24.70 mm
- Width (B): 14.50 mm
- Distance between centre of hole and edge (C): 12.70 mm
- Min./max. grip range: 0.70-1.50 mm
- Material thickness (S): 0.70 mm
- Surface: Zinc plated transparent
- Material: Spring steel CK 67
- Suitable for vehicle manufacturer: Opel/Vauxhall
- Corresponds to original spare part number: 2072153, 11072461
- Installation location: Universal
- Dimensions (H x L x W): 24.7mm x 24.7mm x 14.5mm
- Weight: 0.02 kg
Key Features
- Quick and secure connection of two or more components
- Easy assembly and disassembly
- Tolerance compensation and blind mounting possible
- Suitable for screw diameter 6.3 mm
Professional Installation Requirements
- Installation should be performed by a qualified technician to ensure secure fitting and compliance with safety standards.
Applications
- For sliding onto component edges
- Quick and secure connection of two or more components
- Suitable for assembly and disassembly with tolerance compensation and blind mounting
- Universal installation location
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable spring steel construction reduces need for frequent replacements
- Zinc plating provides corrosion resistance extending product life
Warranty Information
Standard manufacturer warranty applies.
Available Now
Wurth Sheet Metal Nut Shortened Rear Claw 25 PCS is available now for immediate purchase. Ideal for automotive and industrial component assembly requiring secure and quick fastening.
