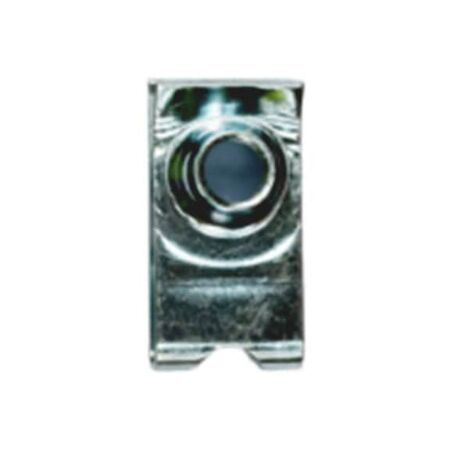

Sheet Metal Nut with Threaded Shank | M5 Compatibility | Zinc Plated Steel | @Pack of 25 | by Wurth
Sheet Metal Nut with Threaded Shank is designed for M5 screws, providing a secure and fast connection for multiple components. Ideal for automotive, construction, and industrial assembly, this nut allows for easy installation and removal while ensuring high tightening torque capability. The zinc plating offers corrosion resistance, extending the product's life and reducing waste.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Suitable for screw: M5
- Min./max. attachment thickness: 0.7-1.6 mm

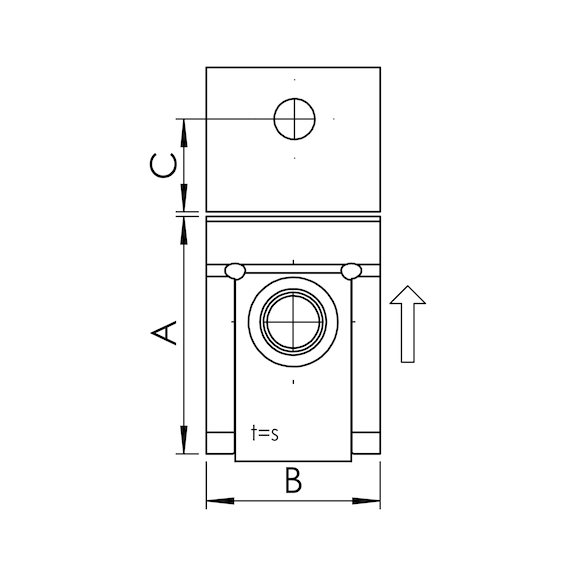

- Length (A): 20 mm
- Width (B): 15.0 mm
- Distance between centre of hole and edge (C): 8.0 mm
- Material thickness (S): 0.7 mm
- Surface: Zinc plated
- Material: Steel
- Suitable for screw thread: M5
- Dimensions (H x L x W): 20mm x 20mm x 15mm
- Weight: 0.1 kg
Key Features
- Designed for sliding onto component edges
- Secure and fast connection of multiple components
- Simple installation and removal
- Allows tolerance compensation and blind assembly
- High tightening torque capability
- Thread tolerance 6H, coating not indicated
Professional Installation Requirements
- Installation should be performed by a qualified technician to ensure proper fastening and safety.
Applications
- Suitable for fastening components on sheet metal edges
- Ideal for secure and fast connection of two or more components
- Used in automotive, construction, and industrial assembly
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Zinc plating provides corrosion resistance, extending product life and reducing waste
Warranty Information
Standard manufacturer warranty applies.
Available Now
Wurth Sheet Metal Nut with Threaded Shank 25 PCS is available for immediate purchase, ideal for industrial and construction fastening applications.
