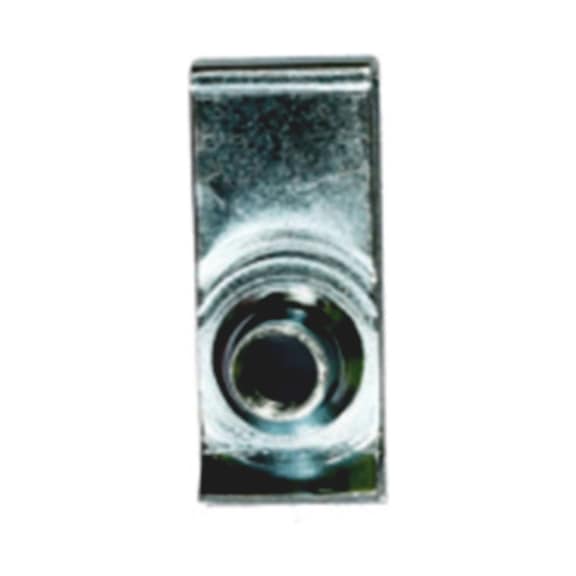

Sheet Metal Nut with Threaded Shank | Zinc Plated | M6 Compatible | @Pack of 25 | by Wurth
Sheet Metal Nut with Threaded Shank is designed for secure fastening on M6 screws, making it ideal for mechanical assembly in automotive and industrial applications. With a durable zinc-plated finish, it offers excellent corrosion resistance and high tightening torque, ensuring reliable connections even in challenging environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Suitable for screw: M6
- Min./max. attachment thickness: 0.7-1.6 mm
- Length (A): 30 mm
- Width (B): 13.5 mm
- Distance between centre of hole and edge (C): 9.0 mm
- Material thickness (S): 0.9 mm
- Surface: Zinc plated
- Material: Steel
- Suitable for screw thread: M6
- Thread tolerance: 6H
- Dimensions (H x L x W): 30mm x 30mm x 13.5mm
- Weight: 0.05 kg
Key Features
- Secure and fast connection of two or more components
- Simple installation and removal
- Tolerance compensation and blind assembly possible
- High tightening torque
- Suitable for sliding onto component edges
Professional Installation Requirements
- Installation by a qualified technician or tradesperson is recommended to ensure proper fastening and torque application.
Applications
- Mechanical assembly requiring secure fastening on sheet metal edges
- Automotive and industrial component assembly
- Situations requiring tolerance compensation and blind assembly
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Zinc plating provides corrosion resistance extending product life and reducing waste
- Durable steel construction supports long-term reuse and reliability
Warranty Information
Standard manufacturer warranty applies. Please refer to Wurth warranty policy for details.
Available Now
Wurth Sheet Metal Nut with Threaded Shank 25 PCS is available now for immediate purchase. Ideal for industrial, automotive, and mechanical assembly applications.
