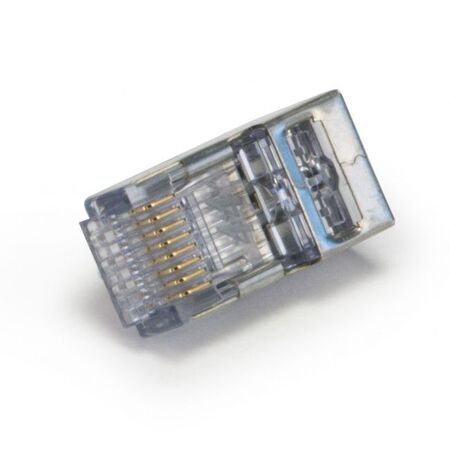

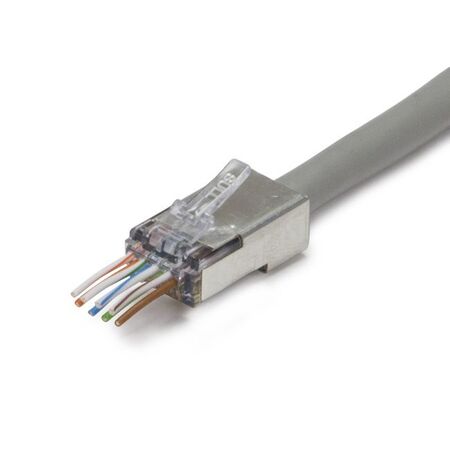

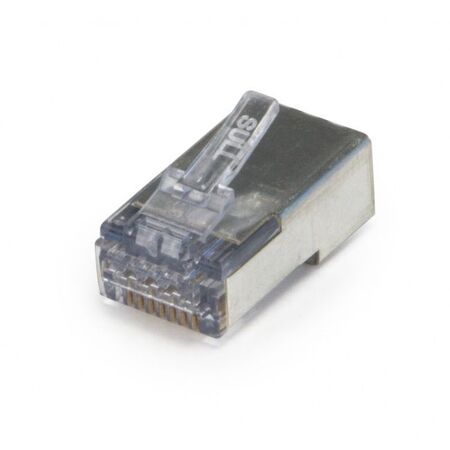

Shielded CAT6 Connector w/ Internal Ground | 50pc Jar | Hi-Lo Stagger | Gold Plated by Certech
Shielded CAT6 connector with internal ground and hi-lo stagger design—ideal for residential and commercial networking. Built for reliable connections, with 50 micron gold plated contacts and RoHS compliance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Platinum Tools ezEX44 Shielded CAT6 Connector w/ Internal Ground, 50pc Jar
Brand: Certech
SKU: 202050J
Alternatively Known As: ezEX-RJ45 Connector, Shielded RJ45 Plug, Cat6 Connector
Technical Specifications
- Insulation diameter (Conductor) - Size range: 0.039" ~ 0.044" (1.0~1.12mm)
- Max outer diameter: 0.280" (7.1mm)
- Termination with EXO Crimp Frame & EXO-EX Die (100061C)
- Dimensions (H x L x W): 10mm x 30mm x 20mm
- Weight: 0.5 kg
Key Features
- Hi-Lo stagger to isolate each conductor
- Simple one piece/pass through design. No bars or liners
- Shielded Cat5e/6 compliant
- 50 micron gold plated contacts
- Solid or stranded 22-24AWG
- TAA/TIA/RoHS, UL & FCC compliant
- Made in the USA
Professional Installation Requirements
- Professional installation is recommended for optimal performance and compliance.
Applications
- Networking: Ideal for Cat6 installations in residential and commercial settings.
Standards & Compliance
- Complies with AS/NZS 60950 for safety of IT and communication equipment.
Environmental Benefits
- Compliant with RoHS standards, reducing hazardous substances in manufacturing.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Platinum Tools ezEX44 Shielded CAT6 Connector w/ Internal Ground, 50pc Jar is available now for immediate purchase. Ideal for networking applications.
