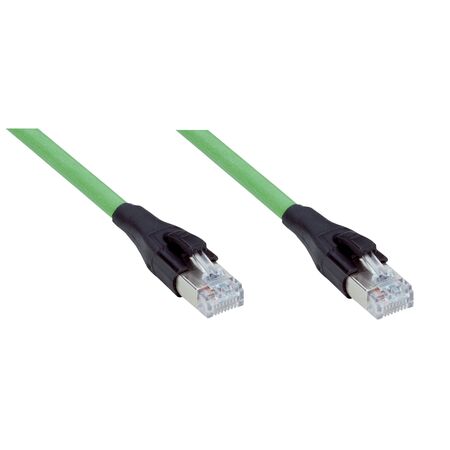

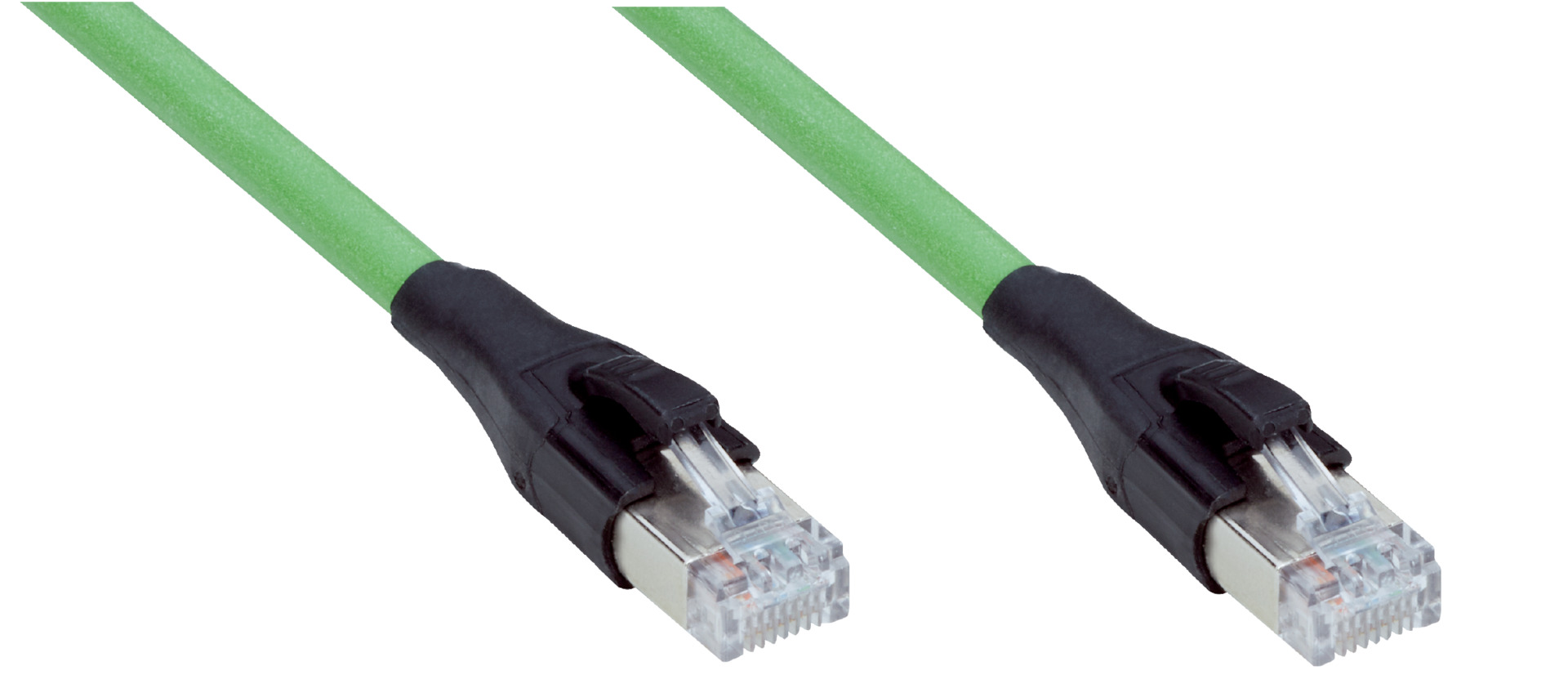

Shielded CAT6A Ethernet Cable | 10 Gbit/s Data Rate | Halogen-Free PUR Jacket | by SICK
The Shielded CAT6A Ethernet Cable is designed for high-speed data transmission, supporting rates up to 10 Gbit/s. With male RJ45 connectors on both ends and a durable halogen-free PUR jacket, this cable is perfect for industrial environments exposed to oils and lubricants. Its IP20 rating ensures reliability in protected settings, making it an ideal choice for automation and control systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Connection type head A: Male connector, RJ45, 8-pin, straight
- Connection type head B: Male connector, RJ45, 8-pin, straight
- Connector material: TPU
- Connector color: Black
- Cable length: 5 m
- Cable type: 8-wire, PUR, halogen-free
- Jacket material: PUR, halogen-free
- Jacket color: Green
- Cable diameter: 6.4 mm
- Conductor cross section: 0.14 mm²
- Shielding: Shielded
- Bending radius flexible use: > 10 x cable diameter
- Bending radius stationary position: > 8 x cable diameter
- Nominal voltage: 125 V AC
- Test voltage: 1,000 V AC
- Reference voltage: 48 V AC / 60 V DC
- Signal type: Ethernet, Gigabit Ethernet
- Transmission characteristics: CAT6A
- Data transmission rate: ≤ 10 Gbit/s
- Application: Zones with oils and lubricants
- Enclosure rating: IP20
- Operating temperature stationary position: -40 °C to +80 °C
- Operating temperature head: -25 °C to +85 °C
- Contamination rating: 3
- Insulation resistance: > 100 mΩ
- Specific insulation resistance: < 30 mΩ
- Thermal resistance: Flame retardant acc. to UL 1581 Section 1090, Section 1100 (FT2), Section 1080 (VW-1) / IEC 60332-1-2
- Dimensions (H x L x W): 6.4mm x 5000mm x 6.4mm
- Weight: 0.1 kg
Key Features
- Shielded CAT6A cable supporting data rates up to 10 Gbit/s
- Male RJ45 8-pin straight connectors on both ends
- Cable jacket and connectors made from halogen-free PUR and TPU materials
- Operating temperature range from -40°C to +85°C
- Flame retardant cable complying with UL 1581 and IEC 60332-1-2 standards
- IP20 enclosure rating suitable for protected environments
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper connection and compliance with safety standards.
Applications
- Industrial Ethernet networks requiring high-speed data transmission
- Environments with exposure to oils and lubricants
- Data communication in automation and control systems
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Halogen-free cable materials reduce environmental impact during disposal
- Durable PUR jacket extends cable lifespan, reducing waste
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK YMRJA8-050EG1MRJA8 Ethernet cable is available for immediate purchase, ideal for industrial and automation network applications.
