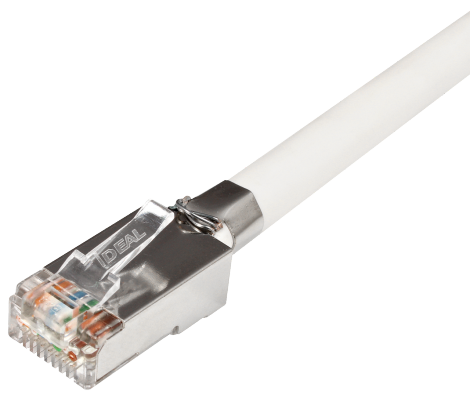

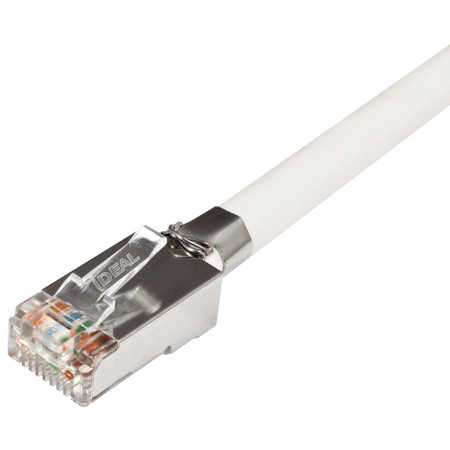

Shielded Feed-Thru RJ45 Connectors | Compatible with CAT6/CAT6A | 50 Micro-Inch Gold Plating | Large Diameter | Pack of 25 by Ideal Electrical

BRAND: Ideal Electrical
SKU: IDL85-368
$98.10 List price: $118.70
+ −
30 Days Return Delivery Options
Shielded feed-thru RJ45 connectors designed for large diameter CAT6 and CAT6A cables, featuring 50 micro-inch gold plating for long-term reliability. Ideal for data communication networks and PoE installations, these connectors enable quick verification of conductor order before crimping.

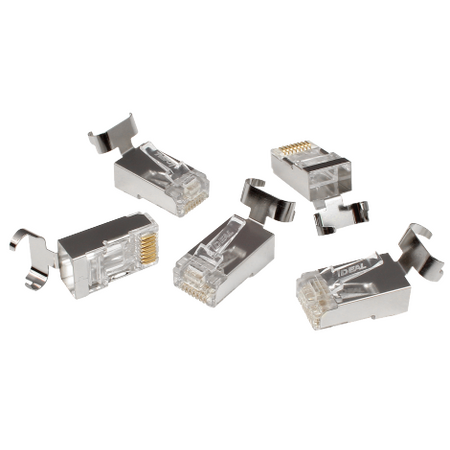

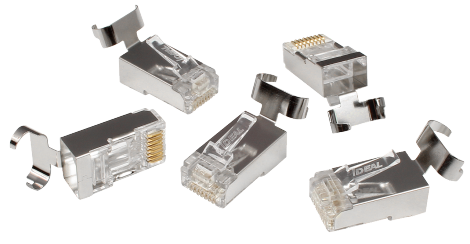

Product Name/Title: CAT6a/6/5e Shielded Feed-Thru RJ45 Connectors Large Diameter (25/PK)

Brand: Ideal Electrical

SKU: IDL85-368

Alternatively Known As: Shielded RJ45 Connectors, CAT6a RJ45 Plugs, Feed-Thru RJ45 Connectors, Large Diameter RJ45 Plugs, Shielded Modular Plugs

Technical Specifications
  • Compatible with CAT6, CAT6A cables
  • Insulated conductor diameter range: 0.040” - 0.048”
  • Positions/Contacts: 8P8C
  • Termination Method: Crimp

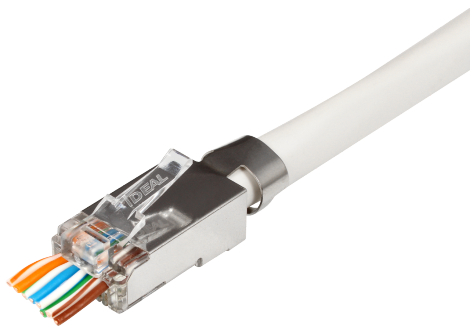

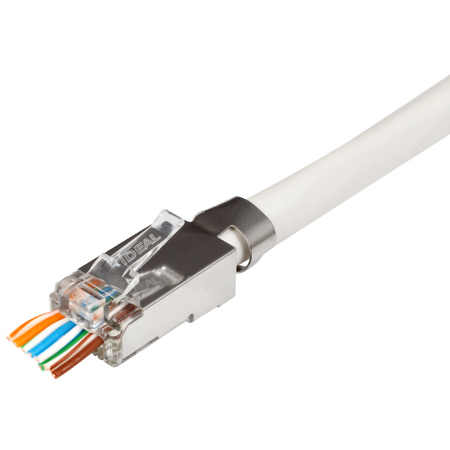

  • Feed-Thru design for easy conductor verification
  • 50 micro-inch gold plating on contacts
  • Max cable jacket outer diameter: 0.320 inches
  • UL Listed
  • PoE, PoE+ and PoE++ compatible (IEEE 802.3af/at/bt)
  • Dimensions (H x L x W): 10mm x 40mm x 15mm
  • Weight: 0.1 kg
Key Features
  • Shielded Feed-Thru RJ45 connectors for large diameter CAT6 and CAT6A cables
  • Enables quick verification of conductor order before crimping
  • Compatible with insulated conductor range 0.040” - 0.048” diameter

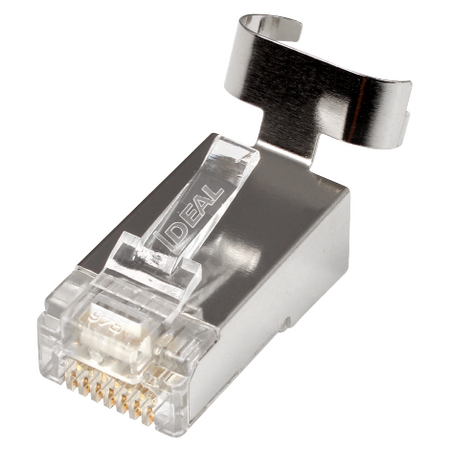

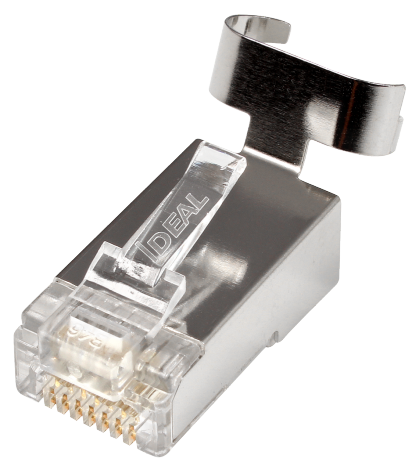

  • Integrated metal shell and cable strain clip for continuous cable shielding
  • Internal shield connection points on top and bottom for cable foil or drain wire contact
  • 50 micro-inch gold plating on contact mating area for long-term reliability
  • Feed-Thru design minimizes untwisting of pairs inside connector body to 1/4 inch
  • Max cable jacket outer diameter of 0.320 inches
  • UL Listed and IEEE 802.3af/at/bt compliant
Professional Installation Requirements
  • Professional installation by a qualified technician is recommended to ensure proper crimping and shielding continuity.
Applications
  • Data communication networks
  • PoE, PoE+ and PoE++ compatible devices
  • CAT6, CAT6A cable installations
  • Shielded twisted pair cable terminations
Standards & Compliance
  • Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
  • Durable design reduces need for frequent replacements, minimizing electronic waste
  • Supports energy-efficient PoE devices by ensuring reliable connectivity
Warranty Information

Limited 1 Year warranty.

Available Now

Available for immediate purchase, ideal for professional data and network cable installations requiring shielded RJ45 connectors.
