Shielded Feed-Thru RJ45 Connectors | Compatible with CAT6/CAT6A | 50 Micro-Inch Gold Plating | Large Diameter | Pack of 50 by Ideal Electrical
Shielded feed-thru RJ45 connectors designed for large diameter CAT6 and CAT6A cables, featuring 50 micro-inch gold plating and a feed-thru design for quick verification. Ideal for data communication networks and PoE installations, these connectors ensure reliable performance and minimal untwisting of pairs.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: CAT6a/6/5e Shielded Feed-Thru RJ45 Connectors Large Diameter (50/JR)
Brand: Ideal Electrical
SKU: IDL85-369
Alternatively Known As: Shielded RJ45 Connectors, CAT6a RJ45 Plugs, Feed-Thru RJ45 Connectors, Large Diameter RJ45 Plugs, Shielded Modular Plugs
Technical Specifications
- Compatible with CAT6, CAT6A cables
- Insulated conductor diameter range: 0.040” - 0.048”
- Positions/Contacts: 8P8C
- Termination Method: Crimp

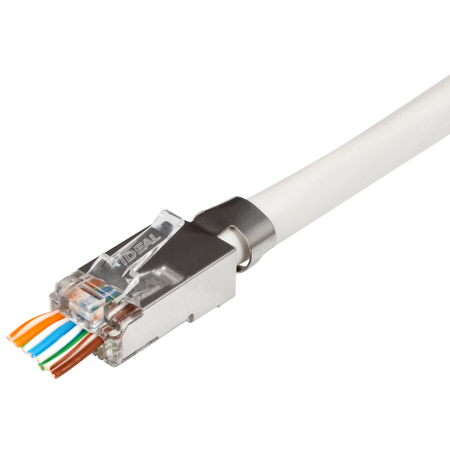

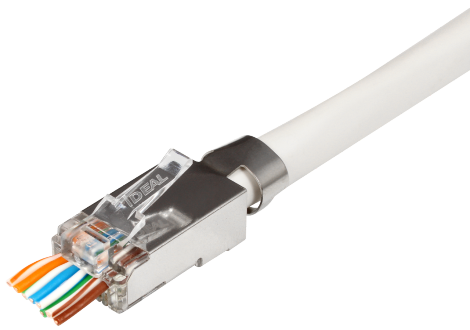

- Feed-Thru design for quick conductor order verification
- 50 micro-inch gold plating on contacts
- Max cable jacket outer diameter: 0.320"
- UL Listed
- PoE, PoE+ and PoE++ compatible (IEEE 802.3af/at/bt)
- Dimensions (H x L x W): 10mm x 40mm x 15mm
- Weight: 0.2 kg
Key Features

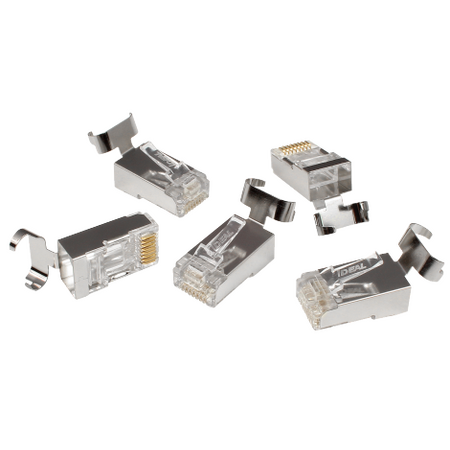

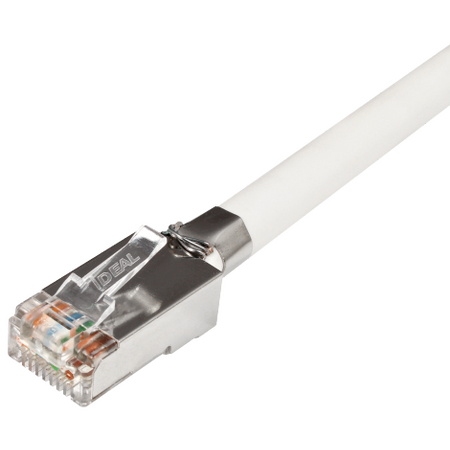

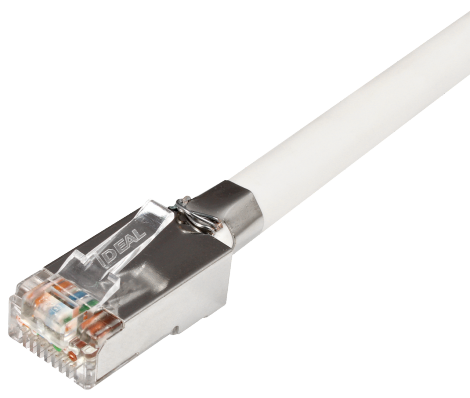

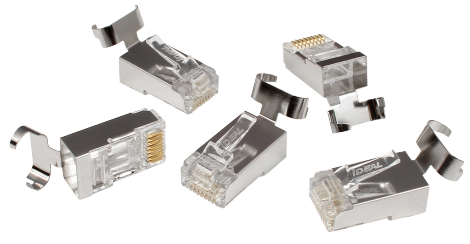

- Shielded Feed-Thru RJ45 connectors for large diameter CAT6 and CAT6A cables
- Compatible with insulated conductor range of 0.040” - 0.048” diameter

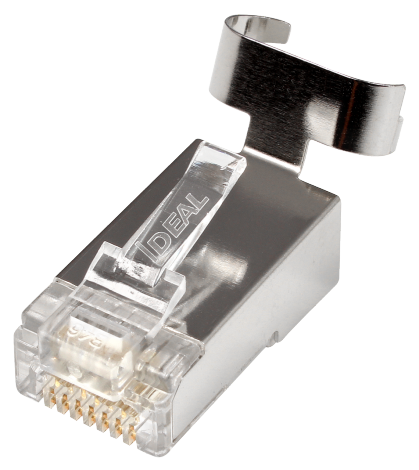

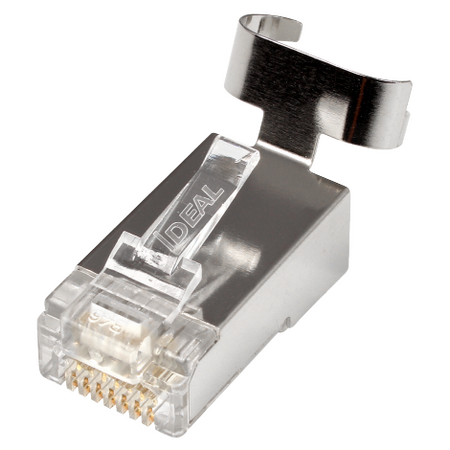

- Integrated metal shell and cable strain clip for continuous cable shielding
- Internal shield connection points on top and bottom for cable foil or drain wire contact
- Staggered conductor and pin design to accommodate large diameter cables
- 50 micro-inch gold plating on contact mating area for long term reliability
- Feed-Thru design minimizes untwisting of pairs inside the connector body to 1/4"
- Max cable jacket outer diameter of .320"
- UL Listed
- PoE, PoE+ and PoE++ compatible (IEEE 802.3af/at/bt)
Professional Installation Requirements
- Professional installation by a qualified technician is recommended to ensure proper crimping and shielding continuity.
Applications
- Data communication networks
- PoE, PoE+ and PoE++ compatible installations
- CAT6, CAT6A cable terminations
- Shielded twisted pair cable connections
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing electronic waste
- Supports energy-efficient PoE technology reducing overall power consumption
Warranty Information
Limited 1 Year warranty.
Available Now
Ideal Electrical CAT6a/6/5e Shielded Feed-Thru RJ45 Connectors Large Diameter (50/JR) are available now for immediate purchase. Ideal for professional data and PoE network installations.
