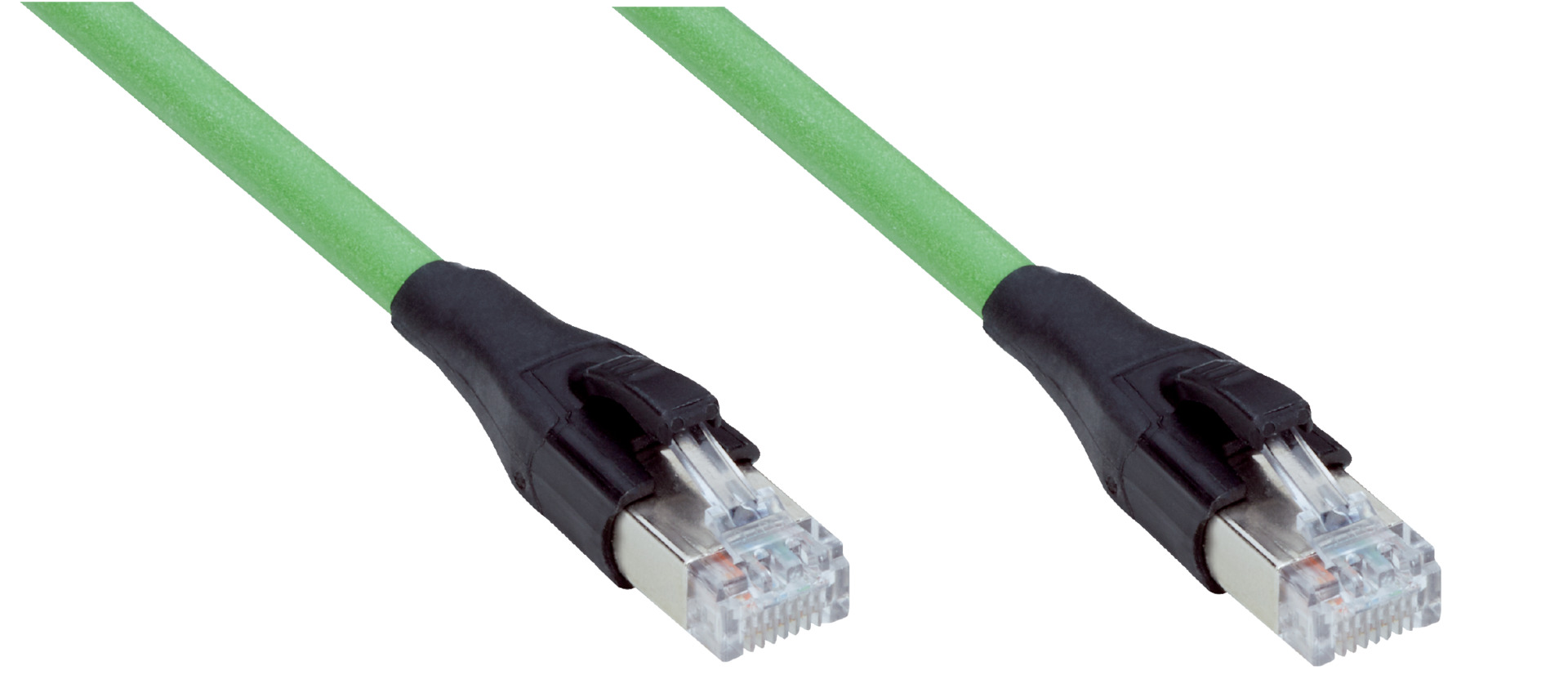

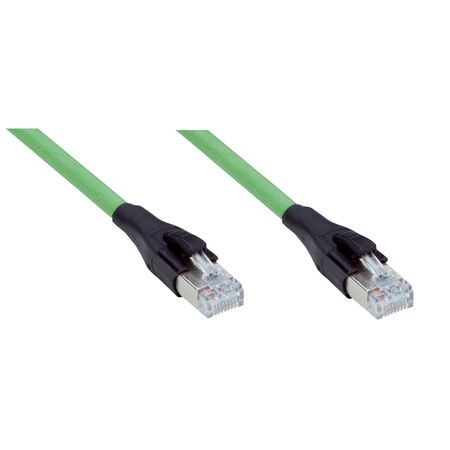

Shielded RJ45 CAT6A Ethernet Cable | 10 Gbit/s Data Rate | Halogen-Free PUR Jacket | by SICK
The Shielded RJ45 CAT6A Ethernet Cable is designed for high-speed data transmission, supporting rates up to 10 Gbit/s. With male RJ45 connectors on both ends and a halogen-free PUR jacket, this cable is perfect for industrial Ethernet networks and harsh environments. Its flame retardant properties and IP20 enclosure rating ensure safety and reliability in demanding applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Connection type head A: Male connector, RJ45, 8-pin, straight
- Connection type head B: Male connector, RJ45, 8-pin, straight
- Connector material: TPU
- Connector color: Black
- Cable length: 0.3 m
- Cable type: 8-wire, PUR, halogen-free
- Jacket material: PUR, halogen-free
- Jacket color: Green
- Cable diameter: 6.4 mm
- Conductor cross section: 0.14 mm²
- Shielding: Shielded
- Bending radius flexible use: > 10 x cable diameter
- Bending radius stationary position: > 8 x cable diameter
- Nominal voltage: 125 V AC
- Test voltage: 1,000 V AC
- Reference voltage: 48 V AC / 60 V DC
- Signal type: Ethernet, Gigabit Ethernet
- Transmission characteristics: CAT6A
- Data transmission rate: ≤ 10 Gbit/s
- Operating temperature stationary position: -40 °C to +80 °C
- Operating temperature head: -25 °C to +85 °C
- Contamination rating: 3
- Insulation resistance: > 100 mΩ
- Thermal resistance: Flame retardant acc. to UL 1581 Section 1090, 1100 (FT2), 1080 (VW-1) / IEC 60332-1-2
- Enclosure rating: IP20
- Dimensions (H x L x W): 6mm x 300mm x 6mm
- Weight: 0.1 kg
Key Features
- Shielded CAT6A cable supporting data rates up to 10 Gbit/s
- Male RJ45 8-pin straight connectors on both ends
- Cable jacket and connectors made from halogen-free PUR and TPU materials
- Flame retardant cable compliant with UL 1581 standards
- Operating temperature range from -40°C to +85°C
- IP20 enclosure rating suitable for industrial environments
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper connection and compliance with safety standards.
Applications
- Industrial Ethernet networks
- Zones with oils and lubricants
- Data transmission in harsh environments
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Halogen-free cable materials reduce toxic emissions in case of fire
- Flame retardant properties enhance safety and reduce environmental hazards
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK for detailed warranty terms.
Available Now
The SICK YMRJA8-C30EG1MRJA8 Ethernet cable is available for immediate purchase, ideal for industrial Ethernet networking applications requiring robust and reliable data transmission.
