Trade Discount 20%

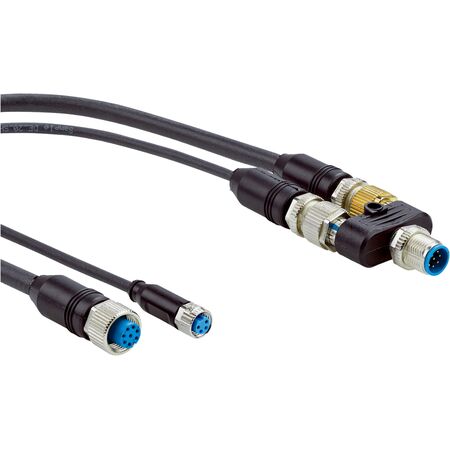

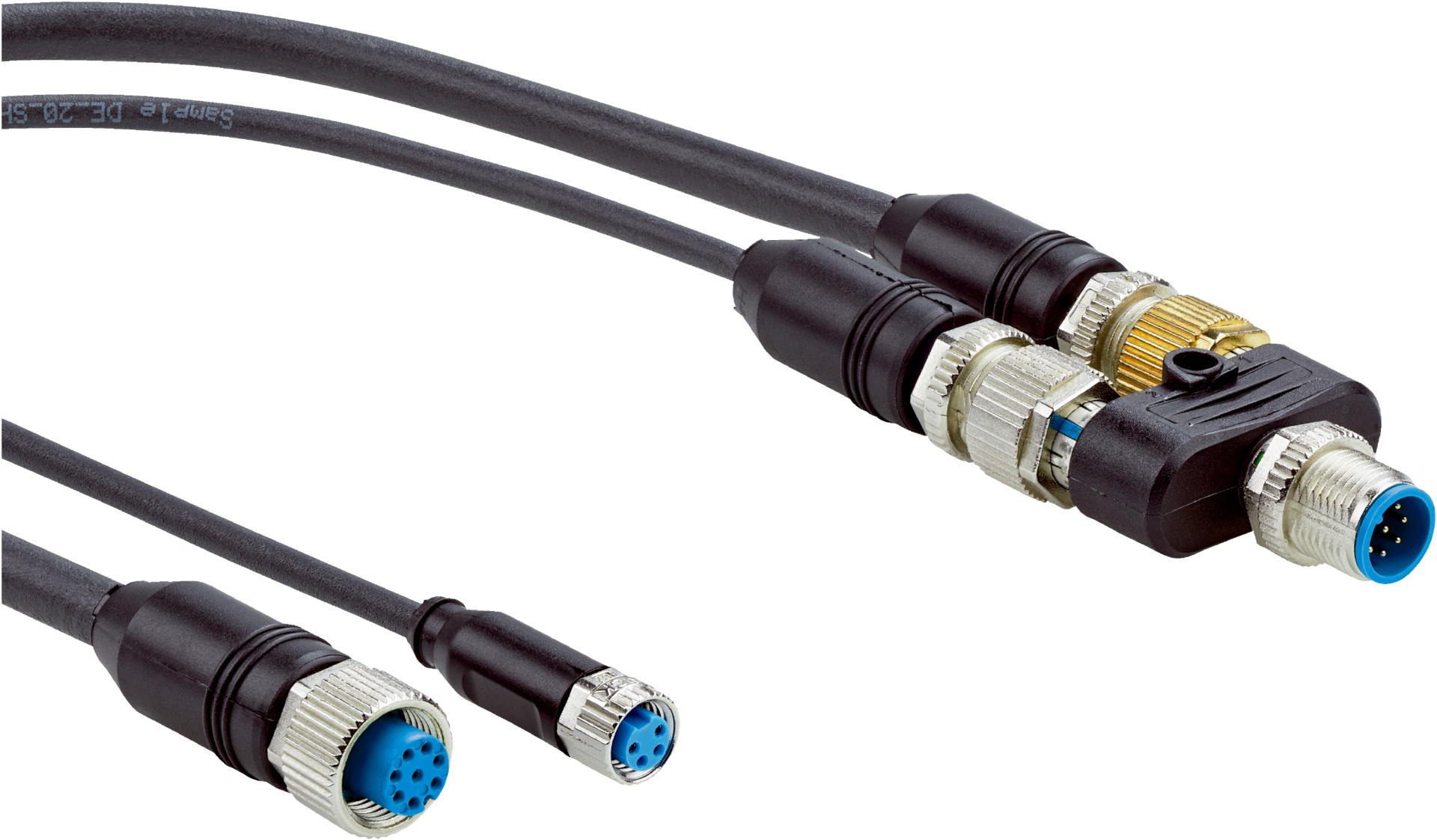

Shielded Y-Distributor Cable | M12 to M8 Connectors | IP67 Rated | by SICK
The Shielded Y-Distributor Cable is designed for reliable signal transmission in industrial automation and sensor connectivity. Featuring multiple connector types (M12 and M8), this halogen-free PUR cable ensures durability and safety, making it ideal for harsh environments with temperatures ranging from -25°C to +80°C. With an IP67 rating, it provides excellent protection against dust and water, ensuring optimal performance in demanding applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Connection type head A: Male connector, M12, 8-pin, A-coded
- Connection type head B: Female connector, M12, 8-pin, A-coded
- Connection type head C: Female connector, M8, 4-pin, A-coded
- Connecting cable length: 0.2 m
- Cable material: PUR, halogen-free
- Conductor cross section: 0.25 mm²
- Locking nut material: Zinc die-cast, nickel-plated
- Tightening torque: 0.4 Nm (M8), 0.6 Nm (M12)
- Shielding: Shielded
- Reference voltage: ≤ 30 V DC
- Rated impulse voltage: 0.8 kV
- Current loading: ≤ 2 A
- Contamination rating: 3
- Operating temperature: –25 °C to +80 °C
- Enclosure rating: IP67
- Dimensions (H x L x W): 20mm x 200mm x 50mm
- Weight: 0.1 kg
Key Features
- Shielded cable for reliable signal transmission
- Halogen-free PUR cable material for safety and durability
- IP67 rated enclosure for protection against dust and water
- Flexible use in temperatures from -25°C to +80°C
- Multiple connector types: Male M12 8-pin, Female M12 8-pin, Female M8 4-pin
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and compliance with safety standards.
Applications
- Industrial automation and sensor connectivity
- Machine building and factory automation
- Signal transmission in harsh environments
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Halogen-free cable material reduces environmental impact and improves safety in case of fire
- Durable construction extends product life and reduces waste
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's warranty policy for details.
Available Now
The SICK YM2A28-C20S01MYAAX shielded Y-distributor cable is available for immediate purchase, ideal for industrial automation and sensor connectivity applications.
