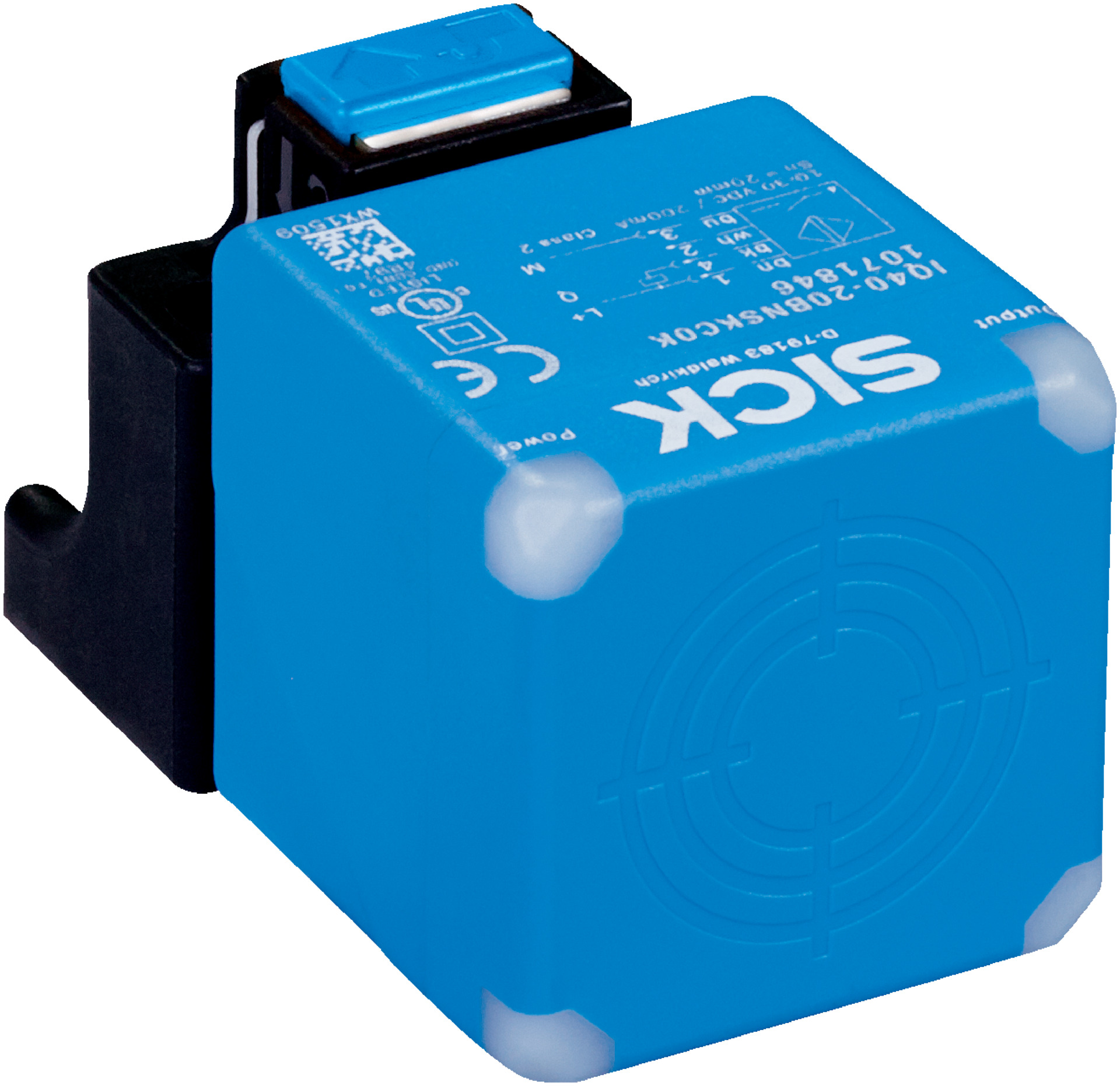

Short-body Inductive Proximity Sensor | IP67, IP68, IP69K Rated | 40mm Sensing Range | PNP Output | by SICK
The Short-body Inductive Proximity Sensor is designed for reliable object detection in industrial automation. With a sensing range of 40 mm and an IP67, IP68, IP69K enclosure rating, it excels in harsh environments. Built for durability, this sensor features a robust plastic housing and a high switching frequency of 100 Hz, making it ideal for applications requiring dependable performance under challenging conditions.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 10 V pp
- Voltage drop: ≤ 2 V
- Time delay before availability: ≤ 50 ms
- Hysteresis: 3% to 15%
- Reproducibility: ≤ 6%
- Temperature drift of sensing range: ± 10%
- Continuous current Ia: ≤ 200 mA
- No load current: 12.5 mA
- Protection class: II
- Shock and vibration resistance: 30 g, 11 ms / 10 to 55 Hz, 1 mm
- Housing material: Plastic PA 66
- Connection type: Male connector M12, 4-pin
- Switching output: PNP, Normally Open (NO)
- Enclosure rating: IP67, IP68, IP69K
- Dimensions (H x L x W): 40mm x 66mm x 40mm
- Weight: 0.1 kg
Key Features
- Short-body housing design
- Non-flush installation type
- Sensing range of 40 mm with safe sensing range of 32.4 mm
- High switching frequency of 100 Hz
- PNP switching output with NO function
- Male connector M12, 4-pin connection
- Robust plastic PA 66 housing and sensing face
- IP67, IP68, IP69K enclosure rating for harsh environments
- Shock and vibration resistant (30 g, 11 ms / 10 ... 55 Hz, 1 mm)
- Short-circuit and power-up pulse protection
- Wide ambient operating temperature range from -25 °C to +85 °C
Professional Installation Requirements
- Professional installation by a qualified technician or electrician is recommended to ensure proper wiring and compliance with safety standards.
Applications
- Industrial automation for object detection
- Harsh environment sensing with IP67, IP68, IP69K protection
- Difficult application conditions requiring reliable sensing
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Durable design reduces replacement frequency and electronic waste
- Energy-efficient operation with low current consumption
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK IQ40-40NPSKC0K proximity sensor is available for immediate purchase, ideal for industrial automation and harsh environment sensing applications.
