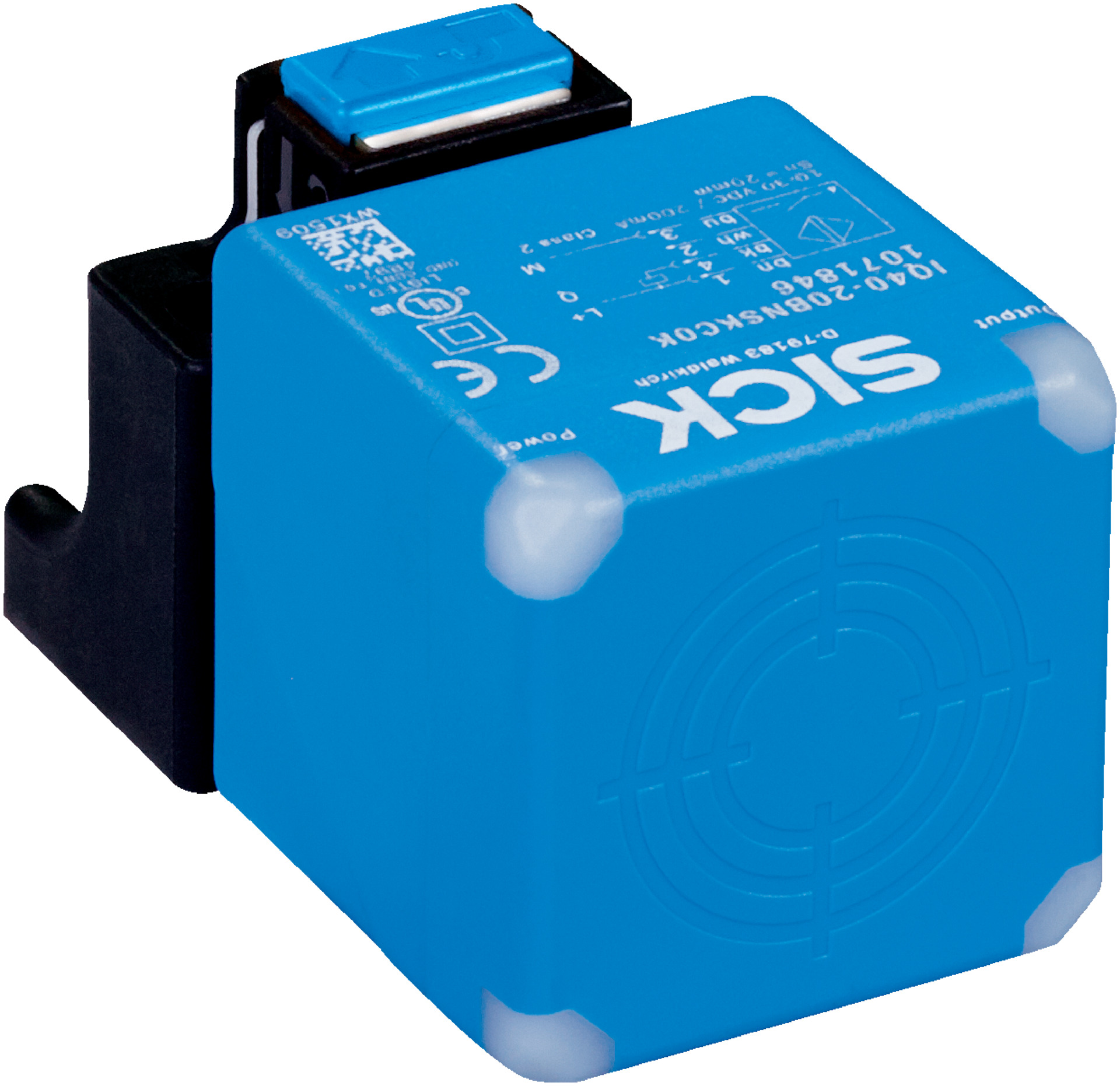

Short-body PNP Sensor | IP67, IP68, IP69K Rated | 40mm Sensing Range | by SICK
The Short-body PNP sensor is designed for reliable object detection in industrial automation, featuring a sensing range of 40 mm and an enclosure rating of IP67, IP68, and IP69K for harsh environments. With a PNP complementary switching output and a robust plastic housing, this sensor ensures durability and performance in challenging conditions, making it ideal for various applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 10 V pp
- Voltage drop: ≤ 2 V
- Time delay before availability: ≤ 200 ms
- Hysteresis: 3% to 15%
- Reproducibility: ≤ 6%
- Temperature drift of sensing range: ± 10%
- Continuous current Ia: ≤ 200 mA
- No load current: 12.5 mA
- Switching output: PNP complementary
- Switching frequency: 4.5 Hz
- Connection type: Male connector M12, 4-pin
- Enclosure rating: IP67, IP68, IP69K
- Shock and vibration resistance: 30 g, 11 ms / 10 to 55 Hz, 1 mm
- Ambient operating temperature: -25 °C to +85 °C
- Ambient storage temperature: -40 °C to +85 °C
- Housing material: Plastic PA 66
- Sensing face material: Plastic PA 66
- Short-circuit and power-up pulse protection included
- Dimensions (H x L x W): 40mm x 66mm x 40mm
- Weight: 0.1 kg
Key Features
- Short-body housing design
- Non-flush installation type
- Sensing range of 40 mm with safe sensing range of 32.4 mm
- Switching frequency of 4.5 Hz
- PNP complementary switching output
- Male connector M12, 4-pin connection
- Electrical wiring: DC 4-wire
- Enclosure rating IP67, IP68, IP69K for high protection
- Shock and vibration resistance: 30 g, 11 ms / 10 ... 55 Hz, 1 mm
- Operating temperature range from -25 °C to +85 °C
- Short-circuit and power-up pulse protection included
- Housing and sensing face made of durable Plastic PA 66
Professional Installation Requirements
- Installation by qualified personnel recommended to ensure correct wiring and mounting according to manufacturer guidelines.
Applications
- Industrial automation for object detection
- Harsh environment sensing with IP67, IP68, IP69K protection
- Difficult application conditions requiring reliable sensing
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable design reduces replacement frequency and waste
- Energy-efficient operation with low power consumption
- Complies with China-RoHS for reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK for detailed warranty terms.
Available Now
The SICK IQ40-40NPPKC0KS06 sensor is available for immediate purchase, ideal for industrial automation and harsh environment sensing applications.
