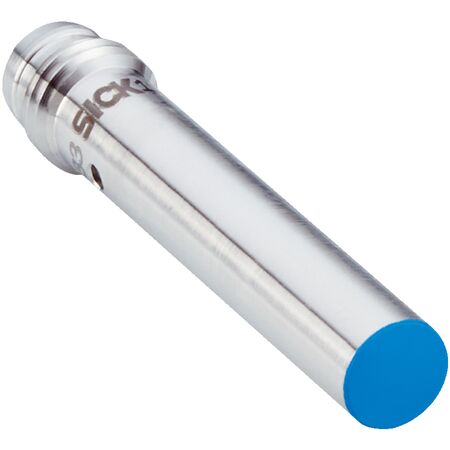

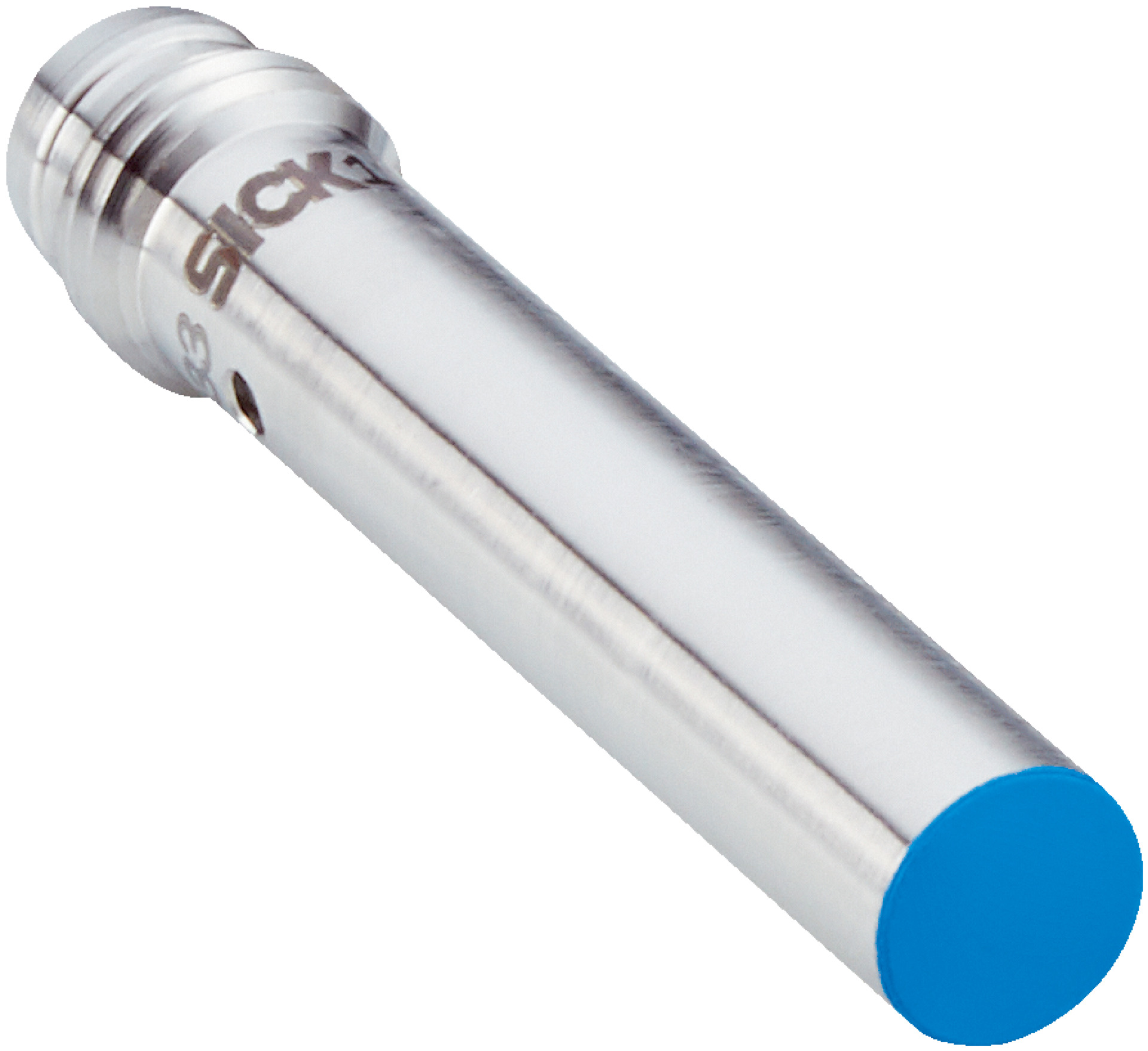

Short-Body Proximity Sensor | IP67 Rated | 1,500 Hz Switching Frequency | Stainless Steel Housing | by SICK
The Short-Body Proximity Sensor is designed for industrial automation, featuring a high switching frequency of 1,500 Hz and an IP67 rated enclosure for dust and water protection. With a sensing range of 3 mm and PNP normally open output, it's perfect for machine safety and control systems, ensuring precise detection in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Switching frequency: 1,500 Hz
- Switching output: PNP, normally open
- Connection type: Connector M8, 3-pin
- Enclosure rating: IP67
- Hysteresis: 1% to 10%
- Reproducibility: ≤ 2%
- Temperature drift of sensing range: ≤ 10%
- Continuous current: ≤ 200 mA
- Shock resistance: 30 g, 11 ms
- Vibration resistance: 10 to 55 Hz, 1 mm
- Communication interface: IO-Link V1.1, COM2 (38.4 kBaud)
- Cycle time: 10.4 ms
- Process data length: 1 Byte
- Process data structure: Bit 0 = Sr reached, Bit 1 = Sa reached
- Dimensions (H x L x W): 6.5mm x 40mm x 6.5mm
- Weight: 0.1 kg
Key Features
- Short-body housing with 6.5 mm diameter
- Flush installation type
- Sensing range of 3 mm with safe sensing range of 2.43 mm
- High switching frequency of 1,500 Hz
- PNP normally open switching output
- Connector M8, 3-pin connection
- Visual adjustment indicator and IO-Link communication
- Triple sensing range capability
- IP67 rated enclosure for dust and water protection
- Stainless steel V2A housing with plastic sensing face
- Shock and vibration resistant (30 g, 11 ms / 10-55 Hz, 1 mm)
- Short-circuit and power-up pulse protection
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper flush mounting and electrical connection according to safety standards.
Applications
- Industrial automation for object detection
- Machine safety and control systems
- Factory automation requiring precise sensing
- Robotics and process monitoring
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable stainless steel housing extends product life reducing waste
- Energy-efficient operation minimizes power consumption
- Complies with China-RoHS for reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK IHM06-03BPSVT0K sensor is available for immediate purchase, ideal for industrial automation and safety applications requiring precise and reliable sensing.
