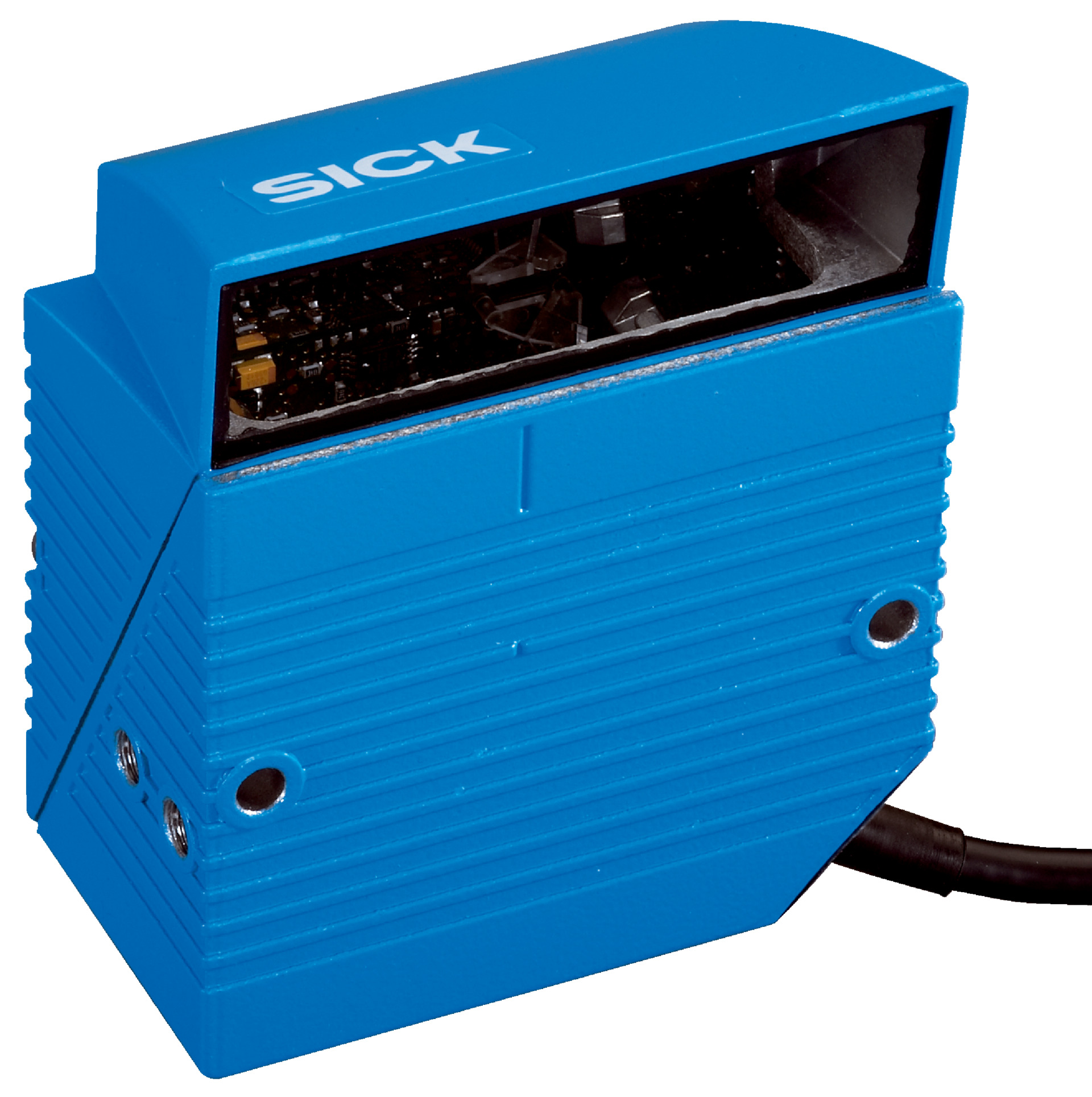

Short Range Barcode Scanner CLV622-2000 | 55mm to 200mm Reading Distance | 400Hz to 1200Hz Scanning Frequency | IP65 Rated | by SICK
The CLV622-2000 short range barcode scanner excels in industrial automation, offering a reading distance of 55 mm to 200 mm and a high scanning frequency of 400 Hz to 1,200 Hz. With its robust aluminum die cast housing and IP65 rating, it's built for durability in demanding environments. Ideal for logistics, packaging, and manufacturing applications, this scanner reads various 1D barcodes efficiently, ensuring quality control and tracking.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Short Range Barcode Scanner CLV622-2000 | 55mm to 200mm Reading Distance | 400Hz to 1200Hz Scanning Frequency | IP65 Rated | by SICK
Brand: SICK
SKU: 1041796
Alternatively Known As: SICK CLV622, CLV622 Barcode Scanner, Short Range Barcode Reader, Industrial Line Scanner
Technical Specifications
- Reading distance: 55 mm to 200 mm
- Scanning frequency: 400 Hz to 1,200 Hz
- Code resolution: 0.15 mm to 0.5 mm
- Supply voltage: 10 V DC to 30 V DC
- Power consumption: 4.5 W
- Housing material: Aluminum die cast
- Enclosure rating: IP65
- Protection class: III
- Weight: 250 g without cable
- Interfaces: PROFINET, EtherCAT, Serial (RS-232, RS-422, RS-485), CAN, CANopen, PROFIBUS DP
- Optical focus: Fixed
- Light source: Visible red laser, 655 nm
- Laser class: 2 (complies with IEC 60825-1:2014+A11:2021)
- Dimensions (H x L x W): 38mm x 80mm x 66mm
- Weight: 0.25 kg
Key Features
- Short range line scanner with fixed optical focus
- Reads 1D barcodes including Code 39, Code 128, GS1 DataBar, and more
- Reading field side angle of 105° with aperture angle ≤ 50°
- High scanning frequency from 400 Hz to 1,200 Hz
- Robust aluminum die cast housing with IP65 rating
- Multiple interface options including PROFINET, EtherCAT, Serial, CAN, and PROFIBUS DP
- Laser class 2 with visible red laser at 655 nm
- Supports up to 50 codes per reading interval and up to 1,500 characters
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and compliance with safety standards.
Applications
- Industrial automation for barcode reading
- Logistics and packaging for 1D code scanning
- Manufacturing for quality control and tracking
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
- AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing waste
- Energy-efficient operation with low power consumption of 4.5 W
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK CLV622-2000 barcode scanner is available for immediate purchase, ideal for industrial and manufacturing environments requiring reliable short-range barcode reading.
