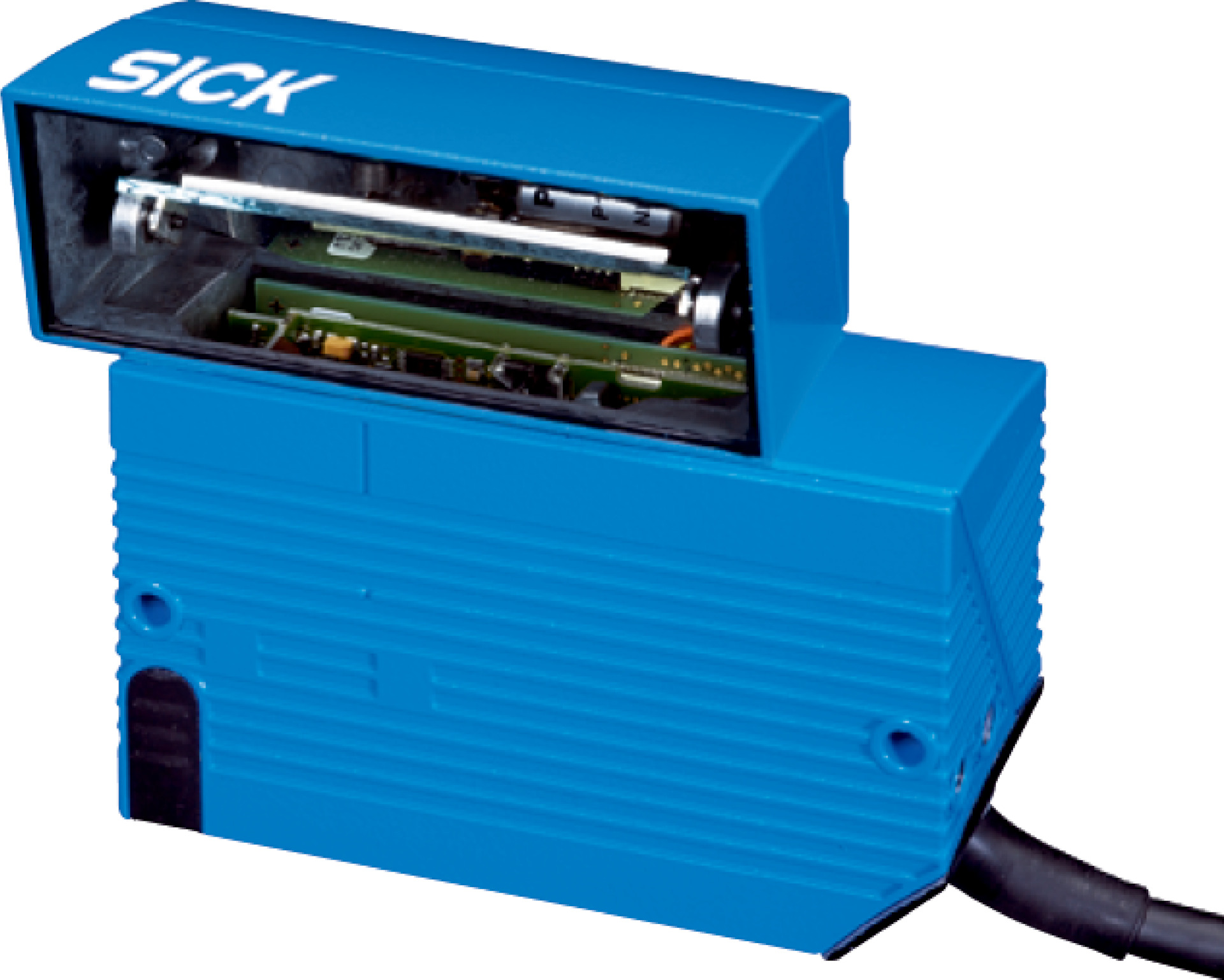

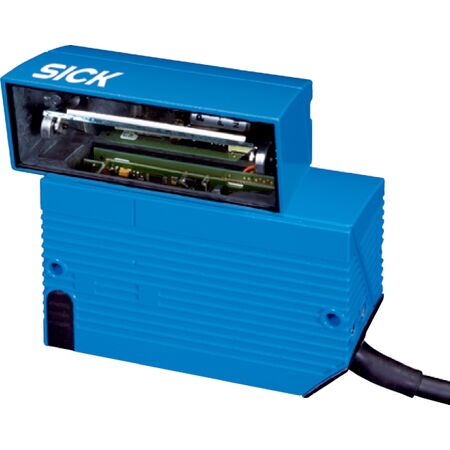

Short Range Barcode Scanner | Fixed Optical Focus | IP65 Rated | by SICK
The Short Range Barcode Scanner CLV632-6000 is designed for efficient barcode reading in industrial automation. With a fixed optical focus and an oscillating mirror reading field, it supports all current 1D barcode types. Its robust aluminum housing and IP65 rating ensure durability in demanding environments, making it ideal for logistics, manufacturing, and quality control applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Short Range Barcode Scanner | Fixed Optical Focus | IP65 Rated | by SICK
Brand: SICK
SKU: 1041996
Alternatively Known As: SICK CLV632, CLV632 Barcode Scanner, Short Range Barcode Reader, Industrial Line Scanner, Laser Barcode Reader
Technical Specifications
- Version: Short Range
- Connection type: Cable with 1 x 15-pin D-Sub HD male connector (0.9 m)
- Reading field: Oscillating mirror
- Sensor type: Line scanner
- Optical focus: Fixed focus
- Light source: Visible red laser, 655 nm
- Laser class: 2, compliant with IEC 60825-1:2014+A11:2021
- Aperture angle: ≤ 50°
- Reading distance: 45 mm to 245 mm
- Scanning frequency: 400 Hz to 1200 Hz
- Code resolution: 0.2 mm to 0.5 mm
- Oscillating mirror functions: Fixed (adjustable position), oscillating (variable or fixed amplitude), one shot
- Oscillation frequency: 0.5 Hz to 6.25 Hz
- Angle of deflection: –20° to 20°
- Supply voltage: 18 V DC to 30 V DC
- Power consumption: 6 W
- Housing material: Aluminum die cast
- Enclosure rating: IP65 (EN 60529)
- Protection class: III (EN 61140)
- Weight: 420 g with connecting cable
- MTBF: 100,000 hours
- MTTF (Laser diode): 40,000 hours
- Readable code structures: 1D codes including Code 39, Code 128, GS1 DataBar, UPC, EAN, and others
- Number of codes per scan: 1 to 20 (Standard decoder), 1 to 6 (SMART decoder)
- Number of codes per reading interval: 1 to 50 (auto-discriminating)
- Number of characters per reading interval: 5,000 (500 for multiplexer function in CAN operation)
- Interfaces: PROFINET, EtherCAT, Serial (RS-232, RS-422, RS-485), CAN, CANopen, PROFIBUS DP
- Digital inputs: 4
- Digital outputs: 4
- Electromagnetic compatibility: EN 61000-6-3 / EN 61000-6-2
- Vibration resistance: EN 60068-2-6
- Shock resistance: EN 60068-2-27
- Operating temperature: 0°C to +40°C
- Storage temperature: –20°C to +70°C
- Relative humidity: 90%, non-condensing
- Ambient light immunity: 2,000 lx on barcode
- Bar code print contrast (PCS): ≥ 60%
- Dimensions (H x L x W): 41mm x 95mm x 107mm
- Weight: 0.42 kg
Key Features
- Short range line scanner with fixed optical focus
- Oscillating mirror reading field with adjustable position and amplitude
- Visible red laser light source (655 nm) with laser class 2 compliance
- High scanning frequency from 400 Hz to 1200 Hz
- Supports reading of all current 1D barcode types
- Multiple communication interfaces including PROFINET, EtherCAT, CAN, CANopen, PROFIBUS DP, and serial
- Robust aluminum die cast housing with IP65 rating
- Operating temperature range from 0°C to +40°C
- Equipped with 6 LEDs and acoustic indicators for status feedback
- Optional microSD memory card for configuration storage
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial sensor integration and electrical safety standards.
Applications
- Industrial automation for barcode reading
- Logistics and warehouse management
- Manufacturing process control
- Quality control and inspection
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable aluminum housing reduces need for frequent replacements
- Energy-efficient laser technology minimizes power consumption
- Long MTBF of 100,000 hours reduces electronic waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK CLV632-6000 Short Range Line Scanner Barcode Reader is available for immediate purchase, ideal for industrial automation and barcode scanning applications.
