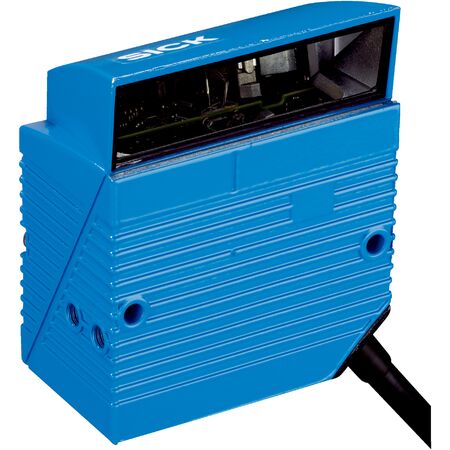

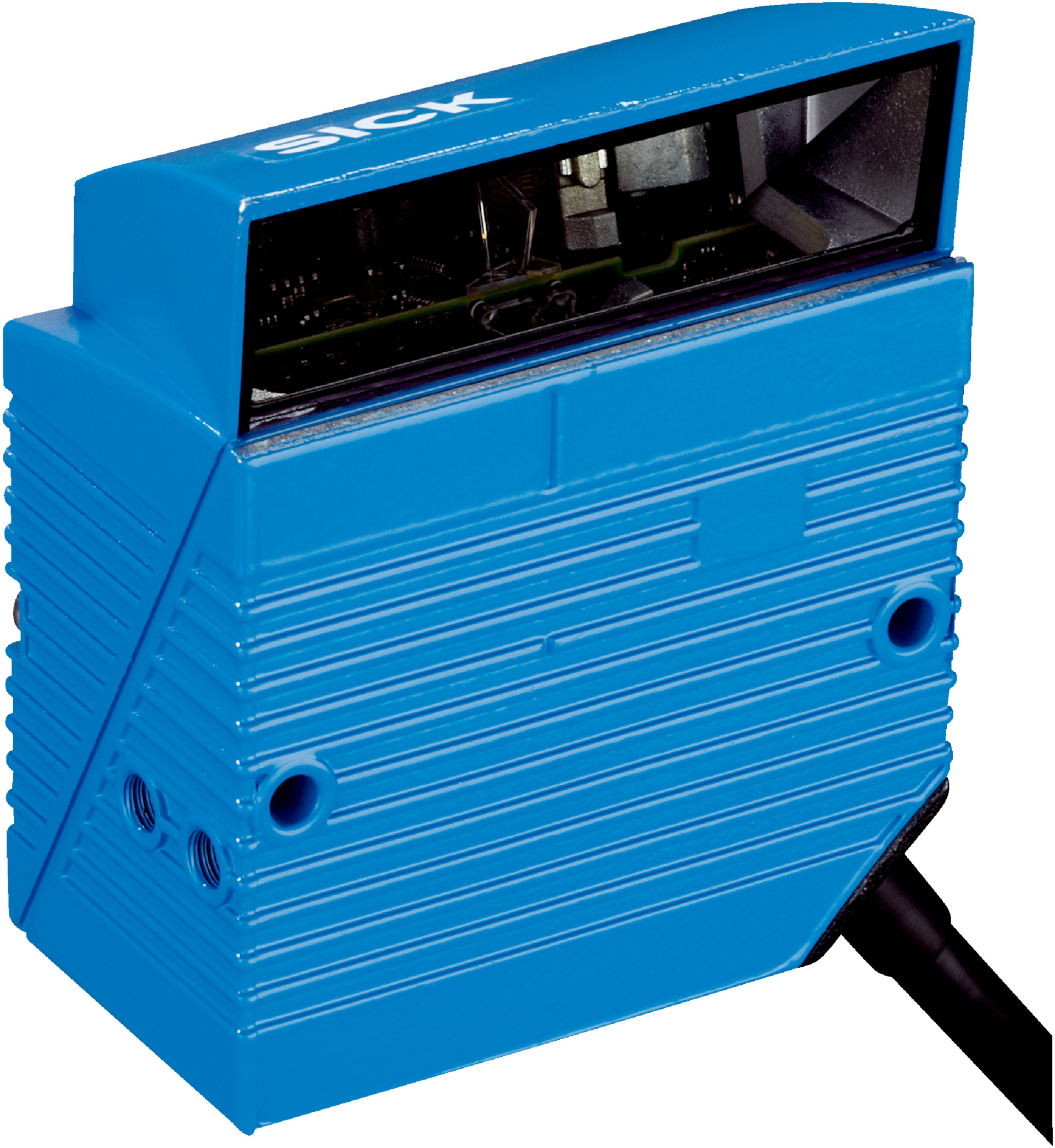

Short Range Raster Barcode Scanner | 1D Code Reading | IP65 Rated | by SICK
The Short Range Raster Barcode Scanner CLV612-C3000 excels in industrial automation, reading 1D barcodes like Code 39 and UPC with high scanning frequencies from 400 Hz to 1000 Hz. Its robust aluminum housing and IP65 rating ensure durability in demanding environments, making it perfect for logistics, manufacturing, and quality control applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Version: Short Range
- Connection type: Cable with 1 x 15-pin D-Sub HD male connector (0.9 m)
- Reading field: Side (105°)
- Sensor type: Raster scanner
- Optical focus: Fixed focus
- Light source: Visible red laser, 655 nm
- Laser class: 2 (complies with IEC 60825-1:2014+A11:2021)
- Aperture angle: ≤ 50°
- Reading distance: 28 mm to 78 mm
- Scanning frequency: 400 Hz to 1000 Hz
- Code resolution: 0.1 mm to 0.2 mm
- Raster height: 15 mm, 8 lines at 185 mm distance
- Supply voltage: 10 V DC to 30 V DC
- Power consumption: 2.8 W
- Housing material: Aluminum die cast
- Window material: Glass
- Enclosure rating: IP65
- Protection class: III
- Weight: 295 g including cable
- MTBF: 100,000 hours
- MTTF (Laser diode): 40,000 hours
- Readable code structures: 1D codes including Code 39, Code 128, Code 93, Codabar, UPC/GTIN/EAN, Interleaved 2 of 5, Pharmacode
- Print ratio: 2:1 to 3:1
- Number of codes per scan: 1 to 10 (standard decoder)
- Number of codes per reading interval: 1 to 50 (auto-discriminating)
- Number of characters per reading interval: 1,500 (500 for multiplexer function)
- Interfaces: RS-232 serial, CAN sensor network
- Digital inputs: 4
- Digital outputs: 4
- Indicators: 1 RGB LED, beeper/buzzer
- Configuration software: SOPAS ET
- Operating temperature: 0 °C to +40 °C
- Storage temperature: -20 °C to +70 °C
- Relative humidity: 90%, non-condensing
- EMC: EN 61000-6-4 and EN 61000-6-2
- Vibration resistance: EN 60068-2-6
- Shock resistance: EN 60068-2-27
- Dimensions (H x L x W): 38mm x 80mm x 66mm
- Weight: 0.3 kg
Key Features
- Short range raster scanner with fixed optical focus
- Reads 1D barcodes including Code 39, Code 128, UPC, EAN, and more
- High scanning frequency from 400 Hz to 1000 Hz
- Robust aluminum die cast housing with IP65 rating
- Multiple interface options including RS-232 and CAN
- Visible red laser light source (655 nm) with laser class 2 safety
- Digital inputs and outputs for flexible integration
- RGB LED and acoustic indicators for status feedback
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and compliance with safety standards.
Applications
- Industrial automation for barcode reading
- Logistics and warehouse management
- Manufacturing process control
- Quality control and inspection systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable design reduces replacement frequency and electronic waste
- Low power consumption at 2.8 W supports energy efficiency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific terms.
Available Now
The SICK CLV612-C3000 Short Range Raster Scanner is available for immediate purchase, ideal for industrial barcode reading and automation applications.
