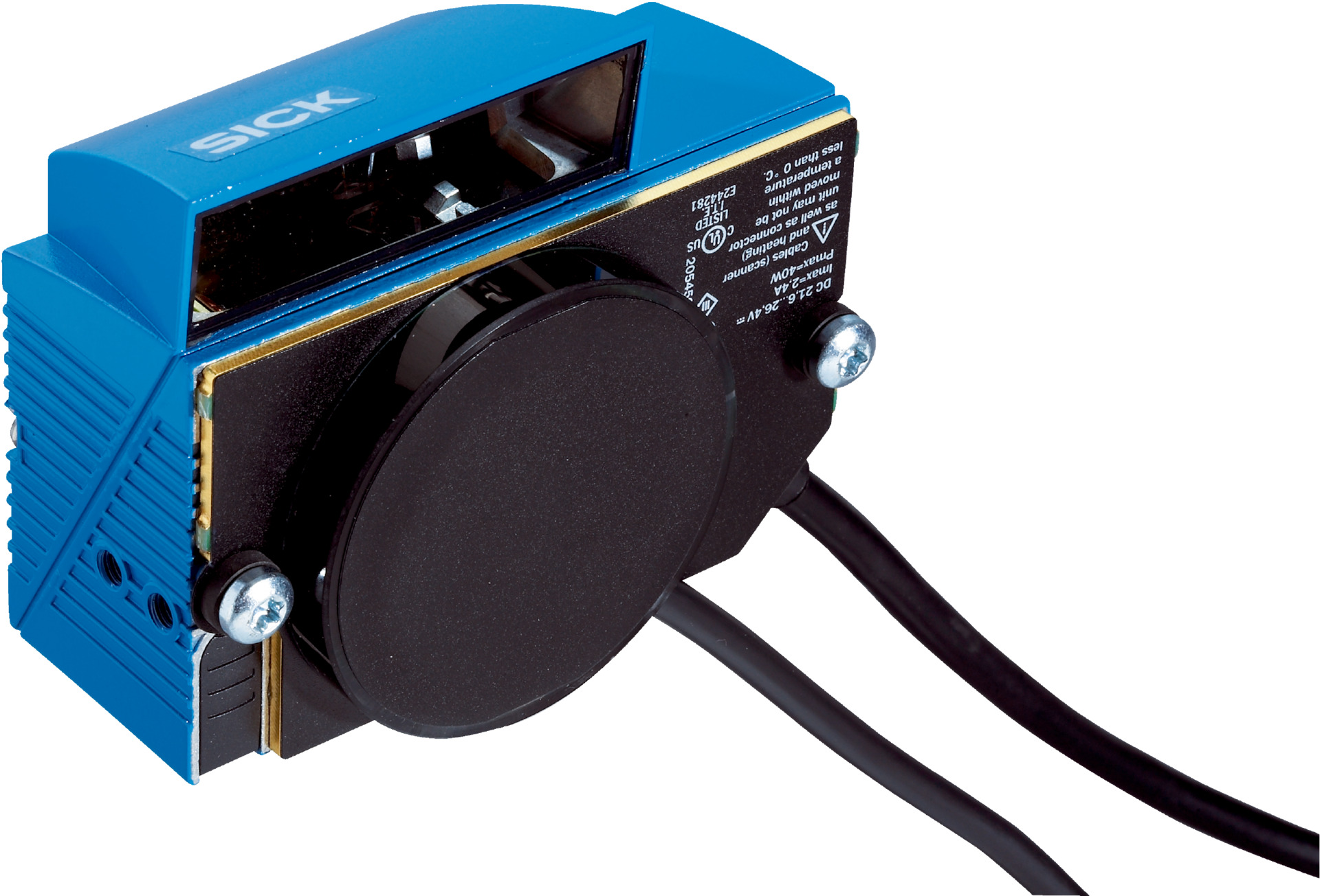

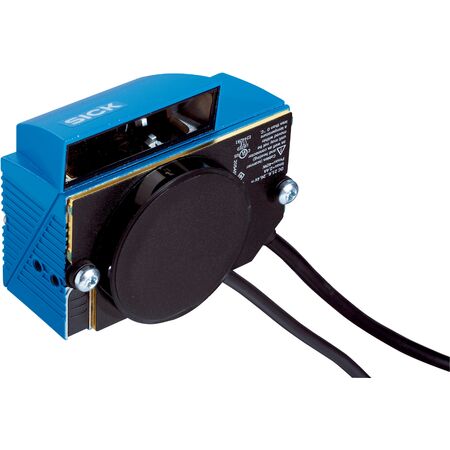

Short Range Raster Barcode Scanner | IP65 Rated | 1D Code Reading | 400-1200 Hz Scanning Frequency | by SICK
The SICK CLV632-3000F0 Short Range Raster Barcode Scanner excels in industrial automation, offering reliable 1D barcode reading with a scanning frequency of 400 to 1200 Hz. Its IP65 rated aluminum housing ensures durability in harsh environments, making it perfect for cold storage and logistics applications. With a reading distance of 44 mm to 256 mm and multiple interface options, this scanner is designed for efficiency and versatility in demanding settings.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Short Range Raster Barcode Scanner | IP65 Rated | 1D Code Reading | 400-1200 Hz Scanning Frequency | by SICK
Brand: SICK
SKU: 1056858
Alternatively Known As: SICK CLV632 Barcode Scanner, SICK Raster Scanner, Industrial Barcode Reader, Short Range Laser Scanner
Technical Specifications
- Connection type: Cable with 15-pin D-Sub HD male connector and open-ended 3-wire cable
- Supply voltage: ≤ 24 V DC, ±10%
- Power consumption: 40 W
- Housing material: Aluminum die cast with glass window
- Enclosure rating: IP65 (EN 60529)
- Protection class: III (EN 61140)
- Reading distance: 44 mm to 256 mm
- Scanning frequency: 400 Hz to 1,200 Hz
- Code resolution: 0.2 mm to 0.5 mm
- Readable code structures: 1D codes including Code 39, Code 128, GS1 DataBar, UPC, and others
- Number of codes per scan: 1 to 20 (standard decoder)
- Ambient operating temperature: -35 °C to +35 °C
- Storage temperature: -20 °C to +70 °C
- Permissible relative humidity: 90%, non-condensing
- Electromagnetic compatibility: EN 61000-6-3 / EN 61000-6-2
- Vibration resistance: EN 60068-2-6
- Shock resistance: EN 60068-2-27
- Dimensions (H x L x W): 50mm x 80mm x 96mm
- Weight: 0.54 kg
Key Features
- Short range raster scanner with fixed optical focus
- Reads 1D barcodes including Code 39, Code 128, GS1 DataBar, and more
- Reading field side angle of 105° with circular red laser spot
- Laser class 2 compliant with IEC 60825-1 standards
- High scanning frequency from 400 Hz to 1,200 Hz
- Heating element for cold storage applications
- Multiple interface options including PROFINET, EtherCAT, CAN, and Serial
- IP65 rated aluminum die cast housing for robust industrial use
- Integrated LEDs and acoustic indicators for status feedback
- Optional microSD memory card for configuration storage
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial sensor integration and electrical safety standards.
Applications
- Industrial automation for barcode reading
- Cold storage barcode scanning
- Manufacturing and logistics for 1D code reading
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable housing reduces need for frequent replacements
- Energy-efficient laser scanning technology minimizes power consumption
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK CLV632-3000F0 Short Range Raster Scanner is available for immediate purchase, ideal for industrial barcode scanning applications including cold storage environments.
