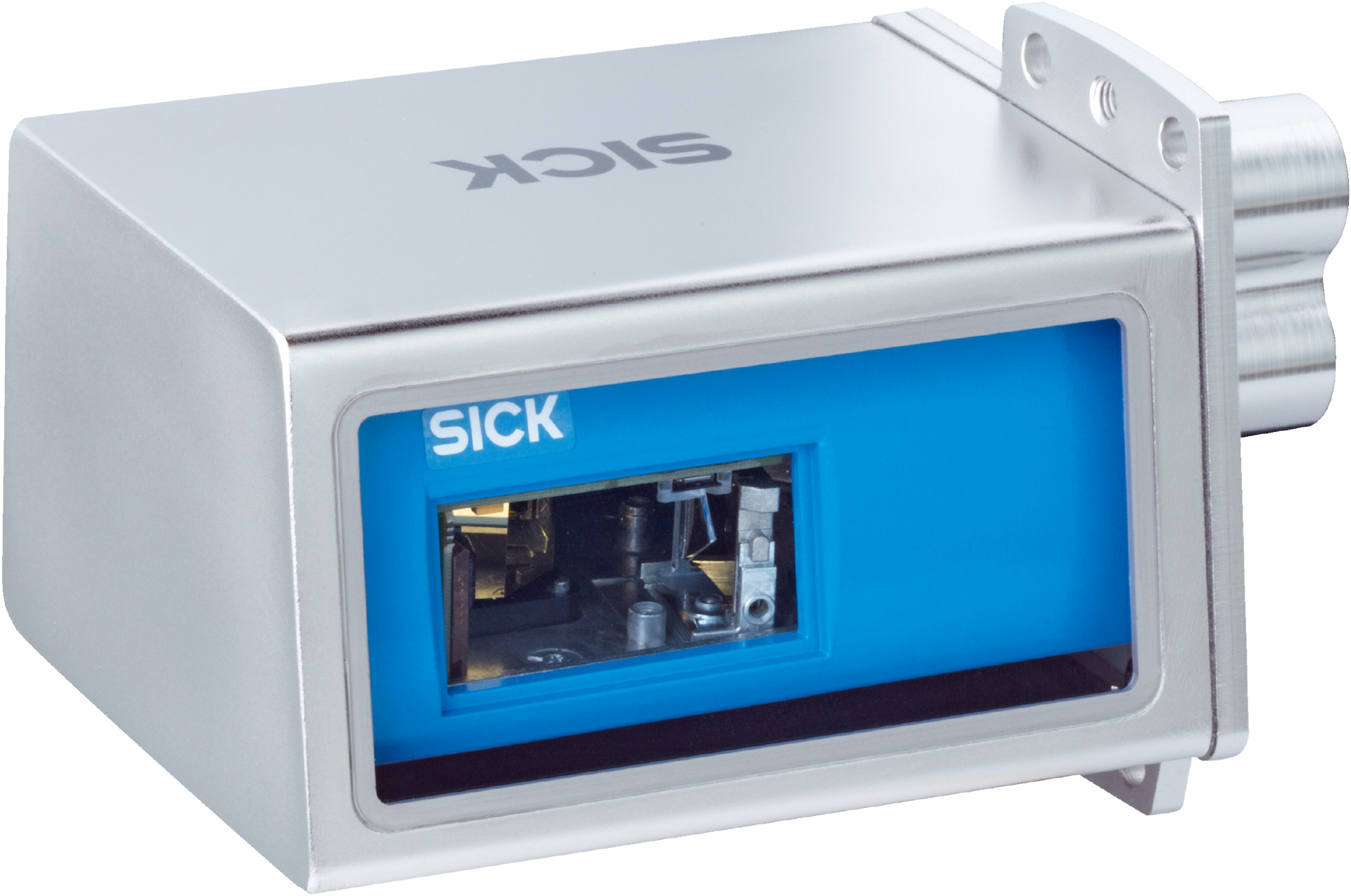

Short Range Raster Scanner | Ethernet Connectivity | IP69K Rated | High Scanning Frequency | by SICK
The Short Range Raster Scanner CLV632-1831S01 is designed for industrial automation, featuring Ethernet connectivity and a robust IP69K-rated stainless steel housing. With a high scanning frequency of 400 Hz to 1,200 Hz and the ability to read all current 1D barcode types with high resolution, it's perfect for logistics, warehousing, and manufacturing lines requiring reliable code verification.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Version: Short Range
- Connection type: Ethernet, 2 x M12 cylindrical connectors
- Reading field: Front
- Sensor type: Raster scanner
- Optical focus: Fixed focus
- Light source: Visible red laser, 655 nm, circular spot
- Laser class: 2 (complies with IEC 60825-1:2014+A11:2021)
- Aperture angle: ≤ 50°
- Reading distance: 63 mm to 270 mm
- Scanning frequency: 400 Hz to 1,200 Hz
- Code resolution: 0.2 mm to 0.5 mm
- Raster height and lines: 15 mm, 8 lines at 200 mm
- Supply voltage: 18 V DC to 30 V DC
- Power consumption: 5 W
- Housing material: Stainless steel
- Window material: Plastic
- Enclosure rating: IP69K
- Protection class: III (EN 61140)
- Weight: 890 g without cable
- MTBF: 100,000 hours
- MTTF (Laser diode): 40,000 hours
- Readable code structures: 1D codes including Code 39, Code 128, GS1 DataBar, UPC, and others
- Number of codes per scan: 1 to 20 (standard decoder)
- Data transmission rates: Ethernet 10/100 Mbit/s, CAN 20 kbit/s to 1 Mbit/s, Serial up to 115.2 kBaud
- Configuration software: SOPAS ET
- Dimensions (H x L x W): 84mm x 85mm x 154mm
- Weight: 0.89 kg
Key Features
- Short range raster scanner with fixed optical focus
- Ethernet connectivity with multiple fieldbus options including PROFINET, EtherNet/IP™, EtherCAT®, CAN, CANopen, PROFIBUS DP
- High scanning frequency from 400 Hz to 1,200 Hz
- Reads all current 1D barcode types with high resolution (0.2 mm to 0.5 mm)
- Robust stainless steel housing with IP69K rating for harsh environments
- Laser class 2 with visible red light spot at 655 nm
- Supports multiple codes per scan and high character reading capacity
- Equipped with digital inputs and outputs for flexible integration
- Comes with SOPAS ET configuration software
Professional Installation Requirements
- Installation by a qualified electrician or trained technician is recommended to ensure proper electrical connection and compliance with safety standards.
Applications
- Industrial automation for barcode reading
- Logistics and warehousing for code scanning
- Manufacturing lines requiring 1D code verification
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
- AS/NZS 3112 – Plugs and Socket-Outlets (Type I Plug)
- AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Durable stainless steel housing reduces need for frequent replacements
- Energy-efficient 5W power consumption minimizes operational energy use
- High reliability with MTBF of 100,000 hours reduces electronic waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific terms and duration.
Available Now
The SICK CLV632-1831S01 raster scanner is available for immediate purchase, ideal for industrial barcode scanning applications requiring high reliability and robust performance.
