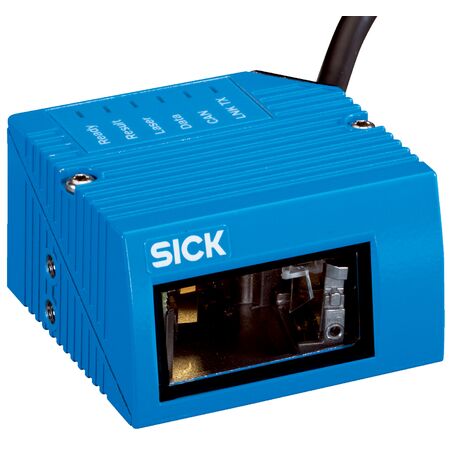

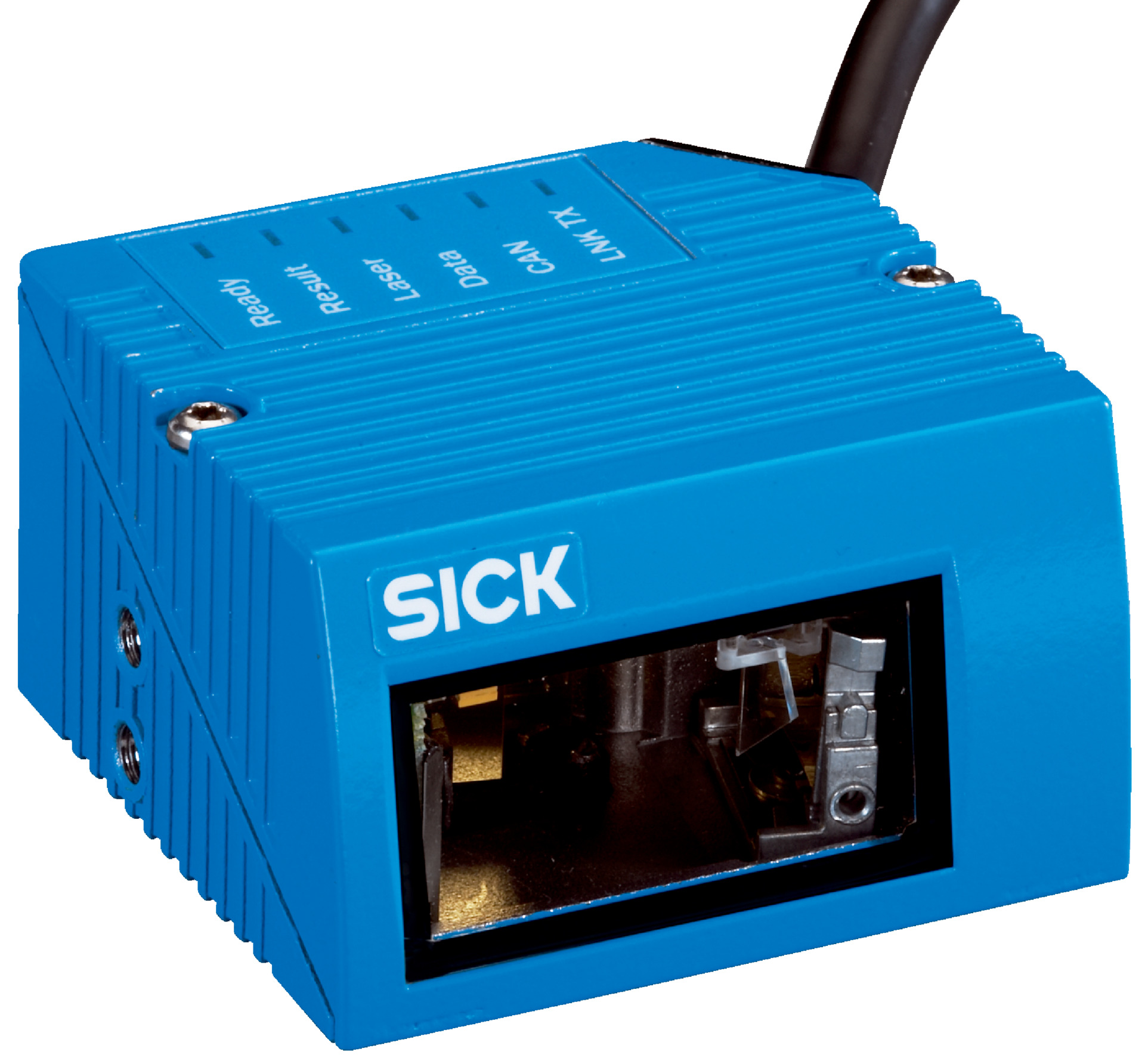

Short Range Raster Scanner SICK CLV622-1000 | IP65 Rated | 400-1200 Hz Scanning Frequency | by SICK
The SICK CLV622-1000 Short Range Raster Scanner excels in industrial barcode reading, featuring a robust aluminum die cast housing and an IP65 rating for durability. With a high scanning frequency of 400 Hz to 1,200 Hz, it efficiently reads 1D barcodes including Code 39 and Code 128, making it ideal for logistics, packaging, and manufacturing applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Short Range Raster Scanner SICK CLV622-1000 | IP65 Rated | 400-1200 Hz Scanning Frequency | by SICK
Brand: SICK
SKU: 1041794
Alternatively Known As: SICK CLV622, SICK Raster Scanner, Short Range Barcode Scanner, Industrial Barcode Reader
Technical Specifications
- Connection type: Cable with 1 x 15-pin D-Sub HD male connector (0.9 m)
- Supply voltage: 10 V DC to 30 V DC
- Power consumption: 4.5 W
- Housing material: Aluminum die cast
- Enclosure rating: IP65
- Protection class: III (VDE 0106/IEC 1010-1)
- Reading distance: 55 mm to 200 mm
- Scanning frequency: 400 Hz to 1,200 Hz
- Code resolution: 0.15 mm to 0.5 mm
- Laser class: 2, compliant with IEC 60825-1:2014+A11:2021
- Readable code structures: 1D codes including Code 39, Code 128, GS1 DataBar, UPC, and others
- Interfaces: PROFINET, EtherCAT, CAN, CANopen, PROFIBUS DP, Serial (RS-232, RS-422, RS-485)
- Operating temperature: 0 °C to +40 °C
- Storage temperature: -20 °C to +70 °C
- Relative humidity: 90%, non-condensing
- MTBF: 100,000 hours
- MTTF (Laser diode): 40,000 hours
- Dimensions (H x L x W): 38mm x 61mm x 66mm
- Weight: 0.225 kg
Key Features
- Short range raster scanner with fixed optical focus
- Reads 1D barcodes including Code 39, Code 128, GS1 DataBar, and more
- High scanning frequency from 400 Hz to 1,200 Hz
- Robust aluminum die cast housing with IP65 rating
- Multiple interface options including PROFINET, EtherCAT, CAN, and Serial
- Laser class 2 with visible red light source at 655 nm
- Supports up to 50 codes per reading interval and 1,500 characters
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper integration and compliance with electrical standards.
Applications
- Industrial automation for barcode reading
- Logistics and packaging for 1D code scanning
- Manufacturing lines requiring precise code verification
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing waste
- Low power consumption at 4.5 W supports energy efficiency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific terms.
Available Now
The SICK CLV622-1000 Short Range Raster Scanner is available for immediate purchase, ideal for industrial barcode scanning applications.
