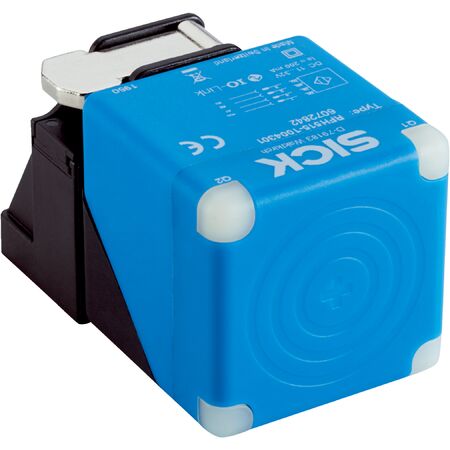

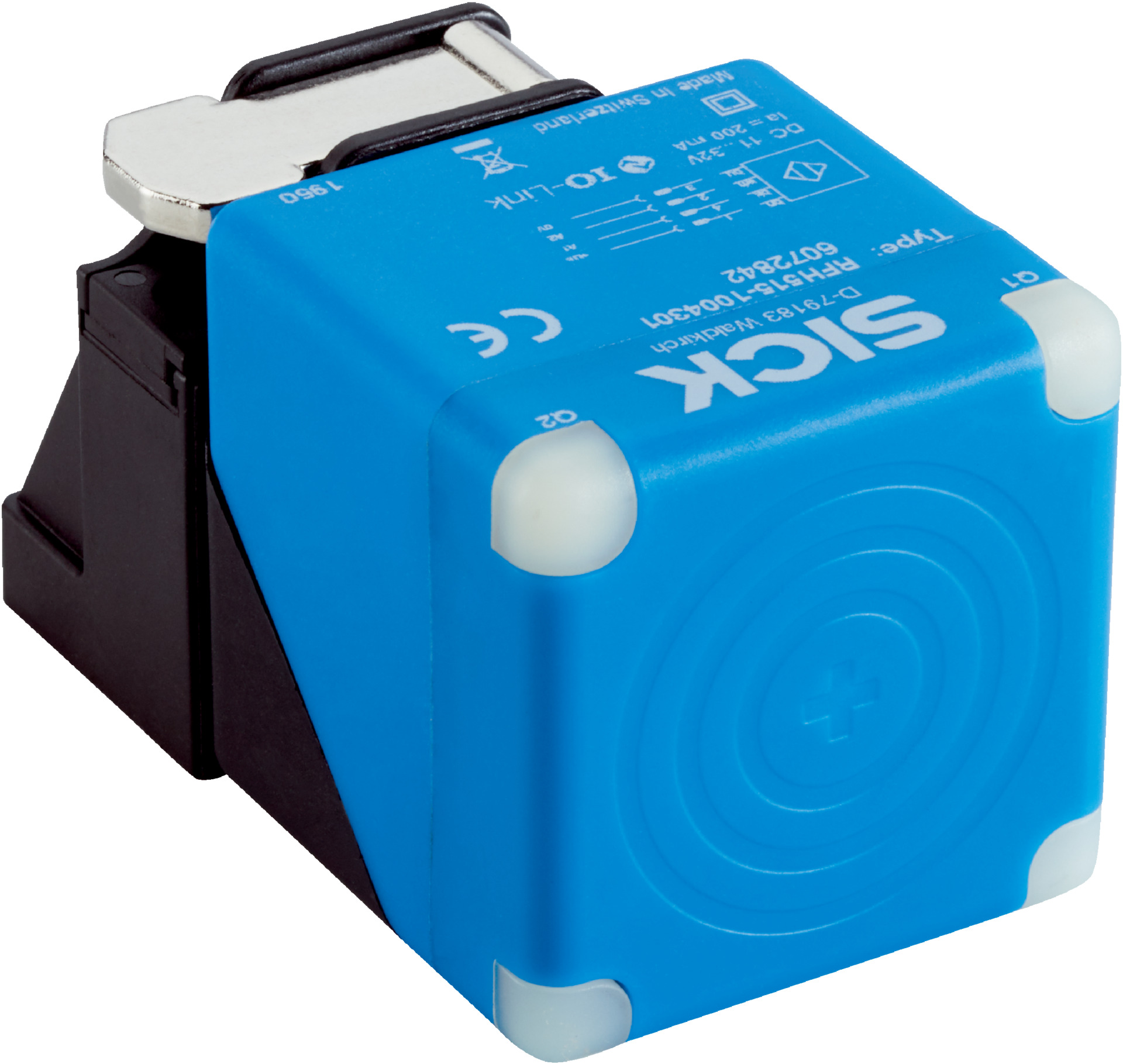

Short Range RFID Reader | HF Frequency 13.56 MHz | IP68 Enclosure | by SICK
The Short Range RFID Reader RFH515-1004301 operates at a frequency of 13.56 MHz, making it ideal for industrial automation and asset tracking. With a read range of up to 80 mm and an IP68 enclosure for dust and water protection, this device ensures reliable performance in challenging environments. Designed for easy integration via IO-Link, it features multi-color LEDs for process feedback, making it perfect for manufacturing applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Frequency band: HF (13.56 MHz)
- Carrier frequency: 13.56 MHz
- RFID standards: ISO/IEC 15693, ISO/IEC 18000-3 Mode 1
- Connection type: IO-Link V1.1, 1 x M12 4-pin male connector
- Read range: ≤ 80 mm
- Air interface data transmission rate: 26 kbit/s
- Supply voltage: 11 V DC to 32 V DC
- Power consumption: ≤ 1.8 W
- Housing material: Chromium-plated brass and blue PBTP
- Enclosure rating: IP68
- Protection class: II
- Weight: 108 g including bracket
- Design: Cubical (C44)
- MTTF: > 756 years
- Data transmission rate: COM3 (230.4 kBaud)
- Digital outputs: 1 (Q2, PNP switching in IO-Link mode), 2 (Q1, Q2, PNP switching in SIO mode)
- Optical indicators: 4 multi-color LEDs
- Ambient operating temperature: -25 °C to +80 °C
- Storage temperature: -25 °C to +80 °C
- Permissible relative humidity: 0% to 95%, non-condensing
- Dimensions (H x L x W): 67mm x 40mm x 40mm
- Weight: 0.108 kg
Key Features
- Short range RFID read/write device with integrated antenna
- Operates at HF frequency band 13.56 MHz
- Supports ISO/IEC 15693 and ISO/IEC 18000-3 Mode 1 RFID standards
- Connection via IO-Link with 1 x M12, 4-pin male connector
- Read range up to 80 mm
- Power consumption ≤ 1.8 W
- Housing made of chromium-plated brass and blue PBTP
- Enclosure rating IP68 for dust and water protection
- Protection class II
- Multi-color 4 LEDs for process feedback
- High vibration and shock resistance
- Wide ambient operating temperature range from -25 °C to +80 °C
Professional Installation Requirements
- Professional installation by a qualified technician or electrician is recommended to ensure proper connection and compliance with electrical standards.
Applications
- Industrial automation for short-range RFID reading and writing
- Process data communication via IO-Link interface
- Asset tracking and identification in manufacturing environments
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3112 – Plugs and Socket-Outlets (Type I Plug)
Environmental Benefits
- Low power consumption of ≤ 1.8 W reduces energy usage
- Durable IP68 rated housing extends product lifespan, reducing waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK RFH515-1004301 RFID read/write device is available for immediate purchase, ideal for industrial automation and identification applications.
