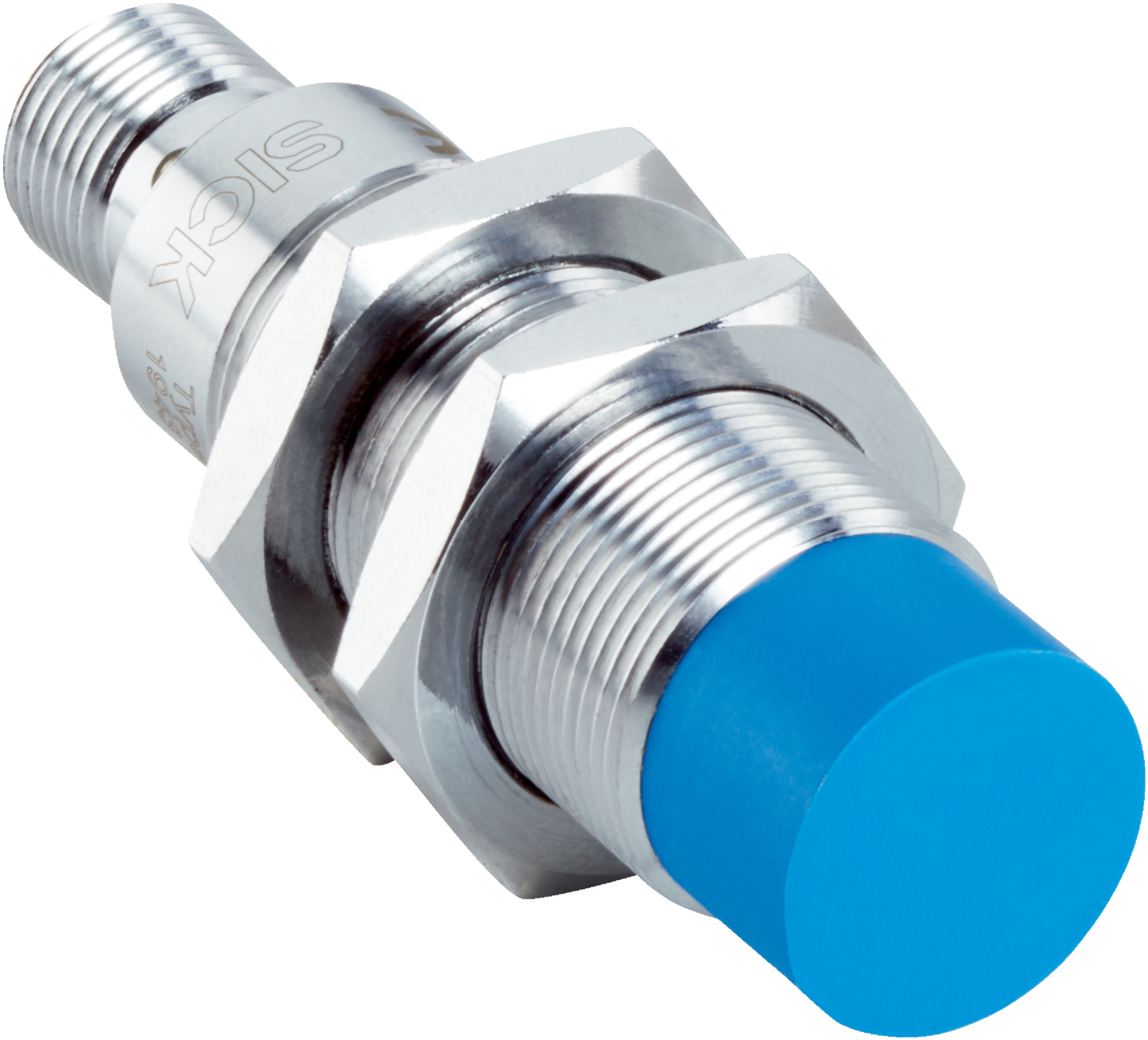

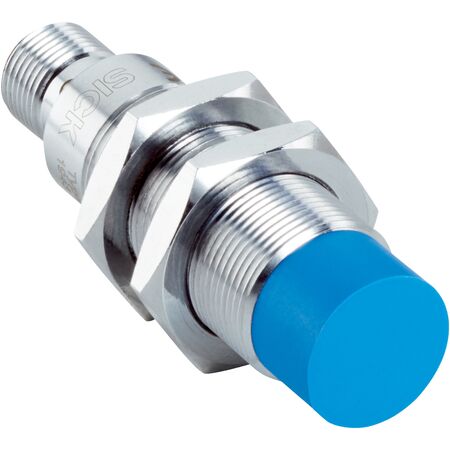

Short Range RFID Reader | IO-Link RFID Sensor | M18 Design | IP67 Rated | by SICK
The Short Range RFID Reader RFH505-1004301 is designed for industrial automation, featuring an integrated antenna and operating at a frequency of 13.56 MHz. With its compact M18 design and IP67 protection rating, it excels in harsh environments, making it perfect for asset tracking and process control applications. The device also offers low power consumption and multi-color LED indicators for effective process feedback.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Dimensions (H x L x W): 18mm x 50mm x 18mm
- Weight: 0.1 kg
Key Features
- Short range RFID read/write device with integrated antenna
- Operates at HF frequency band (13.56 MHz) with ISO/IEC 15693 and ISO/IEC 18000-3 Mode 1 standards
- IO-Link V1.1 communication interface with process data, parameterization, and diagnosis functions
- Compact cylindrical M18 design with brass chromium-plated housing and blue PBTP
- High protection rating IP67 suitable for harsh environments
- Low power consumption ≤ 1.8 W
- Multi-color LED indicators for process feedback
- Wide ambient operating temperature range from –25 °C to +80 °C
- Robust vibration and shock resistance compliant with IEC standards
Professional Installation Requirements
- Installation by qualified personnel familiar with IO-Link devices and industrial RFID systems is recommended to ensure proper integration and operation.
Applications
- Industrial automation for short range RFID reading and writing
- Process control and monitoring with IO-Link interface
- Asset tracking and identification in manufacturing environments
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3112 – Plugs and Socket-Outlets (Type I Plug)
Environmental Benefits
- Low power consumption reduces energy usage
- Durable housing and long MTTF (> 756 years) minimize waste and replacement frequency
- Compliance with China-RoHS ensures reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to SICK official documentation for details.
Available Now
The SICK RFH505-1004301 RFID read/write device is available for immediate purchase, ideal for industrial automation and asset tracking applications.
