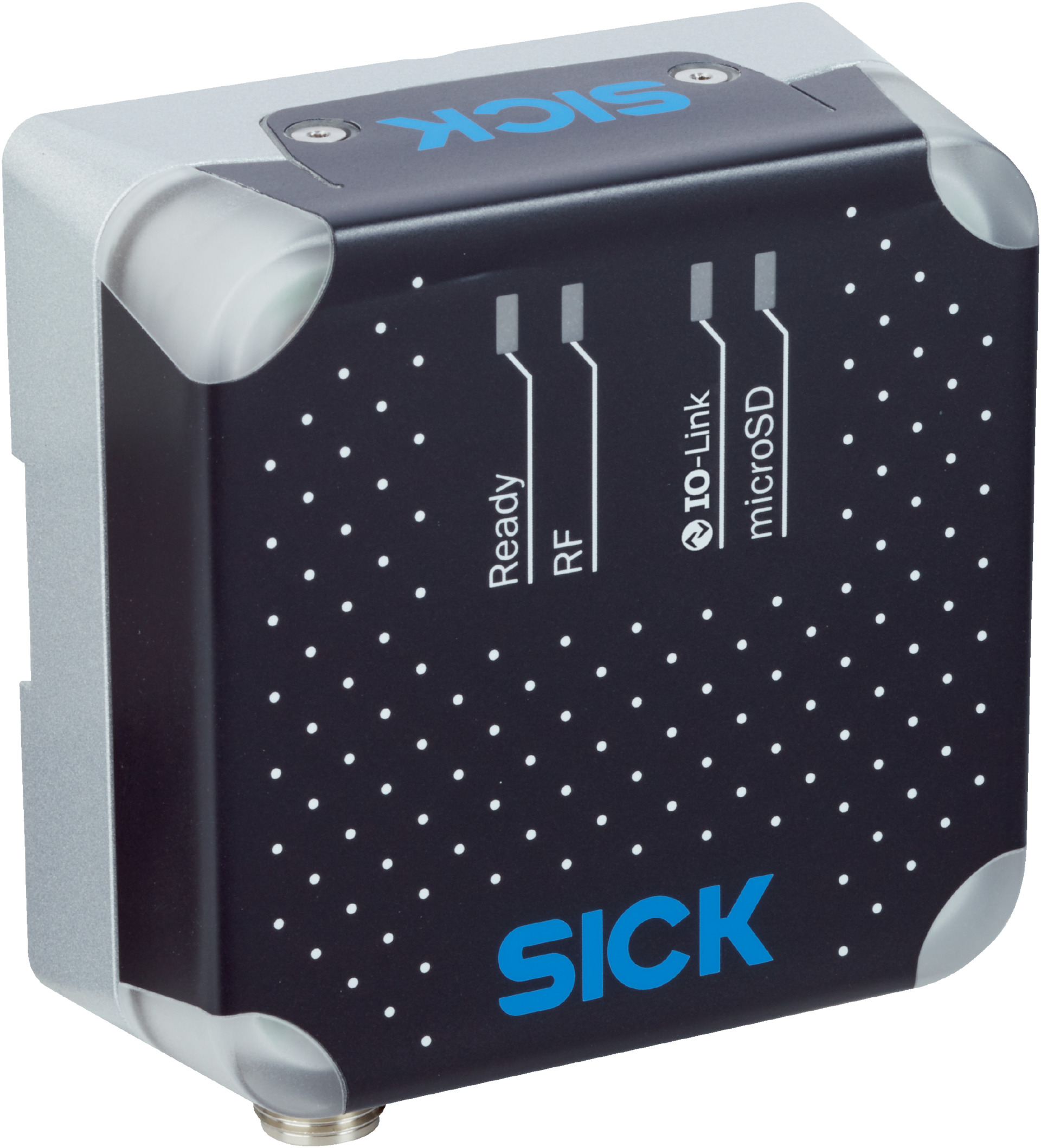

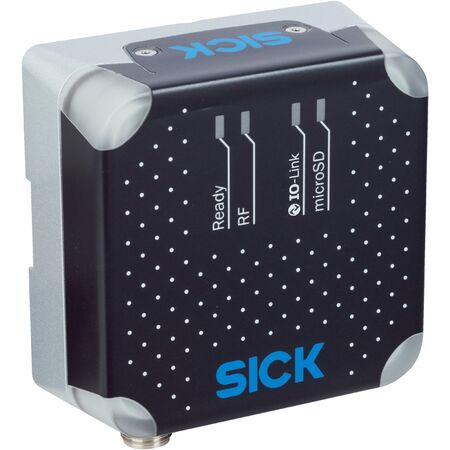

Short Range RFID Reader | UHF 860-960 MHz | Integrated Antenna | IP67 Rated | by SICK
The Short Range RFID Reader RFU610-10705 operates in the UHF frequency band (860 MHz to 960 MHz) and features an integrated antenna for efficient read/write capabilities. Ideal for industrial automation and asset tracking, this device supports EPCglobal UHF Class 1 Generation 2 standards and offers a robust IP67 enclosure for dust and water protection. With a compact design and low power consumption, it’s perfect for logistics and manufacturing applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Frequency band: UHF (860 MHz to 960 MHz)
- Carrier frequency: 920.625 MHz to 924.375 MHz
- Output power: 25 mW (ERP, 14 dBm)
- RFID standard: EPCglobal UHF Class 1 Generation 2, ISO/IEC 18000-6 C, RAIN
- Modulation: PR-ASK
- Connection type: IO-Link V1.1
- Aperture angle: 110°
- Read range: ≤ 0.5 m
- Antenna: Integrated, circular polarization
- Axial ratio: Typ. 2 dB
- Front-to-back ratio: > 5 dB
- Connection interfaces: 1 x M12 4-pin male connector, 1 x M8 4-pin socket, 1 x USB 5-pin micro-B socket
- Supply voltage: 18 V DC to 30 V DC
- Power consumption: 6 W, standby 3 W
- Housing material: Aluminum die cast and Plastic (PPS)
- Enclosure rating: IP67
- Protection class: III
- Weight: 313 g
- MTBF: 22.25 years
- EMC: EN 301489-1 V2.1.1 (2017) / EN 301489-3 V1.6.1 (2013)
- Vibration resistance: IEC 60068-2-6:2007, IEC 60068-2-64:2008
- Shock resistance: EN 60068-2-27:2008
- Operating temperature: -25 °C to +50 °C
- Storage temperature: -40 °C to +70 °C
- Relative humidity: 90%, non-condensing
- Dimensions (H x L x W): 38mm x 92mm x 80mm
- Weight: 0.313 kg
Key Features
- Short range RFID read/write device with integrated antenna
- UHF frequency band (860 MHz to 960 MHz) with carrier frequency 920.625 MHz to 924.375 MHz
- Output power of 25 mW (ERP, 14 dBm) with adjustable transmitting power
- Supports EPCglobal UHF Class 1 Generation 2, ISO/IEC 18000-6 C, RAIN RFID standards
- Circular polarization with axial ratio typically 2 dB and front-to-back ratio greater than 5 dB
- Connection via IO-Link with process data, parameterization, and diagnosis functions
- Enclosure rated IP67 for dust and water protection
- Housing made of aluminum die cast and plastic (PPS)
- Operating temperature range from -25 °C to +50 °C
- Equipped with 4 multi-color LEDs for device status and process feedback
Professional Installation Requirements
- Installation by qualified personnel familiar with IO-Link and RFID systems is recommended to ensure proper setup and compliance with safety standards.
Applications
- Industrial automation for asset tracking and identification
- Logistics and warehouse management
- Manufacturing process control
- Short range RFID reading and writing tasks
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3112 – Plugs and Socket-Outlets (Type I Plug)
Environmental Benefits
- Low power consumption of 6 W (3 W standby) reduces energy usage
- Durable IP67 rated housing extends product lifespan and reduces waste
- Supports efficient asset tracking to optimize resource use and reduce losses
Warranty Information
Standard manufacturer warranty applies; please refer to SICK official documentation for details.
Available Now
The SICK RFU610-10705 RFID read/write device is available for immediate purchase, ideal for industrial automation and asset tracking applications.
