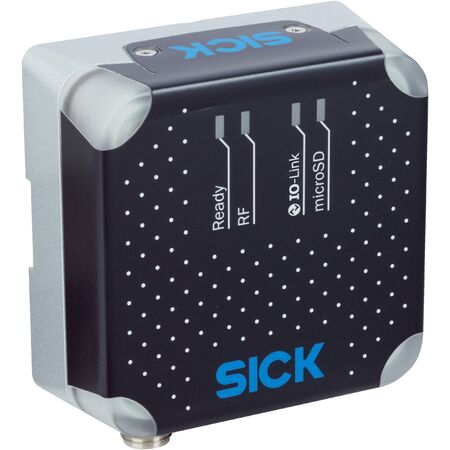

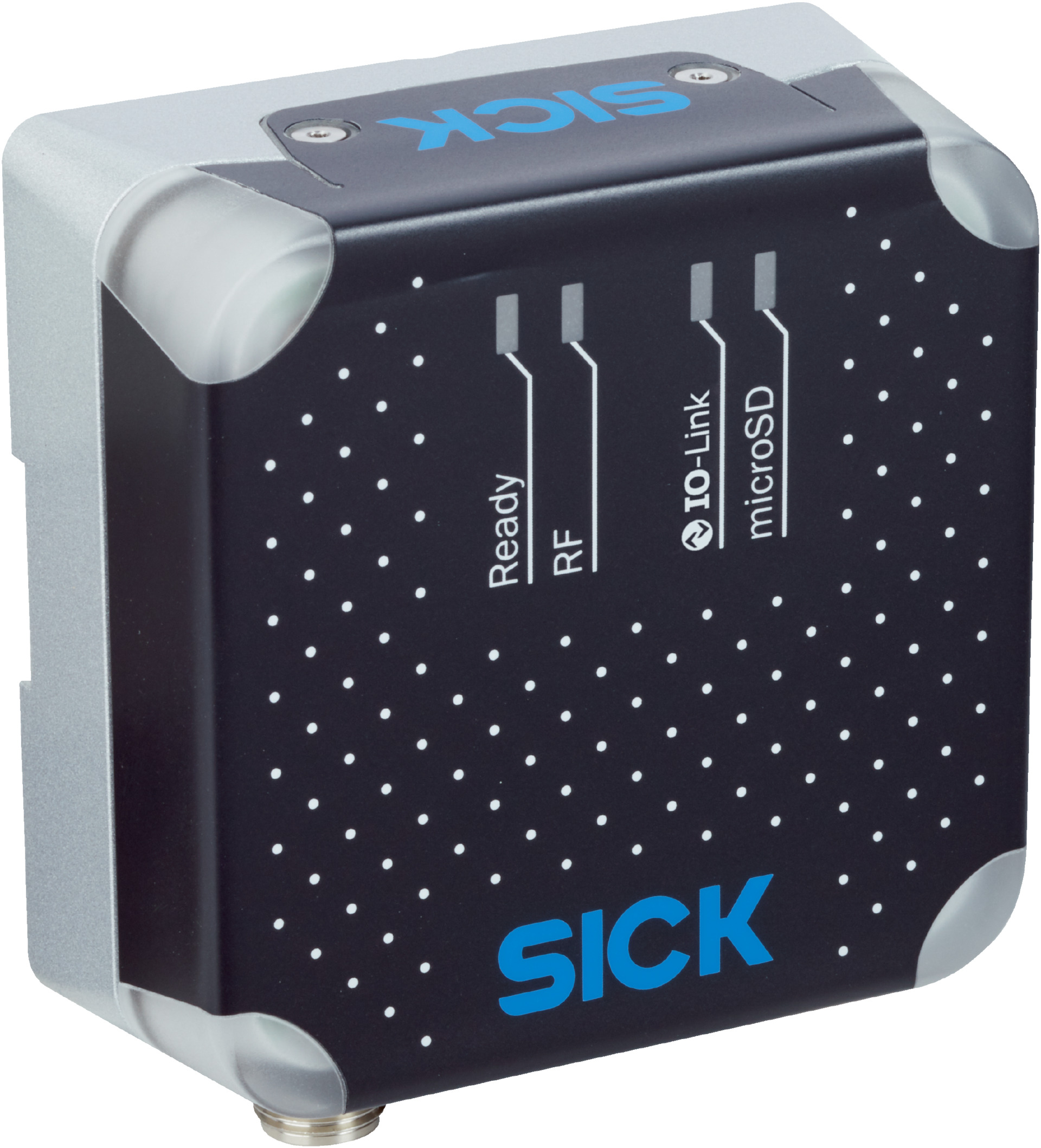

Short Range UHF RFID Reader | Integrated Antenna | IO-Link Compatible | IP67 Rated | by SICK
The Short Range UHF RFID Reader RFU610-10713 is designed for efficient industrial automation, featuring an integrated antenna and supporting EPCglobal UHF Class 1 Generation 2 standards. With an adjustable output power of up to 40 mW and robust IP67 housing, it’s perfect for asset tracking and inventory management in challenging environments, ensuring reliable performance and durability.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Dimensions (H x L x W): 38mm x 92mm x 80mm
- Weight: 0.313 kg
Key Features
- Short range UHF RFID read/write device with integrated antenna
- Frequency band: UHF 860 MHz to 960 MHz, carrier frequency 922.25 MHz to 927.75 MHz
- Output power adjustable up to 40 mW (ERP, 16 dBm)
- Supports EPCglobal UHF Class 1 Generation 2, ISO/IEC 18000-6 C, RAIN RFID standards
- Circular polarization with axial ratio typically 2 dB and front-to-back ratio > 5 dB
- Connection via IO-Link V1.1 with process data, parameterization, and diagnosis functions
- Multiple connectors: 1 x M12 4-pin male, 1 x M8 4-pin socket, 1 x USB 5-pin micro-B
- Power supply 18 V DC to 30 V DC with 6 W power consumption (3 W standby)
- Robust aluminum die cast and PPS plastic housing with IP67 enclosure rating
- Operating temperature range from -25 °C to +50 °C
- EMC compliant with EN 301489-1 V2.1.1 and EN 301489-3 V1.6.1
- Vibration and shock resistant per IEC and EN standards
- Equipped with 4 multi-color LEDs and 4 RGB LEDs for device status and process feedback
Professional Installation Requirements
- Installation by qualified personnel recommended to ensure proper connection and configuration with IO-Link systems.
Applications
- Industrial automation for short-range RFID reading and writing
- Asset tracking and inventory management
- Process control with IO-Link communication
- Environments requiring robust RFID solutions with IP67 protection
Standards & Compliance
- Complies with AS/NZS 60035 – Electrical Equipment in Explosive Atmospheres
Environmental Benefits
- Low power consumption reduces energy usage
- Durable IP67 rated housing extends product life and reduces waste
- Supports efficient asset tracking to minimize resource waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK RFU610-10713 RFID read/write device is available for immediate purchase, ideal for industrial automation and asset tracking applications.
