Shower Light & Exhaust Kit 150mm Inline Fan 10W LED White Ventair

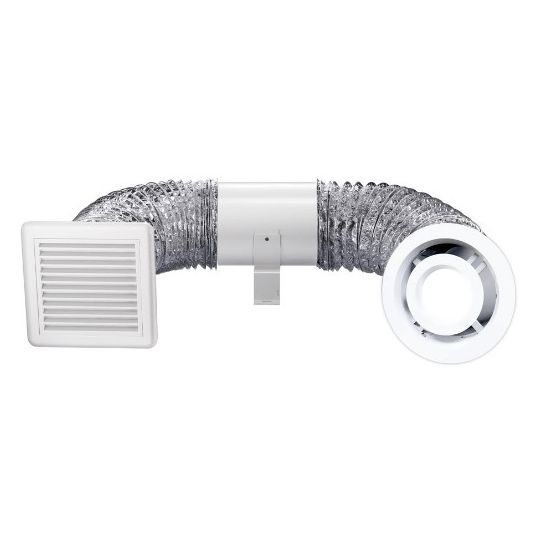

Shower Light & Exhaust Kit 150mm Inline Exhaust Fan & Ducting Kit with White 10W LED Light Fascia by Ventair
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Ventair VEDLKWH Shower Light Kit, 150mm Inline Exhaust Fan with LED Light, Bathroom Exhaust Fan and Light Kit
Technical Specifications
- Model: VEDLKWH
- Colour: White
- Fan Type: 150mm inline exhaust fan
- Motor Power: 25W
- Air Delivery: 210m³/h
- Noise Level: 39dB(A)
- Motor Type: Long-life ball bearing motor
- Light Type: Integrated LED panel
- Light Power: 10W
- Light Output: 855 lumens
- Colour Temperature: Natural white, 4200K
- Rated Voltage: 220–240V AC
- Mains Frequency: 50Hz
- IP Rating: IPX4
- Duct Outlet: 150mm diameter
- Cut-out Size: 158mm round
- Minimum Installation Depth: 200mm
- Included Accessories: External fixed grille and 4m of 150mm aluminium ducting
- Dimensions (H x L x W): 200mm x 210mm x 210mm
- Weight: 2.6 kg
Key Features
- Designed for installation above showers and in wet areas
- Integrated 10W LED centre light
- Energy-saving LED lighting
- Long-life ball bearing motor
- Low operating noise of 39dB(A)
- 150mm inline fan and duct connection
- Includes external fixed grille
- Includes 4m aluminium ducting
- IPX4 moisture protection rating
Professional Installation Requirements
- Installation must be performed by a licensed electrician in accordance with the manufacturer's instructions, AS/NZS 3000 Wiring Rules and applicable bathroom electrical-zone requirements. The ducting must discharge to outdoor air in accordance with applicable building requirements.
Applications
- Bathroom ventilation
- Ensuite ventilation
- Shower-area exhaust ventilation
- Residential wet-area lighting and extraction
- Small commercial bathroom ventilation
Standards & Compliance
- AS/NZS 60335.2.80 for household and similar electric fans, including duct fans
- AS/NZS 3000:2018 Wiring Rules for electrical installation
Environmental Benefits
- Integrated LED lighting uses less energy than conventional bathroom lighting technologies
- Aluminium ducting is recyclable at end of service life
- Long-life ball bearing motor can reduce replacement frequency and associated waste
- Efficient extraction and LED lighting can help reduce ongoing operating energy use
Warranty Information
3-year limited warranty against manufacturing defects, subject to Ventair warranty conditions. Installation by a licensed electrician is required where applicable; commercial-use warranty conditions may differ.
Available Now
Available through authorised Ventair distributors in Australia.
Exhaust Fan Airflow Calculator
This calculator follows relevant Australian standards to ensure reliable and compliant performance. It provides an estimated recommendation based on user inputs.
Users must verify specifications before purchasing.
