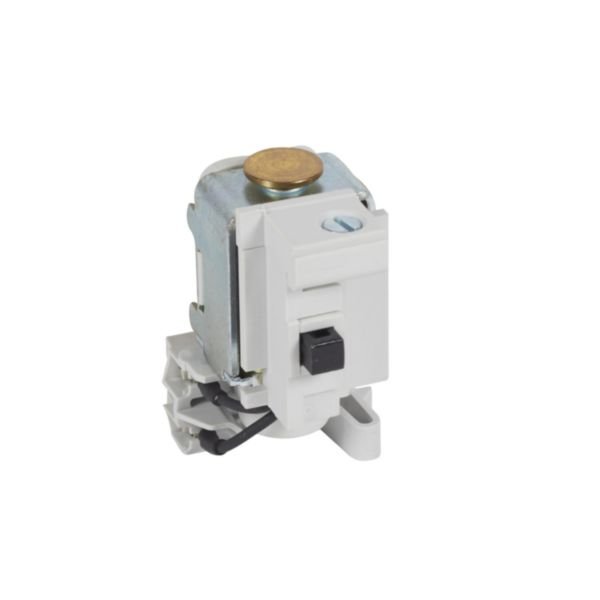

Shunt Releases for DRX/DPX³ | 400 V~ Coil Voltage | 300 VA Shunt Inrush Power | Remote Tripping Capability | @Each of 1 | by Legrand
Shunt releases for DRX/DPX³ are designed for remote tripping of circuit breakers, featuring a 400 V~ coil voltage and a shunt inrush power of 300 VA. Ideal for electrical switchboards and modular circuit breaker systems, these releases enhance safety and efficiency in electrical management, ensuring compliance with AS/NZS 3000 standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Shunt Releases for DRX/DPX³ | 400 V~ Coil Voltage | 300 VA Shunt Inrush Power | Remote Tripping Capability | @Each of 1 | by Legrand
Brand: Legrand
SKU: 422243
Alternatively Known As: Remote Trip Coil, Shunt Trip Release, Circuit Breaker Remote Release
Technical Specifications
- Rated control supply voltage AC 50 Hz: 380-440 V
- Rated control supply voltage AC 60 Hz: 380-440 V
- Rated control supply voltage DC: 380-440 V
- Voltage type for actuating: AC/DC
- Shunt inrush power: 300 VA
- Coil voltage: 400 V~
- Built as switch-off coil: Yes
- Built as switch-on coil: No
- Dimensions (H x L x W): 100mm x 120mm x 50mm
- Weight: 1.5 kg
Key Features
- Allows remote tripping of DPX³ 630 and DPX³ 1600 circuit breakers
- Shunt inrush power of 300 VA
- Coil voltage of 400 V~
- Compatible with AC and DC voltage types for actuating
- Built as switch-off coil, not switch-on coil
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with electrical safety standards and proper integration with circuit breakers.
Applications
- Electrical switchboards and power cabinets
- Modular switches and circuit breakers remote tripping
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Enables safer electrical system management reducing risk of faults and damage
- Supports efficient electrical system control minimizing downtime and energy waste
Warranty Information
Standard Legrand warranty applies, typically 1 year against manufacturing defects.
Available Now
Legrand Shunt Releases for DRX/DPX³ 400 V~ and = are available for immediate purchase, ideal for use in electrical switchboards and modular circuit breaker systems.
