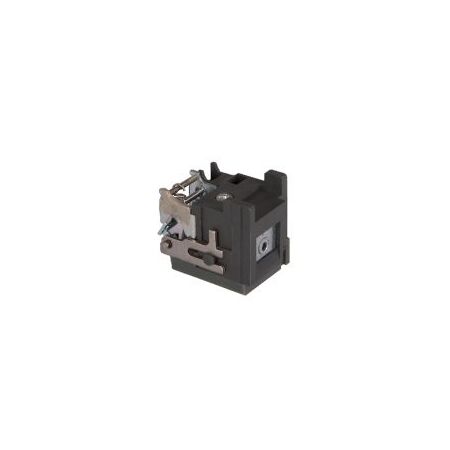

Shunt Trip 220-240V AC to Suit NM8N 250A MCCB Chint

BRAND: CABAC
SKU: 269604
$123.60 List price: $164.80
+ −
30 Days Return Electricians Unlock Trade Access
Chint shunt trip release features 220-240V AC coil to suit NM8N 250A frame MCCB. Ideal for remote tripping from a control or emergency stop circuit.

Alternatively Known As: CHINT NM8N Shunt Release, MCCB Shunt Trip, Remote Trip Coil, SHT22-M8 AC220-240V

Technical Specifications
  • Accessory Type: Shunt release
  • Model: SHT22-M8 AC220-240V
  • Control Voltage: 220-240V AC, 50/60 Hz
  • Compatible MCCB Frame: NM8N 250A frame
  • Compatible Frames: NM8N 250A, 400A and 630A frame size
  • Operating Voltage Range: 70-110% of rated control voltage
  • Power Loss: 2.2 W at 220-240V AC
  • Trip Operation: Pulse or continuous energisation
  • Response Time: Greater than 20 ms and less than 60 ms
  • Product Code: 269604
  • Dimensions (H x L x W): 80mm x 50mm x 40mm
  • Weight: 0.15 kg
Key Features
  • Enables remote electrical tripping of a compatible NM8N MCCB
  • Suitable for emergency stop, fire protection and control-system circuits
  • Designed for internal installation within the NM8N MCCB
  • 220-240V AC coil suits standard Australian control supplies
  • Compatible with NM8N 250A frame MCCBs and common 400A/630A frame variants
  • Can be energised for extended periods
  • Compact accessory with dedicated C1 and C2 control terminals
Professional Installation Requirements
  • Installation and connection should be performed by a licensed electrician with the MCCB isolated, in accordance with the manufacturer's instructions and AS/NZS 3000. Verify compatibility with the exact NM8N breaker configuration before installation.
Applications
  • Remote tripping of NM8N 250A MCCBs
  • Emergency stop and emergency isolation systems
  • Fire alarm and fire protection control circuits
  • Industrial and commercial switchboards
  • Building management and automation systems
  • Generator, motor-control and process-control panels
Standards & Compliance
  • AS/NZS 3000:2018 Wiring Rules for installation and control-circuit wiring
  • AS/NZS 60947.2 for low-voltage circuit-breakers and associated MCCB applications
Environmental Benefits
  • Compact replacement accessory extends the service life of an existing NM8N MCCB and can reduce equipment replacement waste
  • Low operating power loss of approximately 2.2 W at rated AC voltage
  • Durable electrical and mechanical construction supports longer replacement intervals
Warranty Information

CHINT warranty policy for other low-voltage apparatus provides 27 months from the date of manufacture against defects in materials and workmanship when purchased through authorised sales channels; contract terms may vary.

Available Now

Available through authorised CHINT distributors in Australia.
