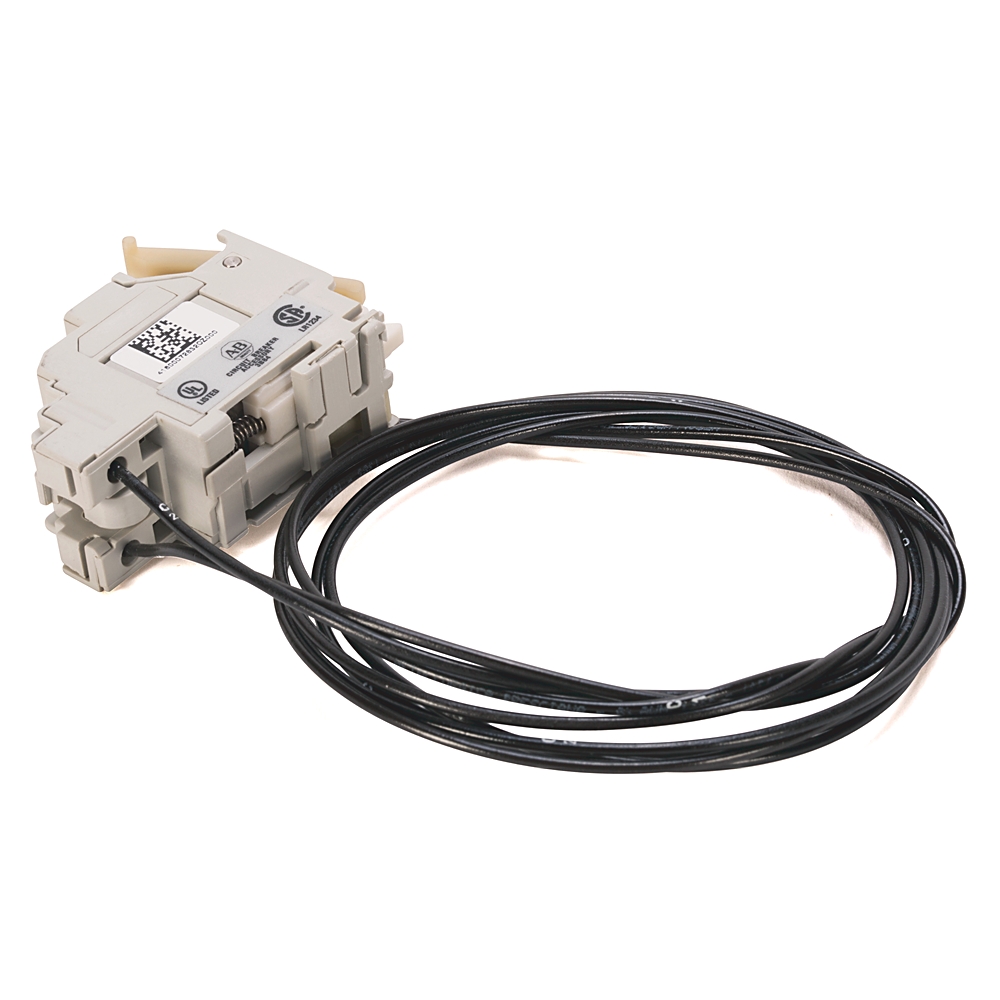

Shunt Trip 24-30VAC/DC | Compatible with G/H/I/J Frames | Remote Tripping Capability | by Allen-Bradley
The Shunt Trip 24-30VAC/DC is designed for remote tripping of circuit breakers, compatible with G, H, I, and J frame sizes. Ideal for industrial electrical control panels and motor control centers, this coil enhances safety by enabling quick disconnection of electrical circuits, preventing damage and reducing energy waste.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Remote Trip Coil, Circuit Breaker Shunt Trip, Shunt Release Coil
Technical Specifications
- Operating Voltage: 24-30VAC/DC
- Compatible Frame Sizes: G, H, I, J
- Function: Remote tripping of circuit breakers
- Coil Type: Shunt trip coil
- Dimensions (H x L x W): 80mm x 40mm x 50mm
- Weight: 0.5 kg
Key Features
- Operates on 24-30VAC/DC voltage
- Compatible with G, H, I, and J frame circuit breakers
- Provides remote tripping capability for circuit breakers
Professional Installation Requirements
- Installation should be performed by a licensed electrician to ensure compliance with electrical safety standards.
Applications
- Industrial electrical control panels
- Motor control centers
- Circuit breaker remote tripping applications
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Enables quick disconnection of electrical circuits to prevent damage and reduce energy waste.
Warranty Information
1 year limited warranty against manufacturing defects.
Available Now
The Allen-Bradley Shunt Trip 24-30VAC/DC G/H/I/J Frame is available now for immediate purchase. Ideal for industrial and commercial electrical control applications.
