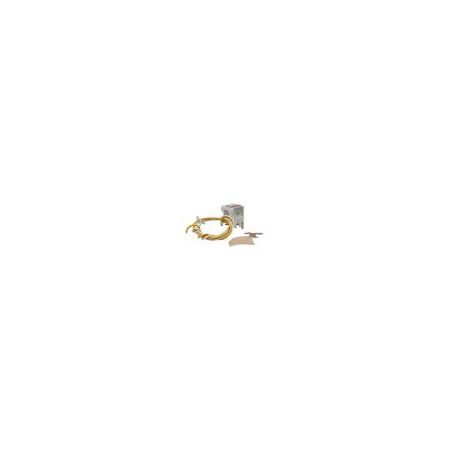

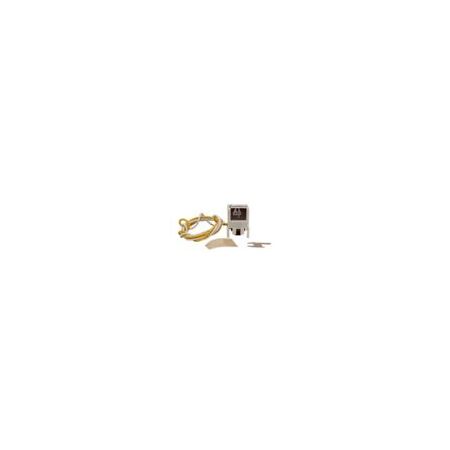

Shunt Trip 24V DC for F Frame MCCB | Pigtail Leads | Right Mounting | UL Listed by Eaton
Enhance electrical safety with the Shunt Trip 24V DC designed for F Frame MCCB, featuring pigtail leads for easy connection and right mounting. Ideal for industrial and commercial electrical panels, it ensures compliance with safety standards and provides remote trip capability.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Shunt Trip 24V DC for F Frame MCCB | Pigtail Leads | Right Mounting | UL Listed by Eaton
Brand: Eaton
SKU: 1490D71G11
Alternatively Known As: MCCB Shunt Trip, Circuit Breaker Remote Trip, F Frame Shunt Trip Accessory
Technical Specifications
- Voltage rating: 12-24 V DC
- Connection type: Pigtail leads
- Compatible with type F-frame HMCP breakers
- Frame size: Frame F
- Series: Series C
- Mounting method: Right
- UL Listed certification
- Dimensions (H x L x W): 74mm x 140mm x 81mm
- Weight: 0.16 kg
Key Features
- Shunt trip factory installation kit
- Voltage rating: 12-24 V DC
- Pigtail leads for easy connection
- Designed for type F-frame HMCP breakers, Frame F, Series C
- Right mounting method
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with electrical safety standards.
Applications
- Electrical safety enhancement for type F-frame HMCP molded case circuit breakers
- Industrial and commercial electrical panels requiring remote trip capability
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Enhances electrical safety reducing risk of electrical faults and fire hazards
Warranty Information
Standard Eaton warranty applies; typically 1 year against manufacturing defects.
Available Now
The Eaton Shunt Trip 24V DC for F Frame MCCB is available for immediate purchase, ideal for enhancing safety in industrial and commercial electrical installations.
